18 E-Series Installation Manual
i. Locate the front cover clip-on over the front of the display - see
page 20
.
ii. Check that the buttons have passed through the cover and are free to operate.
It is suggested that you use your thumb or forefinger in a circular motion to do
this.
5. Attach the display unit into the trunnion bracket, adjusting the unit to the required
angle for clear vision.
6. Tighten the trunnion knobs.

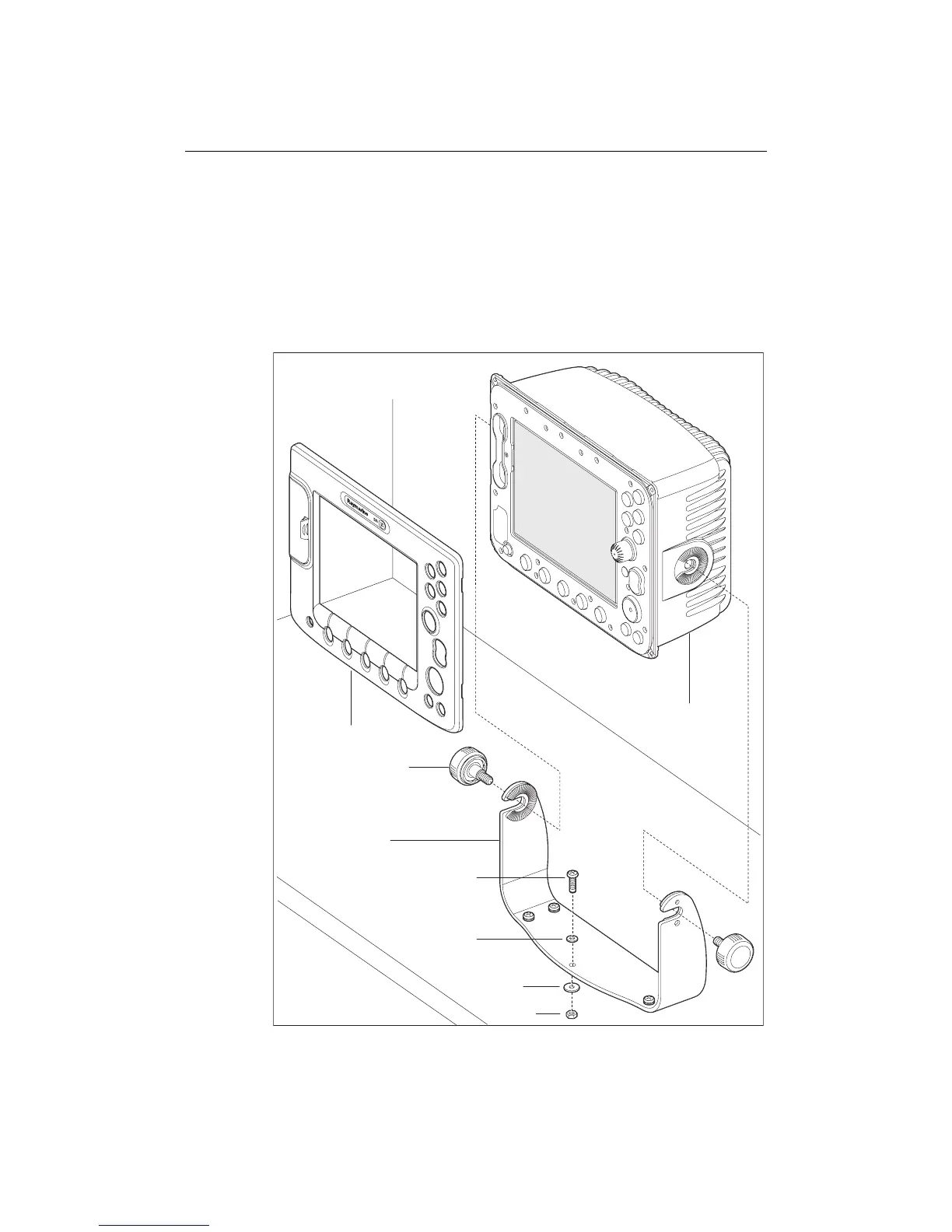

D7211_1
E-series display unit
Trunnion knob (x 2)
Trunnion bracket
Bolt - M6 x 50mm
(x 5)
Front cover clip-on
Trunnion mounted display
Button
washer (x5)
Washer
(x5)
Nyloc (x5)
