36 E-Series Installation Manual
3. With RADAR SET UP highlighted, use the trackpad (right) to display the RADAR SET
UP menu.
4. Use the trackpad (up/down) to highlight and then the trackpad (right) to select
BEARING ALIGNMENT. The menu is removed from the screen and the Bearing
Alignment soft key is displayed.
5. Press the BEARING ALIGNMENT softkey.
6. Proceed as follows:
• If the boat is moored - use the rotary control to place the selected target
under the EBL.
• If the boat is under way - use the rotary control to place the selected target
under the SHM.
7. Press
OK. The picture updates as the bearing alignment is adjusted.
8. To exit the menu, press OK or CANCEL.
4.6 How do I check the GPS?
The GPS is used to position your boat on the chart. You can set up your Global
Positioning System (GPS) and check its status using the GPS status icons and the GPS
Status page of the Setup menu.
To access the GPS Status page:
1. Press MENU. The Setup menu is displayed.

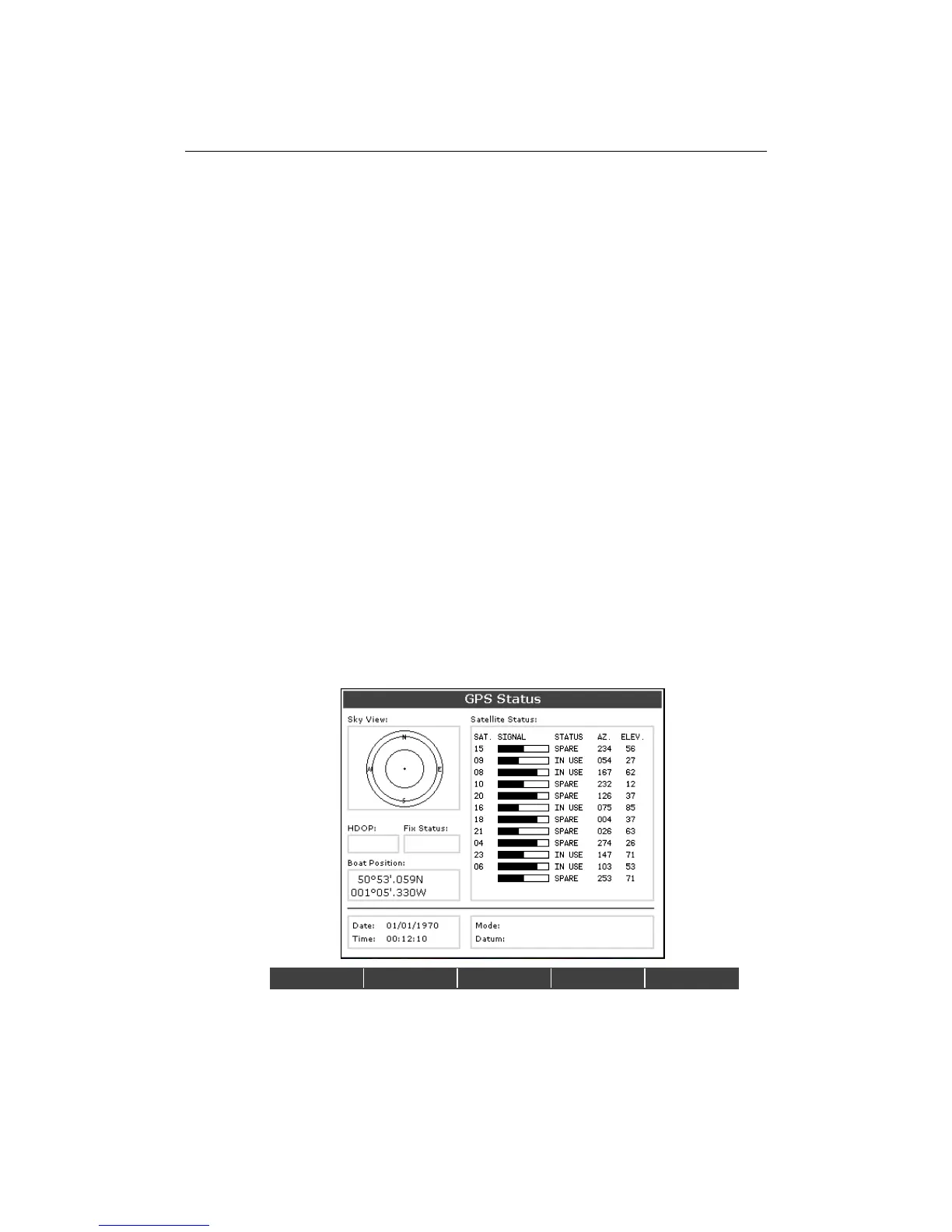

2. Highlight and then select GPS Status. The GPS Status dialog box is displayed e.g.
DIFF SET UP OTHER SET UP RESTART GPS
DIFF GPS
ON OFF
0
0
0
0
0
0
0
0
0
0
0
0
FIX STATUS
HDOP
122
00001.0
SD-FIX
D6809_2
SATELLITE DIFFERENTIAL
WGS 1984
To Next Page
