Chapter 3: Installation 23
How are the cables connected to the display?
The cable connections are located on the back of the display unit. All cables can be
connected prior to mounting the unit on the trunnion bracket.
CAUTION: Do not remove the SeaTalk High Speed blanking plug from
the rear of the display until such time as you are ready to connect the
cable. Failure to adhere to this may result in the ingress of water and
permanent damage to the display.
Note:
For details of what is connected to each of these cables please refer to the diagrams on
page 12, page 14 and page 15.

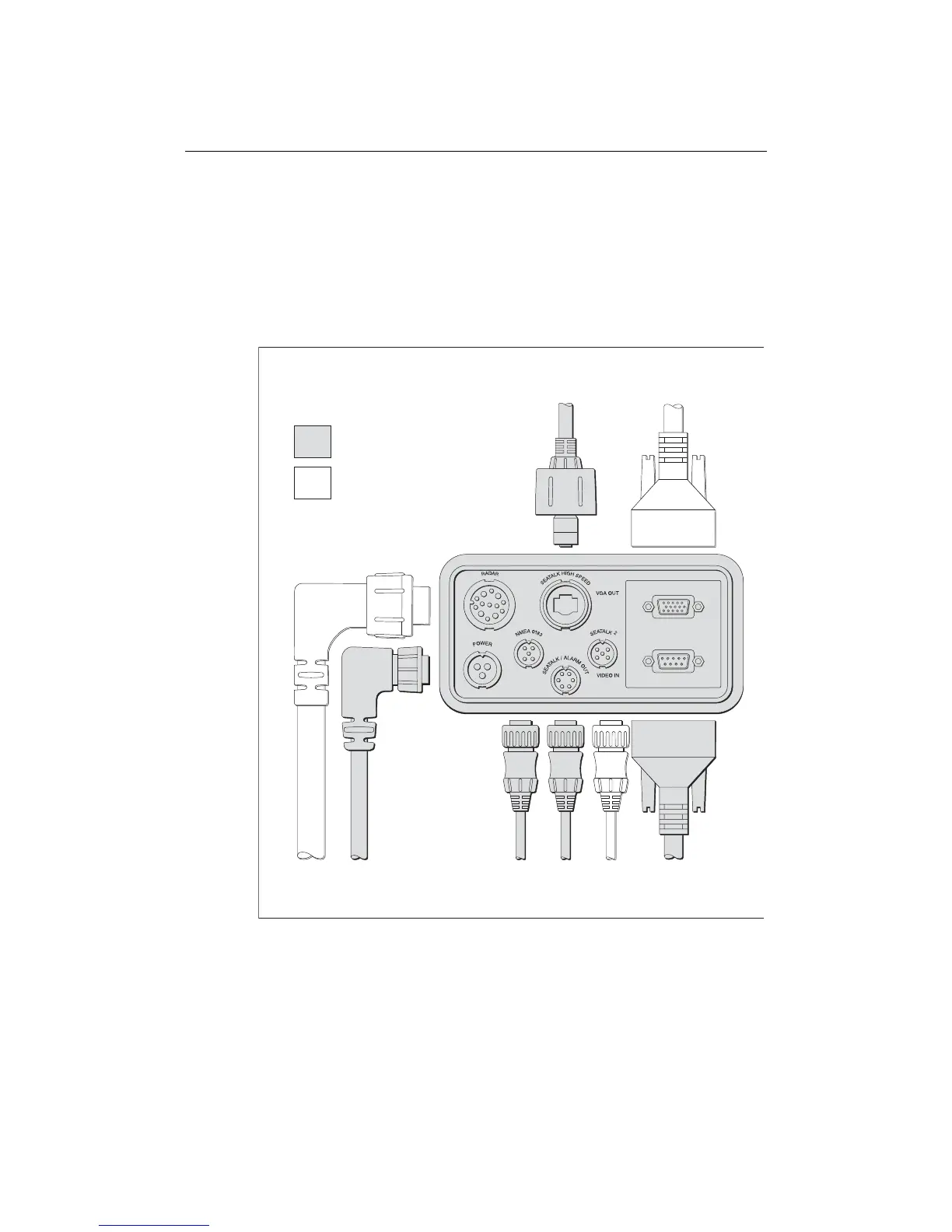

D7210-1
VGA out
SeaTalk
HS
Supplied
Not supplied/accessory
Radar
Power
NMEA SeaTalk/
Alarm out
SeaTalk
2
Video in
Cable connections
