Chapter 3: Installation 21
How do I remove the front cover clip-on?
To remove the clip- on front cover:
1. To prevent damaging your dash or placing undue strain on the trunnion bracket,
remove the unit from its mounting before proceeding. If you have flush mounted
your Display and cannot readily gain access to the rear of the unit, protect the dash
and proceed with caution.

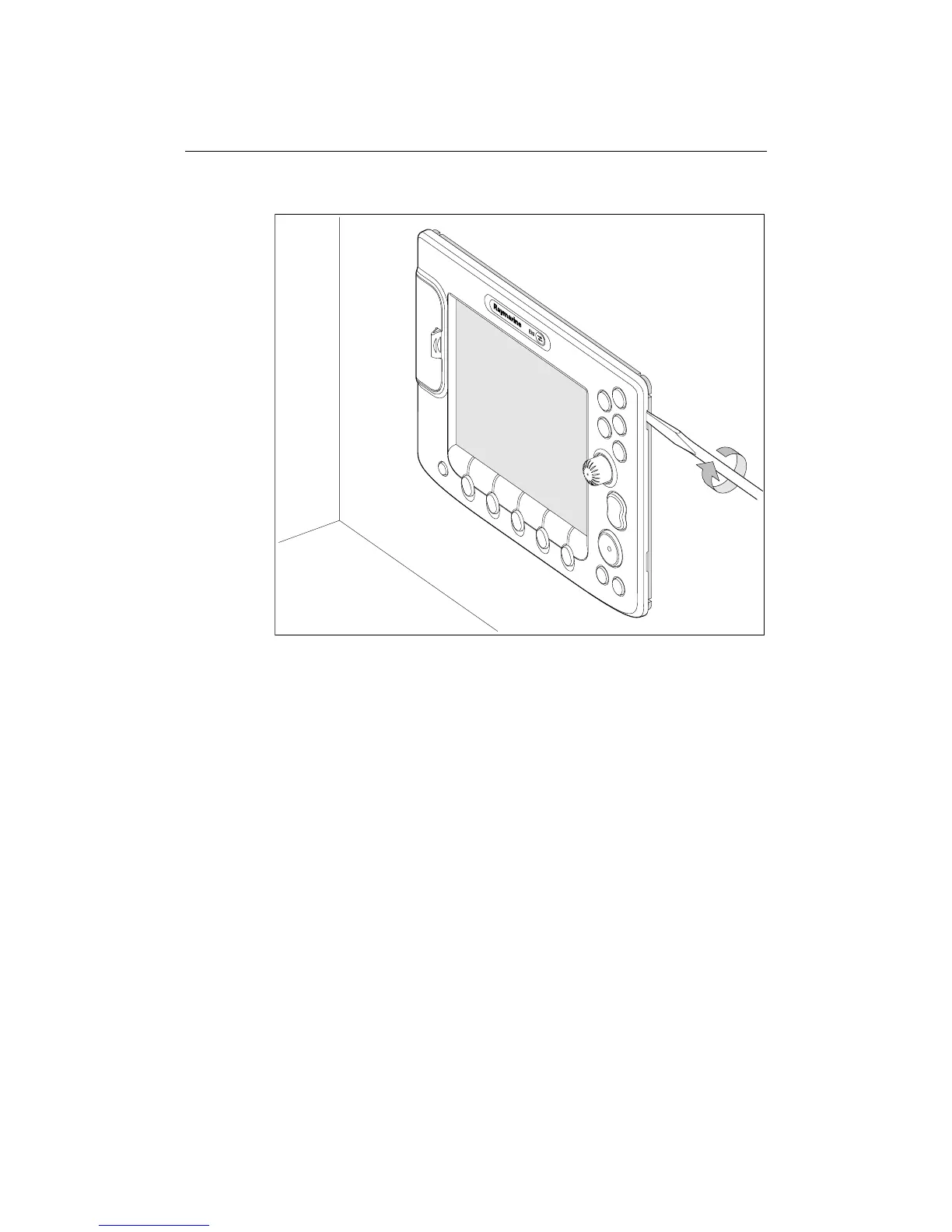

2. Using a flat-bladed screwdriver placed in the aperture at the top right of the front
cover clip-on, gently twist it to release the top clips.
3. Working from this corner, free the clips along the top edge of the display by hand,
then work towards the bottom edge. Taking care to ensure that the control buttons
pass through the clip-on. DO NOT lever along the top edge.
4. Carefully free the locating clips at the bottom of the clip-on by lowering it away
from the unit - DO NOT USE A SCREWDRIVER FOR THIS AS IT WILL DAMAGE THE
CLIPS.
5. Remove the clip-on front cover from the display.
D7214_1
