34 E-Series Installation Manual
1. Press OK to select the highlighted page set.
2. Press PAGE. The currently selected page set is represented on the soft keys.
3. Press the corresponding soft key to display a full window radar application.
4. The scanner warm-up countdown commences. This will take approximately 70 sec-
onds.
Note:
If your scanner is incompatible, a message is displayed. If this is the case, you will be
unable to proceed further with testing and aligning the radar. Refer to Important Informa-
tion - Radar Scanners at the front of this handbook.
Radar transmission check
With a radar application active, check the transmission to the scanner as follows:
1. Press the RANGE button and ensure that the radar range adjusts accordingly.
2. Check that all the following information is displayed:
• In the status bar - the range, orientation, motion mode and range ring spacing
• In the data bar - a turning radar status icon and vessel position data.
Radar alignment checks
You should check the bearing and display timing alignment to ensure that an accurate
picture is shown.

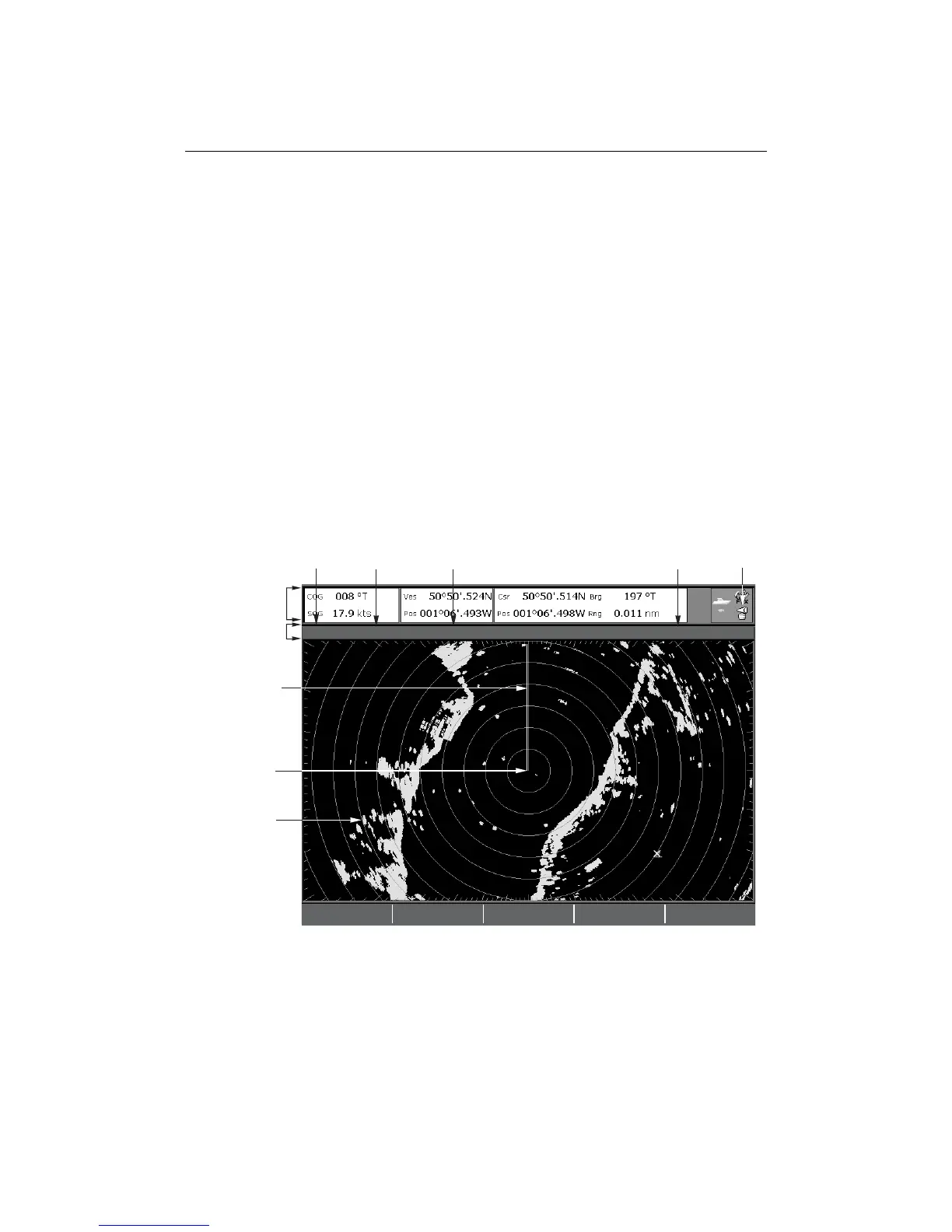

3nm
Head-Up Relative Motion Rings ½nm
VRM/EBL… GAIN…
PRESENTATION…
TARGET
TRACKING…
TARGETS
DISPLAY…
D6803-2
Orientation
Data bar
Ship's
heading
marker
Radar status
icon
Range
ring
Boat's
position
Range
Motion mode
Range ring
spacing
Status bar
