m,

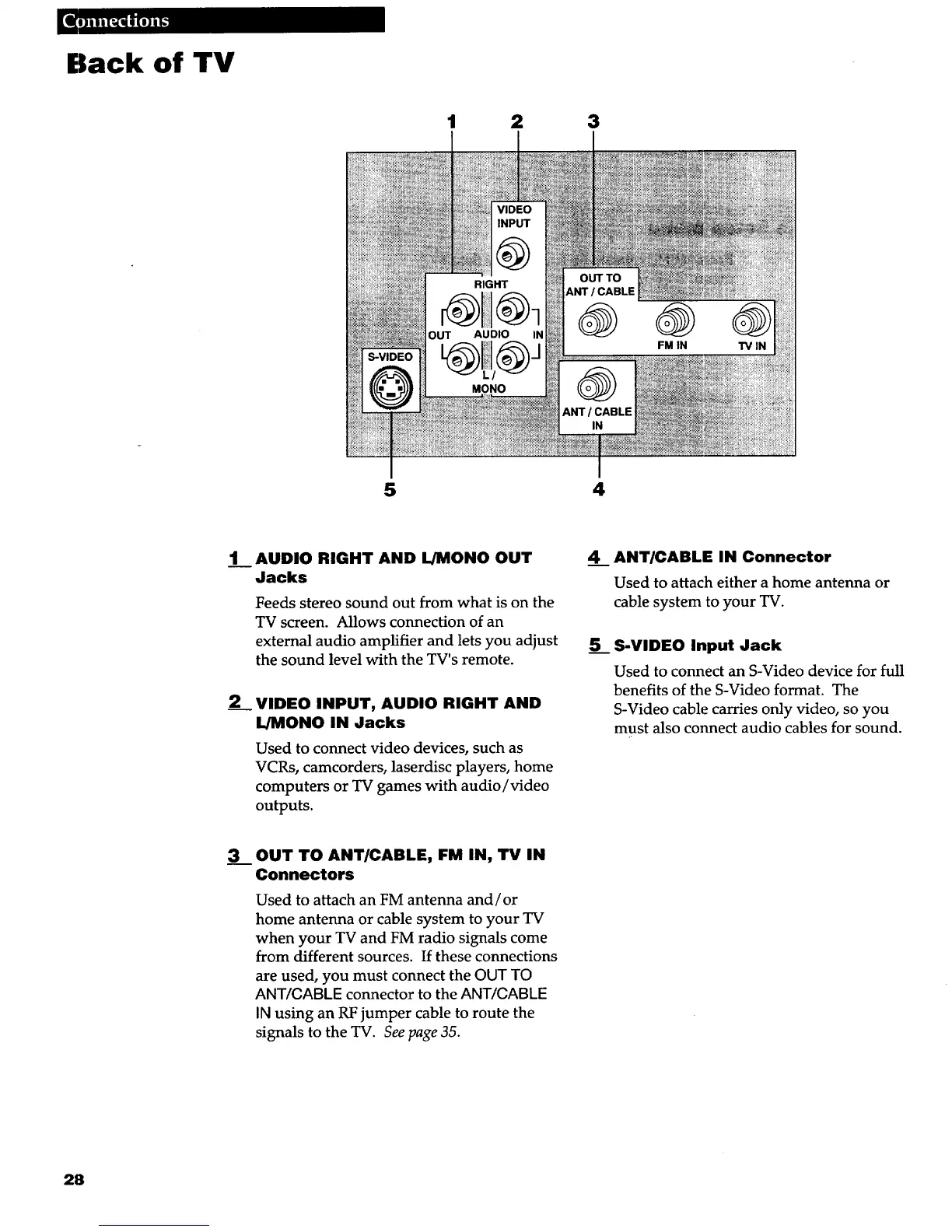

Back of TV
1 2 3
5
4
1
AUDIO RIGHT AND L/MONO OUT
Jacks
Feeds stereo sound out from what is on the
TV screen. Allows connection of an
external audio amplifier and lets you adjust
the sound level with the TV's remote.
2____VIDEO INPUT, AUDIO RIGHT AND
L/MONO IN Jacks
Used to connect video devices, such as
VCRs, camcorders, laserdisc players, home
computers or TV games with audio/video
outputs.
4___ANTICABLE IN Connector
Used to attach either a home antenna or
cable system to your TV.
5___S-VIDEO Input Jack
Used to connect an S-Video device for full
benefits of the S-Video format. The
S-Video cable carries only video, so you
must also connect audio cables for sound.
3 OUT TO ANT/CABLE, FM IN, TV IN
Connectors
Used to attach an FM antenna and/or
home antenna or cable system to your TV
when your TV and FM radio signals come
from different sources. If these connections
are used, you must connect the OUT TO
ANT/GABLE connector to the ANT/GABLE
IN using an RF jumper cable to route the
signals to the TV. See page 35.
28
