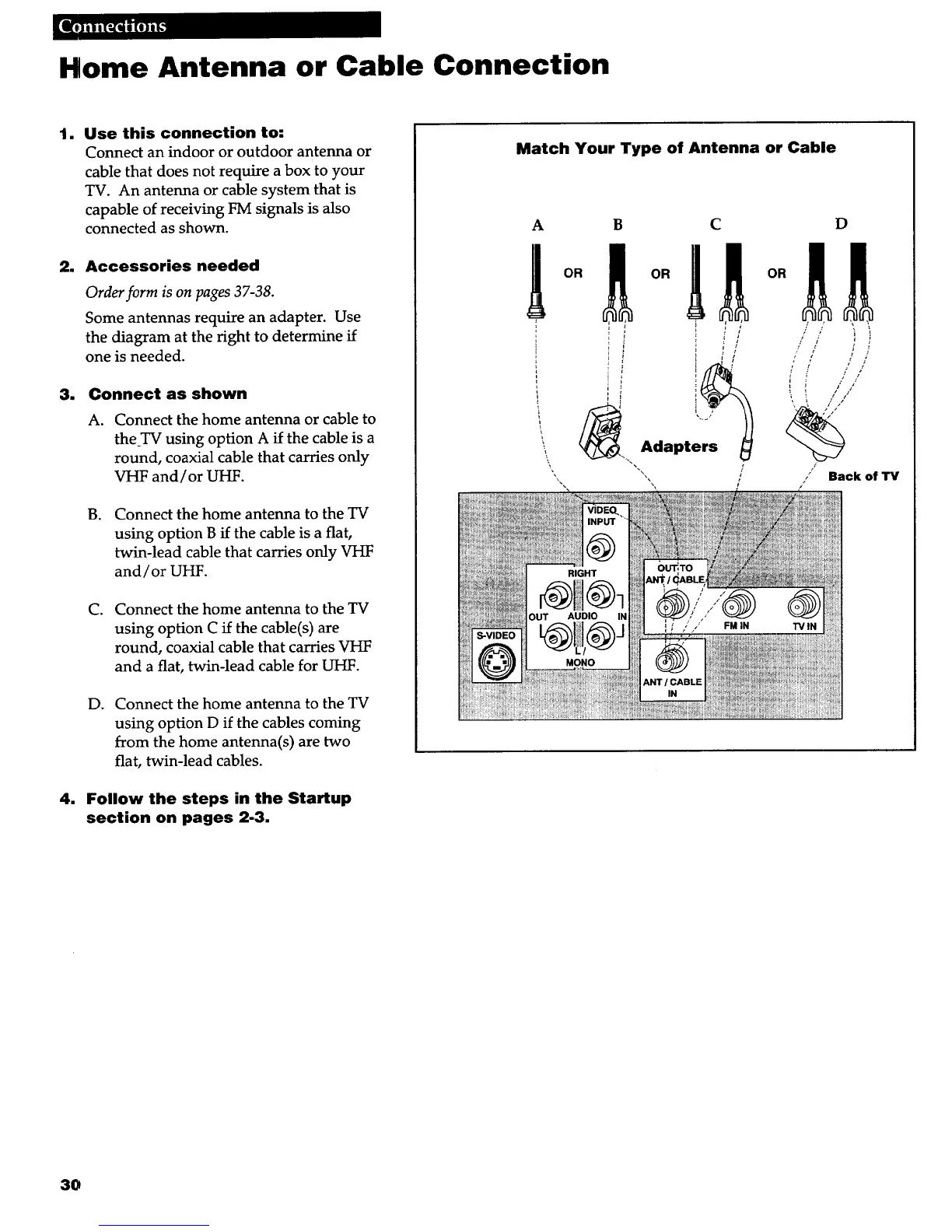

Home Antenna or Cable Connection
1 Use this connection to:
Connect an indoor or outdoor antenna or
cable that does not require a box to your
TV. An antenna or cable system that is
capable of receiving FM signals is also
connected as shown.
1
Accessories needed
Order form is on pages 37-38.
Some antennas require an adapter. Use
the diagram at the right to determine if
one is needed.
3. Connect as shown
a. Connect the home antenna or cable to
the_TV using option A if the cable is a
round, coaxial cable that carries only
VHF and/or UHF.
B. Connect the home antenna to the TV
using option B if the cable is a flat,
twin-lead cable that carries only VHF
and / or UHF.
C. Connect the home antenna to the TV
using option C if the cable(s) are
round, coaxial cable that carries VHF
and a flat, twin-lead cable for UHF.
W.
Connect the home antenna to the TV
using option D if the cables coming
from the home antenna(s) are two
flat, twin-lead cables.
4. Follow the steps in the Startup
section on pages 2-3.
Match Your Type of Antenna or Cable
B C D
OR
: /
:/ ,,::
; ///
/ Back of _
3O
