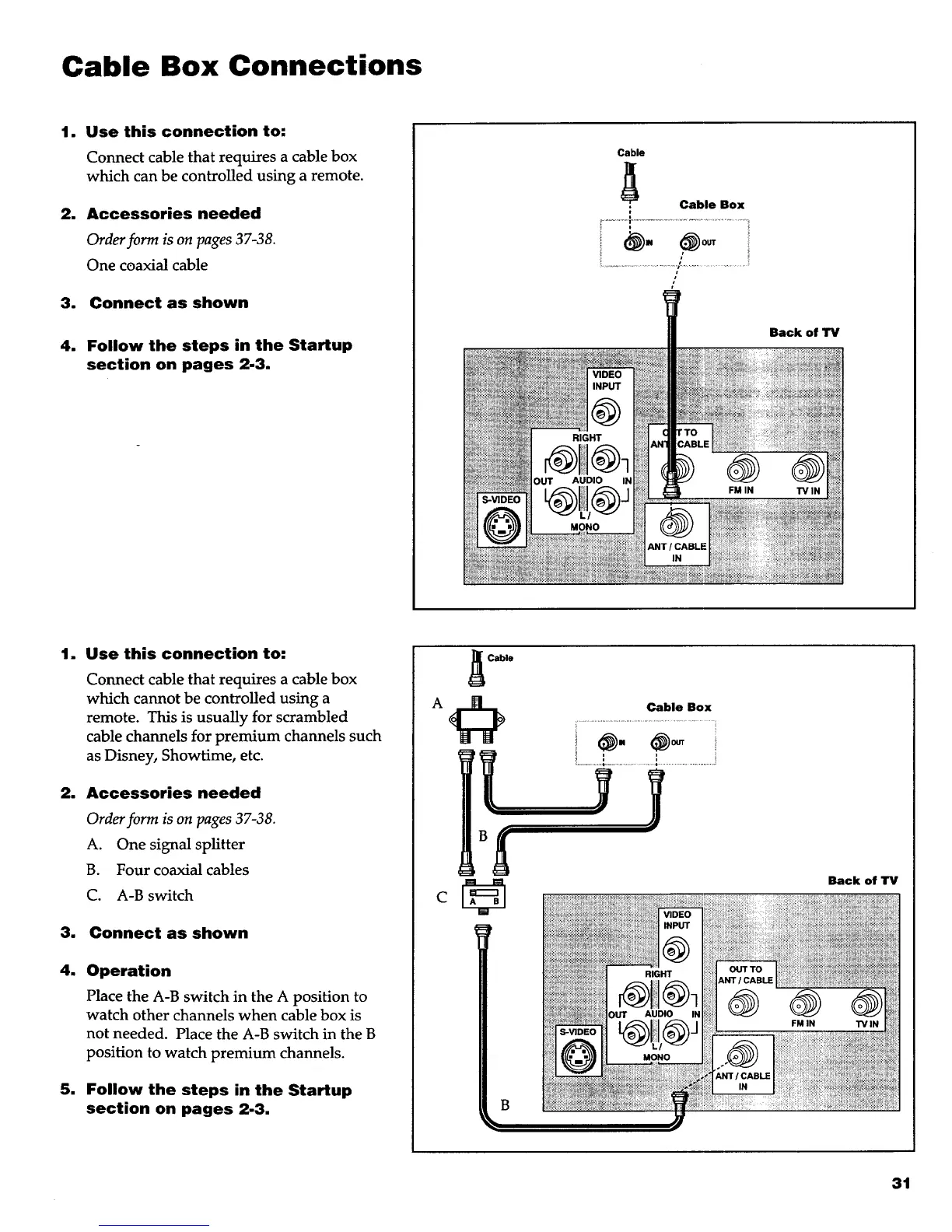

Cable Box Connections
.
1
Use this connection to:
Connect cable that requires a cable box
which can be controlled using a remote.
Accessories needed
Order form is on pages 37-38.
One coaxial cable
3. Connect as shown
4. Follow the steps in the Startup
section on pages 2-3.
Cable
Cable Box
: i
1
Back of TV
1. Use this connection to:
Connect cable that requires a cable box
which cannot be controlled using a
remote. This is usually for scrambled
cable channels for premium channels such
as Disney, Showtime, etc.
. Accessories needed
Order form is on pages 37-38.
A. One signal splitter
B. Four coaxial cables
C. A-B switch
3. Connect as shown
4. Operation
Place the A-B switch in the A position to
watch other channels when cable box is
not needed. Place the A-B switch in the B
position to watch premium channels.
5. Follow the steps in the Startup
section on pages 2-3.
A
C
_ Cable
Q
Cable Box
B
Back of TV
31
