RCA F20635 - VCR Adv. Connection; VCR Basic Connection

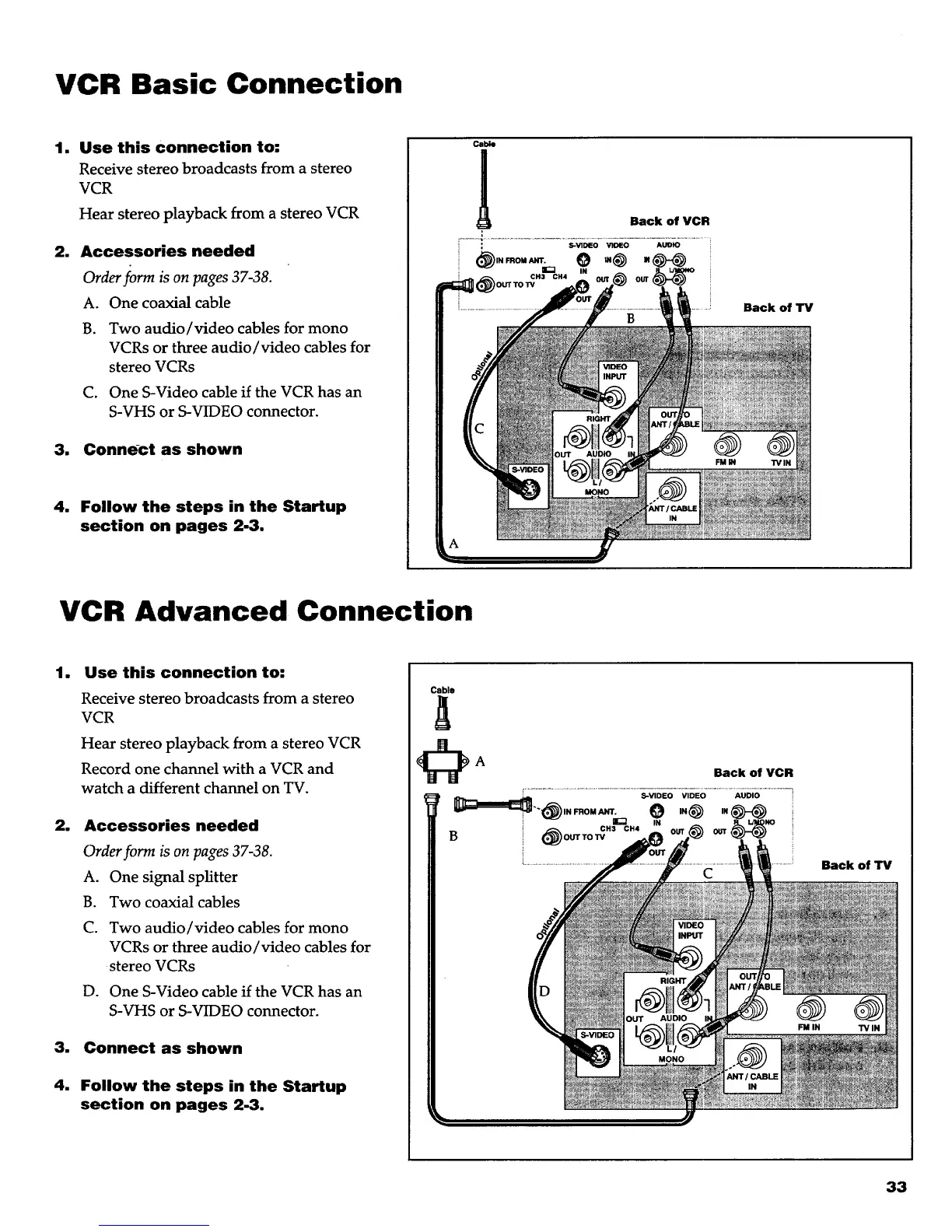

VCR Basic Connection
1
.
Use this connection to:
Receive stereo broadcasts from a stereo
VCR
Hear stereo playback from a stereo VCR
Accessories needed
Order form is on pages 37-38.
A. One coaxial cable
B. Two audio/video cables for mono
VCRs or three audio/video cables for
stereo VCRs
C. One S-Video cable if the VCR has an
S-VHS or S-VIDEO connector.
3. Connect as shown
4. Follow the steps in the Startup
section on pages 2-3.
Cable
Back of VCR
Back of TV
VCR Advanced Connection
lm Use this connection to:
Receive stereo broadcasts from a stereo
VCR
Hear stereo playback from a stereo VCR
Record one channel with a VCR and
watch a different channel on TV.
. Accessories needed
Orderform is on pages 37-38.
A. One signal splitter
B. Two coaxial cables
C. Two audio/video cables for mono
VCRs or three audio/video cables for
stereo VCRs
D. One S-Video cable if the VCR has an
S-VHS or S-VIDEO connector.
3. Connect as shown
4. Follow the steps in the Startup
section on pages 2-3.
Cable
Back of TV
33
