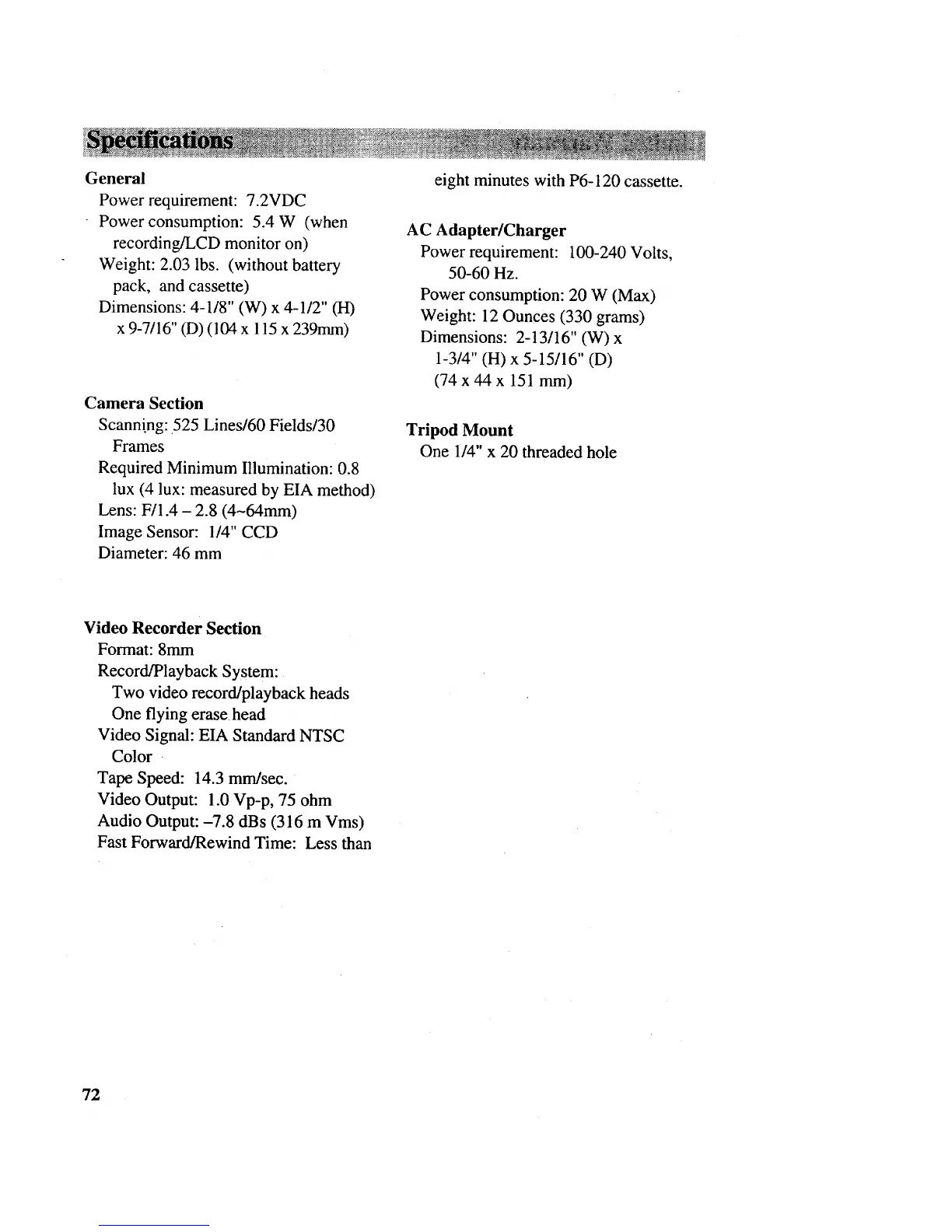

General
Powerrequirement:7.2VDC
Powerconsumption:5.4W (when
recording/LCDmonitoron)
Weight:2.03lbs. (withoutbattery
pack, andcassette)
Dimensions:4-1/8"(W) x 4-1/2"(H)
x9-7/16"(D)(104x 115x 239mm)
Camera Section
Scanni.ng: 525 Lines/60 Fields/30
Frames
Required Minimum Illumination: 0.8
lux (4 lux: measured by EIA method)
Lens: F/1.4 - 2.8 (4-64mm)
Image Sensor: 1/4" CCD
Diameter: 46 mm
eight minutes with P6-120 cassette.
AC Adapter/Charger
Power requirement: 100-240 Volts,
50-60 Hz.
Power consumption: 20 W (Max)
Weight: 12 Ounces (330 grams)
Dimensions: 2-13/16" (W) x
1-3/4" (H) x 5-15/16" (D)
(74 x 44 x 151 mm)
Tripod Mount
One 1/4" x 20 threaded hole
Video Recorder Section
Format: 8mm
Record/Playback System:
Two video record/playback heads
One flying erase head
Video Signal: EIA Standard NTSC
Color
Tape Speed: 14.3 mm/sec.
Video Output: 1.0 Vp-p, 75 ohm
Audio Output: -7.8 dBs (316 m Vms)
Fast Forward/Rewind Time: Less than
72
