Reboot RBM2000P - Aluminum MIG Welding Setup; Connecting MIG Gun and Ground Clamp; Installing Wire Spool and Setting Drive Roll; Gas Welding with U-type Wire Feed Wheels

Version Number: RBM2000P-20210517A1
18

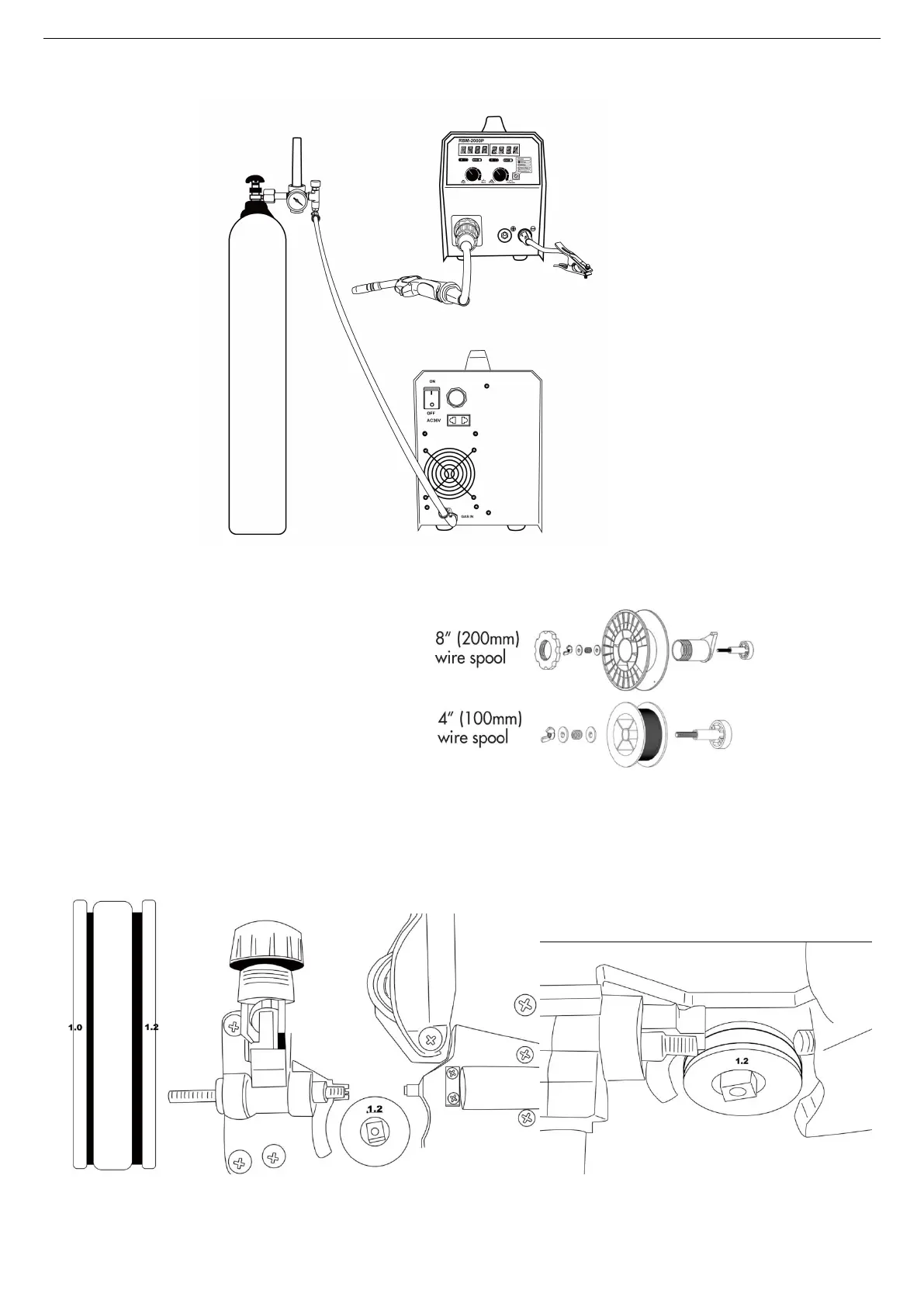

3、Connect MIG gun and ground clamp.
Solid aluminum wire welding
4、Install wire spool
0.030”(0.8mm)/0.040”(1.0mm)diameter
8”(200mm 5kg)wire spool
4”(100mm 1kg)wire spool
5、Set drive roll
Face the side marked 1.2 away from the machine.
Remarks: 1. There are two grooves on one wire feed wheel, one side is 1.0mm and the other side is 1.2mm to
match the corresponding wire diameter.
2. Gas welding requires the use of U-type wire feed wheels, which are suitable for aluminum welding
wire, and solid wire welding need to use Argon gas .
