PELLET STOVES Chapter 3
red
INSTALLATION AND USE MANUAL
page 24
Installation and assembly Technical service - Rights reserved - Reproduction prohibited
3.3. LATERAL CLADDING ASSEMBLY
Assembly of profiles to insert steel sides (PRIMULA)
Remove, on the upper part, the cast iron top (A).
Take the side (B) (pay attention that it enters in the part under the
plugs (F) and secure it to the upper sheet metal of the stove with the
bracket (C) and the four screws (D). Two screws secure the bracket
(C) on the stove and two secure the bracket (C) to the side (B).
Repeat the same operation for both sides. Reposition the cast iron top.
A
B
C
D
B

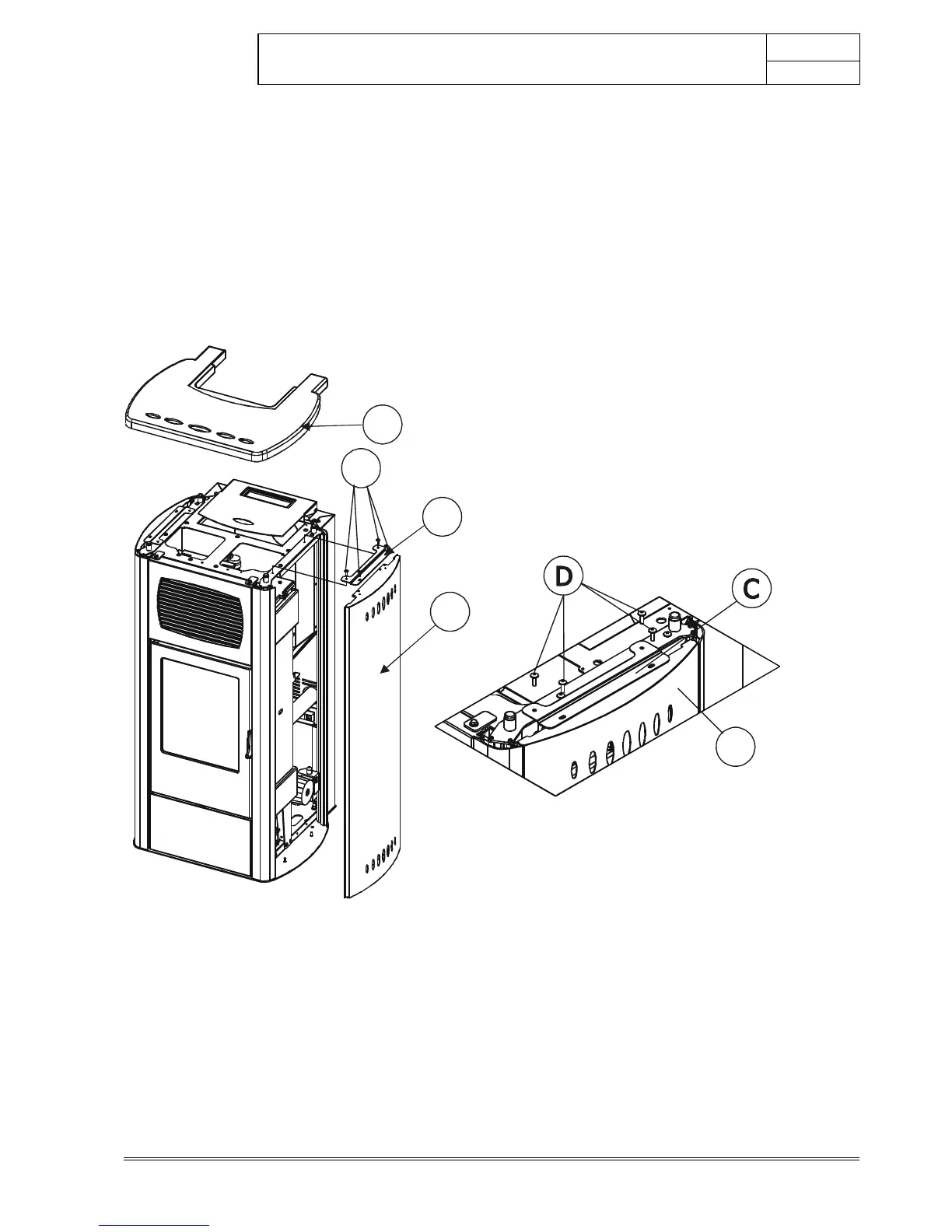

Figure 4 - PRIMULA stove sides
