RED PRIMULA - Heating Installation in Combination with a Storage Tank

PELLET STOVES Chapter 3
red
INSTALLATION AND USE MANUAL
page 34
Installation and assembly Technical service - Rights reserved - Reproduction prohibited
R
230V 50HZ
S
VS
P
VE
VT
T
C
PS
BA
PR
PR
SE
R
A
R
A
R
A
R
A
Vsc
Flt
Add
A
RP
V
V
M
HOT DOMESTIC
WATER OUTLET
PRESSURE SAFETY
DISCHARGE
SYSTEM REFILL
SYSTEM DELIVERY
SYSTEM RETURN
COLD DOMESTIC
WATER INLET
P Pump F Flow switch PS Solar panels
3.6.4. Heating installation in combination with a storage tank
PERFORMANCE:
HEATING WITH STORAGE SYSTEM
PRODUCTION OF DOMESTIC HOT
WATER WITH STORAGE SYSTEM
CONFIGURATION: PRIMULA/ORCHIDEA - GARDENIA/MARGHERITA WITHOUT DOMESTIC HOT WATER KIT COMBINED WITH STORAGE SYSTEM WITH BOILER AND SOLAR
PANELS

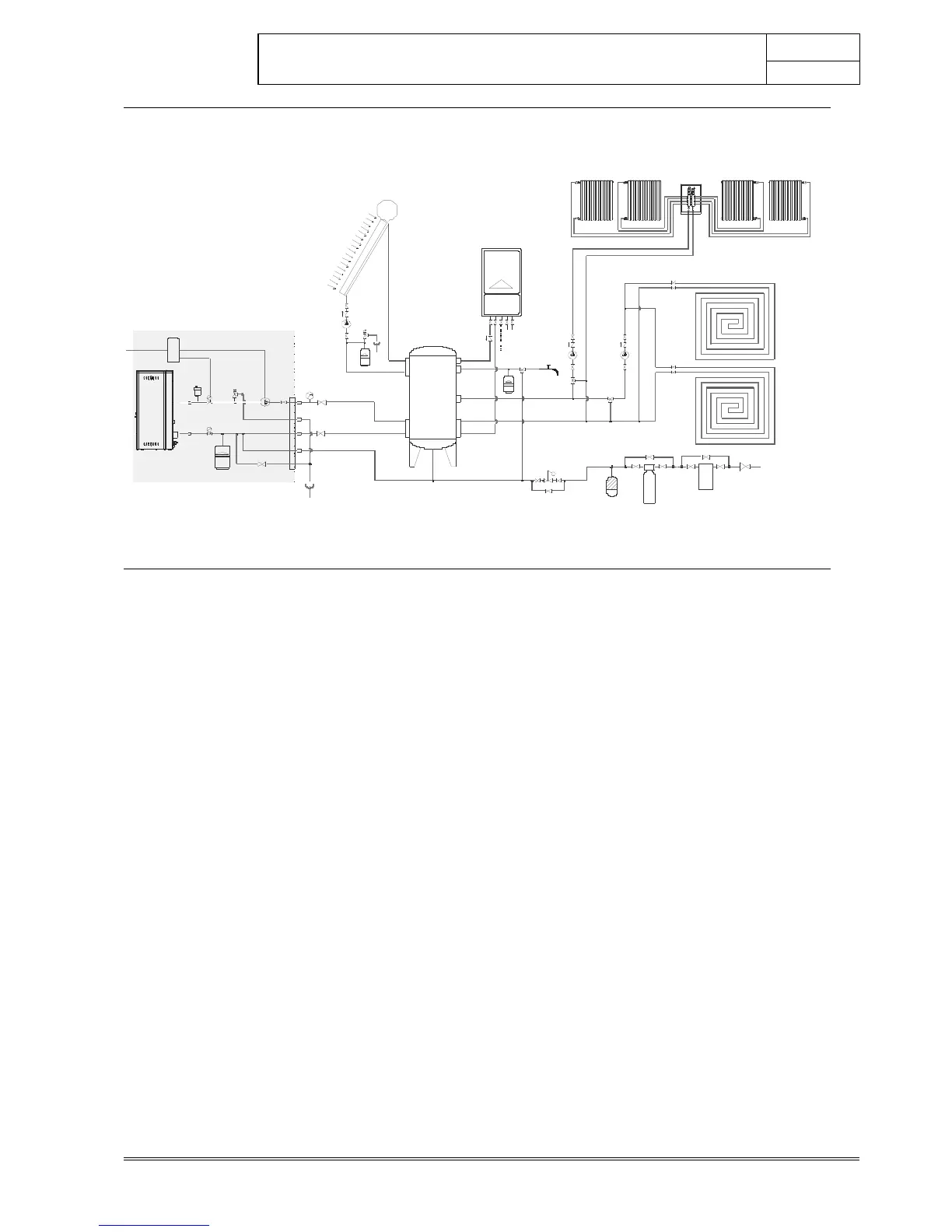

SYSTEM DIAGRAM WITH CLOSED TANK FOR HEATING WITH RADIATORS OR RADIANT PANELS AND FOR THE PRODUCTION OF DOMESTIC HOT WATER
SIGNATURFORKLARING:
SE Electronic card
S Automatic vent
M Pressure gauge
VS Vent valve, 3 bar
V Valve
P Pump
VD One-way valve
T Measurement of boiler temperature
VE Expansion tank, 1.5 bar of 6 l
W 3-way motorized valve
SC Plate heat exchanger
F Flow switch
C Methane gas boiler
B Boiler
BA Storage boiler
RA Radiators
PR Radiant panels
PS Solar panels
A Pounding absorber
RP Pressure reduction valve
Vsc Boiler/system discharge valve
Flt System filter
Add Softener
