5.1.4. Clean the exchanger and the undergrate space every 2/3 days.
Cleaning the exchanger and the undergrate space is a simple operation
but very important for always maintaining performance as declared.
Therefore we recommend cleaning the internal exchanger every 2-3
days, performing these simple operations in sequence:
o Enable the “CLEANING” function – with the stove switched
off, press the control panel button 4 shown in figure 9 for 2
seconds. This procedure starts the smoke blower on the
maximum setting to expel the soot that becomes dislodged
when the exchanger is cleaned.
o Clean the pipe unit – Using the "hands cool" implement
provided, shake the rods situated under the top (A in figure 10)
vigorously 5-6 times. This will remove any soot that has
deposited on the exchanger's smoke ducts during normal stove
operation.
o Clean the smoke conveyor compartment
PRIMULA/ORCHIDEA stoves (Figure 10)
– Primula/Orchidea stoves are fitted with a removable ash tray
“C” designed to collect any soot and ash build-up.
GARDENIA/MARGHERITA stoves (Figure 10a)
– Open the door, screw the "hands cool" implement onto the
rod of the scraper B (B in figure 10a), shake it vigorously 5-6
times along the entire length. Screw off the "hands cool"
implement and reposition the rod B fully in its seat. This will
help the fan expel any soot build-up which may have fallen
during the previous pipe unit cleaning process (After shaking
the rods “A”, always shake the scraper “B” too).
o Disable the "CLEANING" function - this function is
automatically disabled after two minutes. If you need to
interrupt this function earlier, press button 5 shown in figure 8.
If such cleaning is not done every 2-3 days the stove
could go into alarm caused by ash clogging after
several hours of operation.

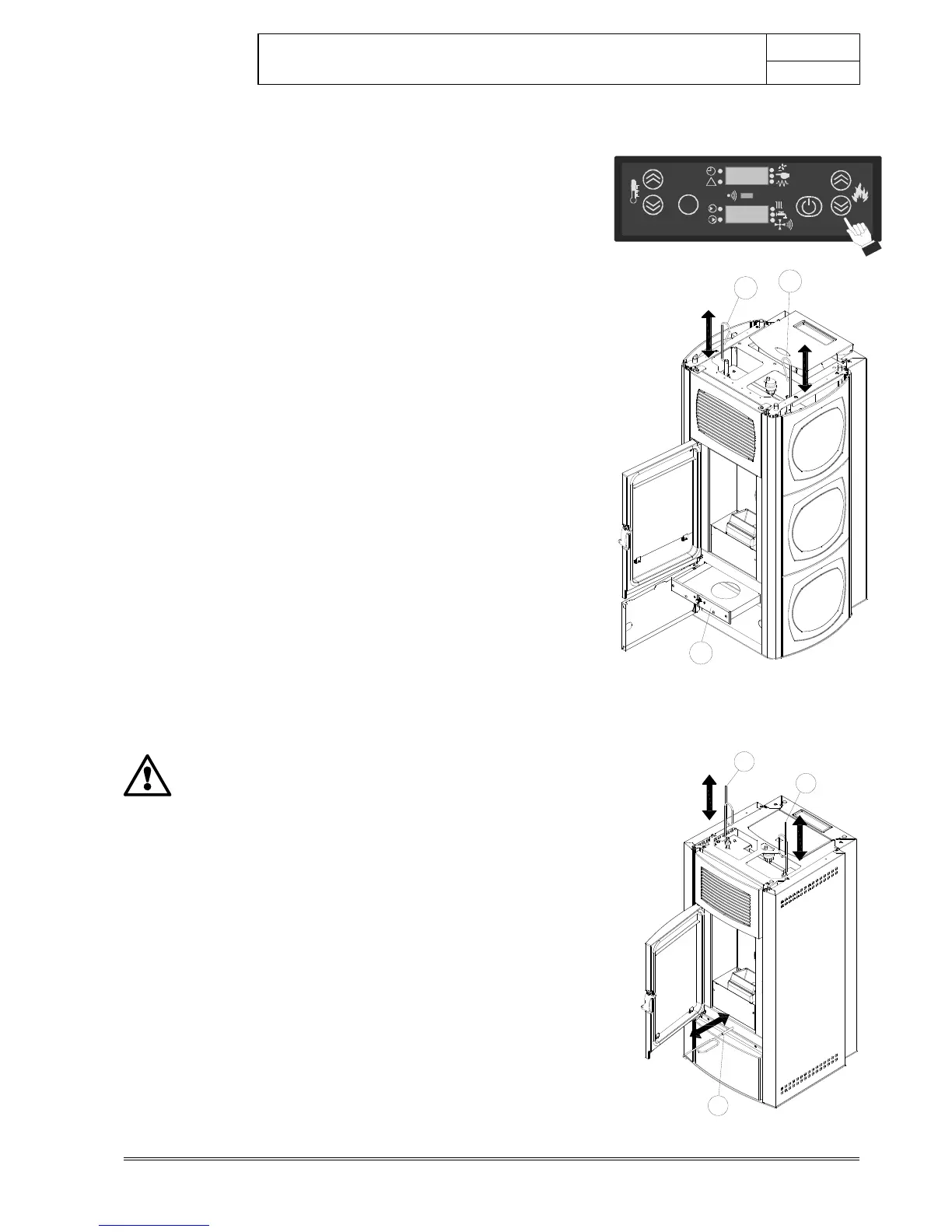

Figure 10a – Cleaning the lower
drawer (GARDENIA-MARGHERITA)
Figure 10 – Cleaning the internal pipe
unit using scrapers (PRIMULA-
ORCHIDEA)
Figure 9 - "Cleaning" function
