PELLET STOVES Chapter 3
red
INSTALLATION AND USE MANUAL
page 27
Installation and assembly Technical service - Rights reserved - Reproduction prohibited
3.4. PLUMBING SYSTEM CONNECTION
IMPORTANT!
The connection of the stove to the plumbing system
must be made ONLY
by specialized personnel who
are capable of carrying out installation properly, in
compliance with current standards in the country of
installation.
The company will not be held responsible for damage
to persons or things in the event of failed operation if
the aforementioned warning is not complied with.

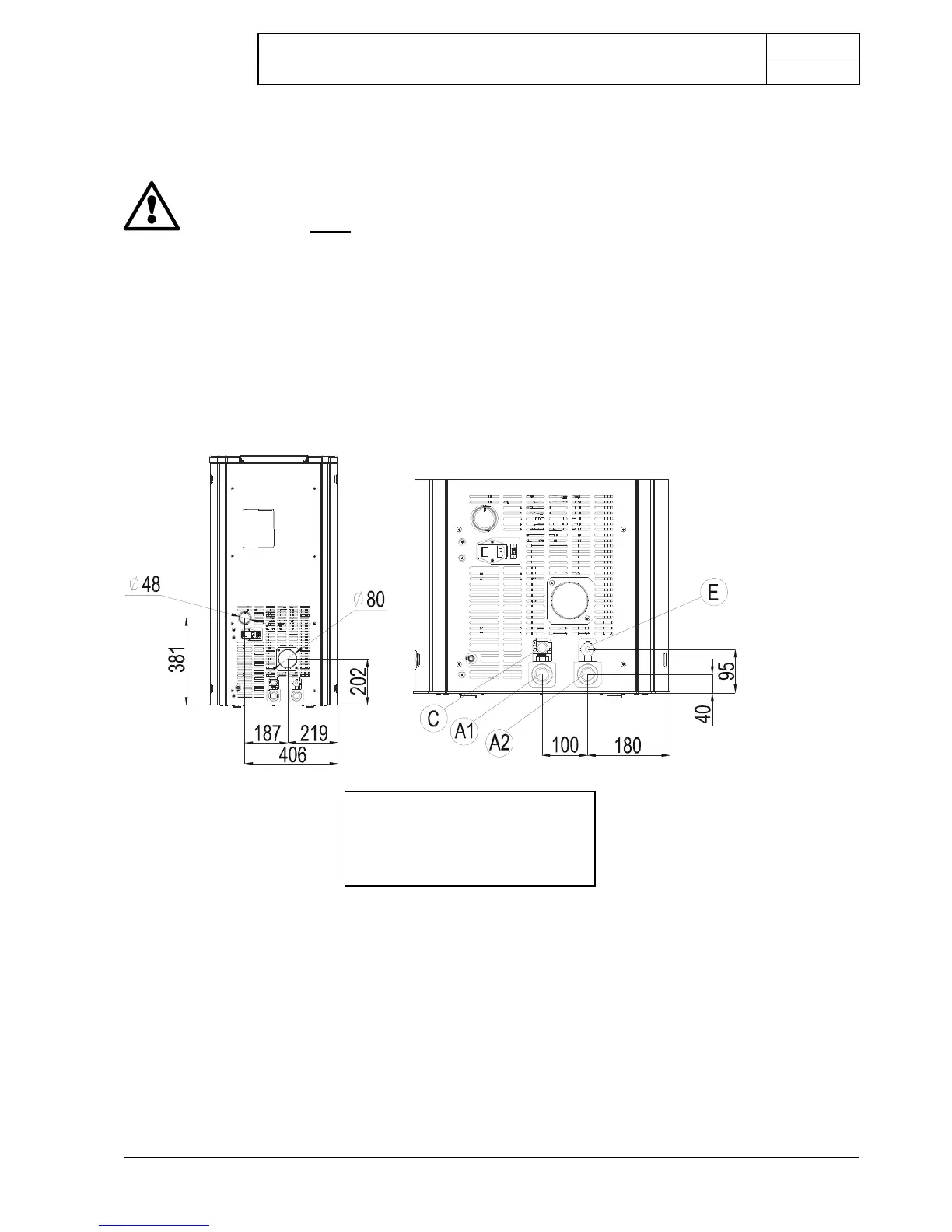

CONNECTION DIAGRAM FOR PRIMULA–ORCHIDEA HYDRO
STOVE
A1=Heating water delivery 3/4”M
A2=Heating water return 3/4”M
C=Safety valve 3/4”M
E=System emptying 3/4”M
