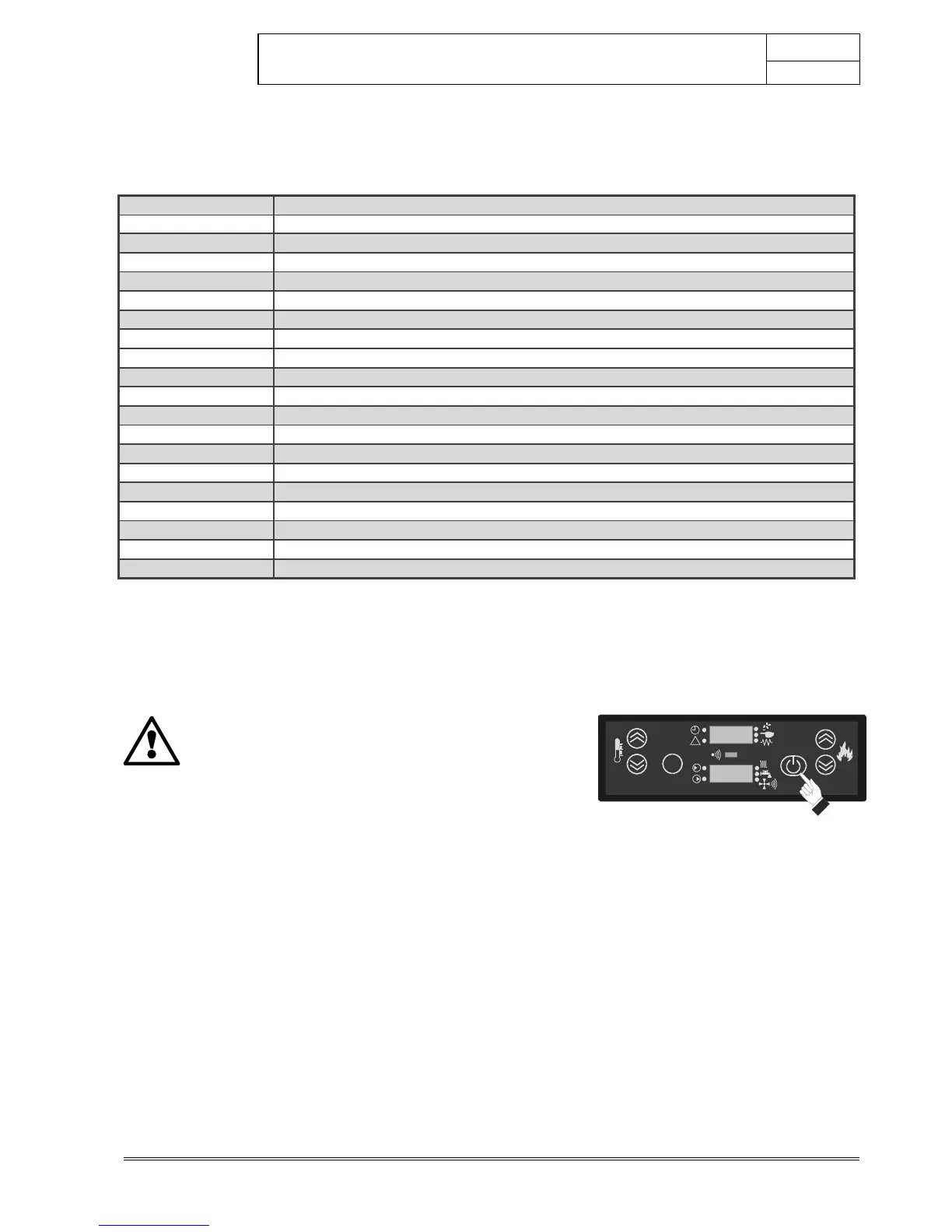

4.11.2. Other signals on the display
The following table summarizes that messages that may be shown on the dispaly panel
MESSAGE ON DISPLAY MEANING
off The stove is off
fan acc Initial lighting sequence
load wood Pellet loading
fire on Lighting sequence and adjsutment/stabilizing of flame
Eco Stop The stove automatically shuts down upon reaching the temperature
20 C° Example of room temperature
62 C° Example of water temperature
UT 01, UT02,… user paramters for programming time, time periods, etc.
day1,,,7 Days of the week
set Setting of stove operating mode (e.g. SET MAN = Stove set to manual)
Alar fan fail The smoke fan is not operating correctly
stop fire Automatic cleaning of the brazier in the set period of time
red red
cool fire The stove is in cooling mode
alar dep fail The pressure switch has tripped, indicating difficulty in smoke expulsion
alarm smoke probe The smoke probe is not working correctly
alar no acc An ignition attempt has failed.
alar no fire There is no fire stove
alar fail sic Thermal alarm Excessive heat in the structure or problems due to the hydraulic system.
4.12. SHUTTING THE STOVE DOWN
The stove can be extinguished at any time and in any position.
NEVER SHUT THE STOVE DOWN BY CUTTING OFF THE
ELECTRICITY SUPPLY:
Always leave it to complete the shutdown cycle,
otherwise damage could be caused to the structure,
and also problems with lighting in the future.
To extinguish the stove, press for a few seconds on the key .
The display (8) will show the message “OFF”. At this moment the
shutdown cycle begins, in which the pellet loading screw stops, while
the smoke extractor and the hot air exchanger remain on until the
temperature of the stove has dropped.
The actual shutdown of the stove only occurs 20 - 30 minutes later,
and in any case not before the smoke temperature drops below 50 °C.
This occurs to allow the combustion fumes to be ducted into the flue
pipe by means of the extractor.
It also means that there is total recovery of the heat yielded by
combustion to the structure of the stove.
