RED PRIMULA - ELECTRICAL DIAGRAM of PRIMULA;ORCHIDEA - GARDENIA;MARGHERITA Hydro with DOMESTIC HOT WATER KIT

PELLET STOVES Chapter 7
red
INSTALLATION AND USE MANUAL
page 65
Electrical diagrams Technical service - Rights reserved - Reproduction prohibited

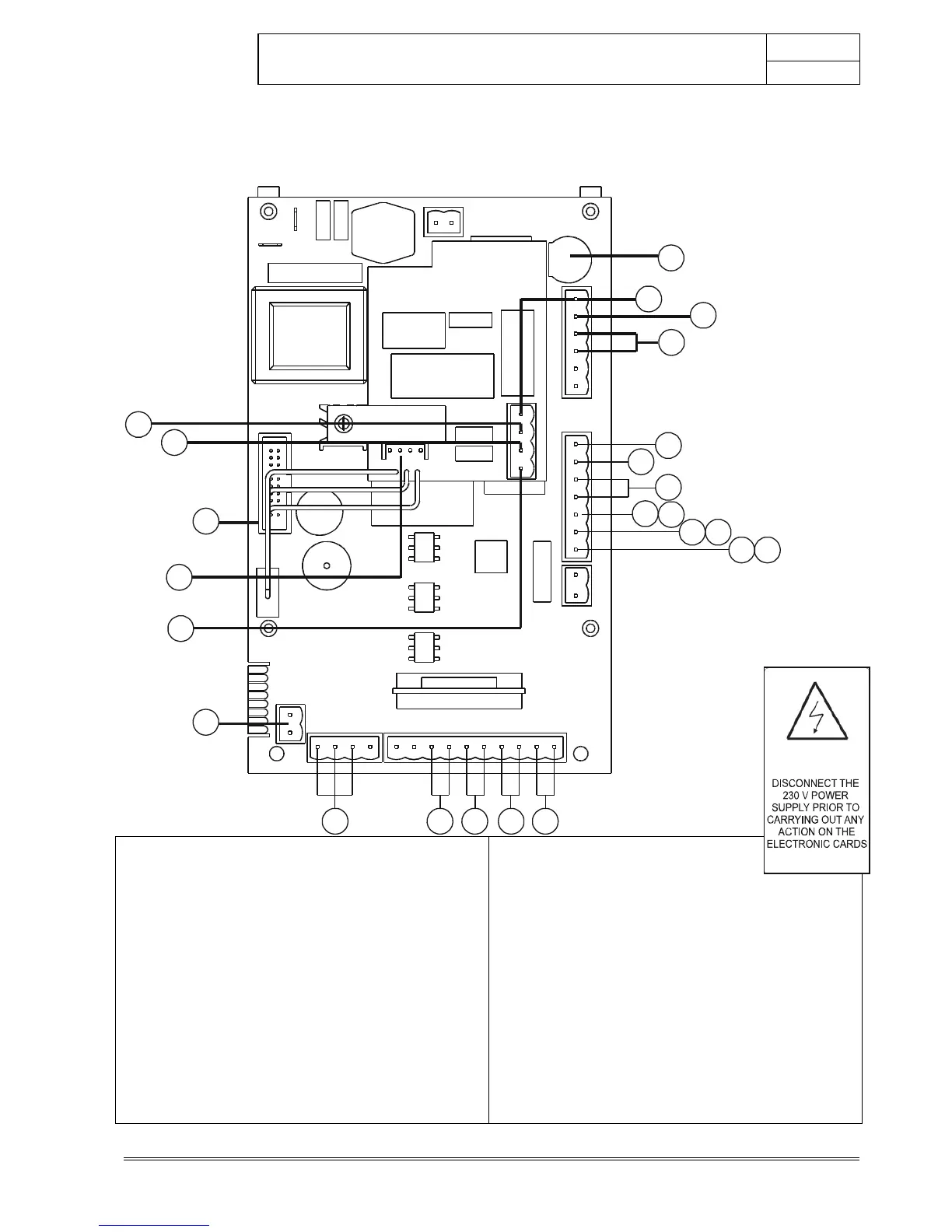

7.2. ELECTRICAL DIAGRAM OF PRIMULA/ORCHIDEA – GARDENIA/MARGHERITA
Hydro WITH DOMESTIC HOT WATER KIT
1
I055
I023
2
3
4
5
6
7
8
8
5
10
11
1213141516
18
19
22
21
20
F
A
S
E
17
9
1. FUSE
2. BOARD PHASE
3. BOARD NEUTRAL
4. SMOKE BLOWER FAN
5. AUGER
6. WATER TEMPERATURE OVERLOAD CUT-OUT
7. SPARKPLUG
8. PRESSURE SWITCH
9. KLIXON PRESSURE SWITCH
10. PUMP NEUTRAL
11. 3-WAY VALVE NEUTRAL
12. SMOKE SENSOR
13. AMBIENT THERMOSTAT
14. INTERNAL ROOM SENSOR
15. WATER TEMPERATURE SENSOR
16. FLUE-GAS EXTRACTOR FAN REVOLUTIONS
CONTROL
17. FLOW METER
18. CONTROL PANEL
19. SERIAL CONNECTOR (for connection to the
I023 board)
20. PUMP PHASE
21. 3-WAY VALVE PHASE (Heating)
22. 3-WAY VALVE PHASE (Domestic)
LIVE ELECTRICAL
CABLES
