PELLET STOVES Chapter 3
red
INSTALLATION AND USE MANUAL
page 29
Installation and assembly Technical service - Rights reserved - Reproduction prohibited
3.4.1. Connections to the system
Make the connections to the corresponding fittings shown in the
diagram on the previous page. Make sure the pipes are not placed
under tension or undersized.
IMPORTANT
IT IS STRONGLY RECOMMENDED TO WASH THE
ENTIRE SYSTEM BEFORE CONNECTING IT IN ORDER
TO GET RID OF RESIDUES AND DEPOSITS.
Upstream from the stove, always install shutters so
as to disconnect it from the plumbing system should
it be necessary to move it, or when it requires
routine and/or special maintenance.
Connect the stove using hoses so that the stove is
not too strictly connected to the system, and to allow
slight movements.

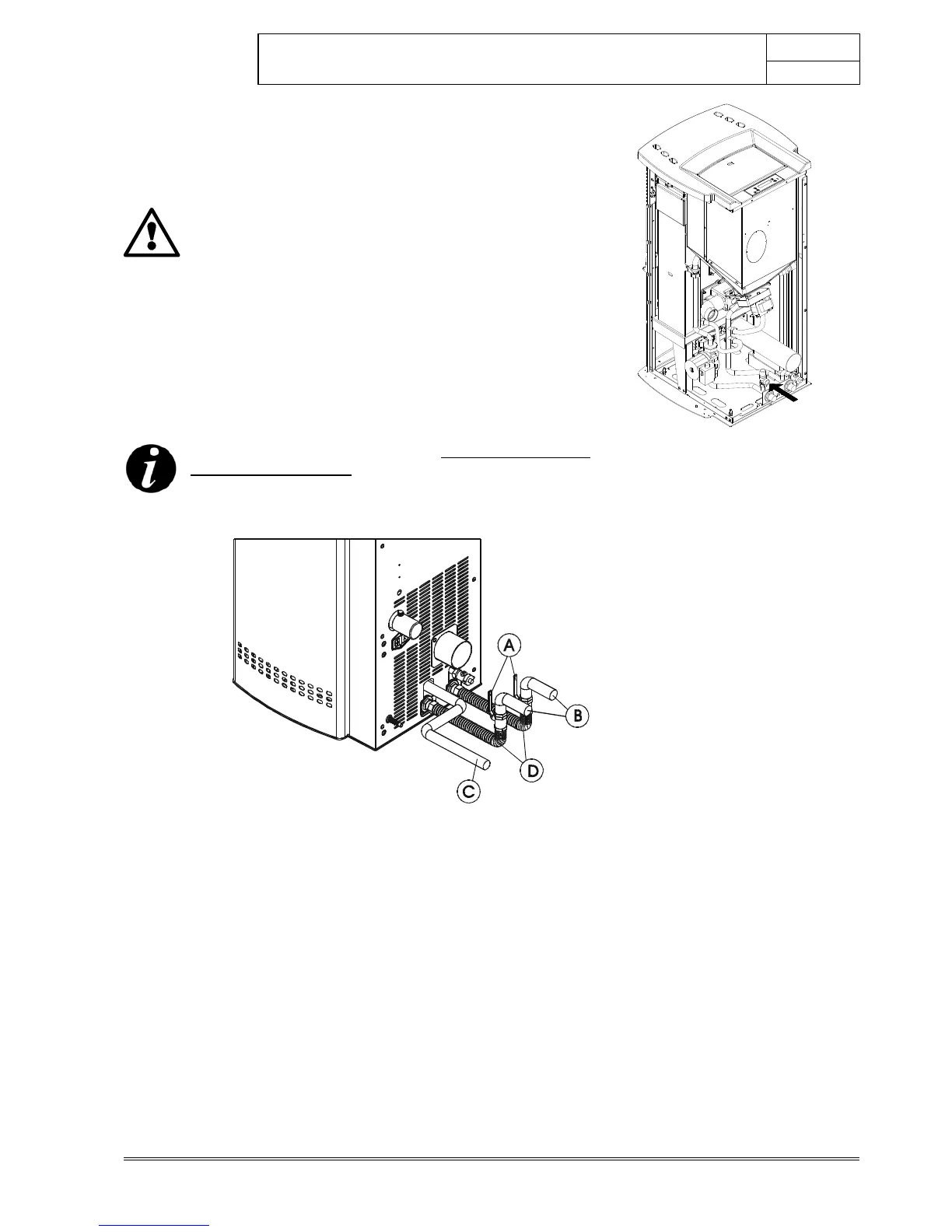

The pressure discharge valve (C) is always connected
to a water drain pipe. The pipe must be adequate to
support the water's high temperature and pressure.
A = TAP
B = DOMESTIC SYSTEM
C = PRESSURE DISCHARGE
D = FLEXIBLE PIPES
Pressure discharge valve (3 bar)
