3.6. EXAMPLE INSTALLATION DIAGRAMS
The following diagrams are to be used only as a
guideline. For proper connection, always follow the
notes for the plumbing and heating installer. The
plumbing system must meet local, regional or
national requirements. Installation and verification
of operation is to be performed only by specialized,
authorized personnel.
The company will not be held liable for non-
compliance with the provisions listed above.

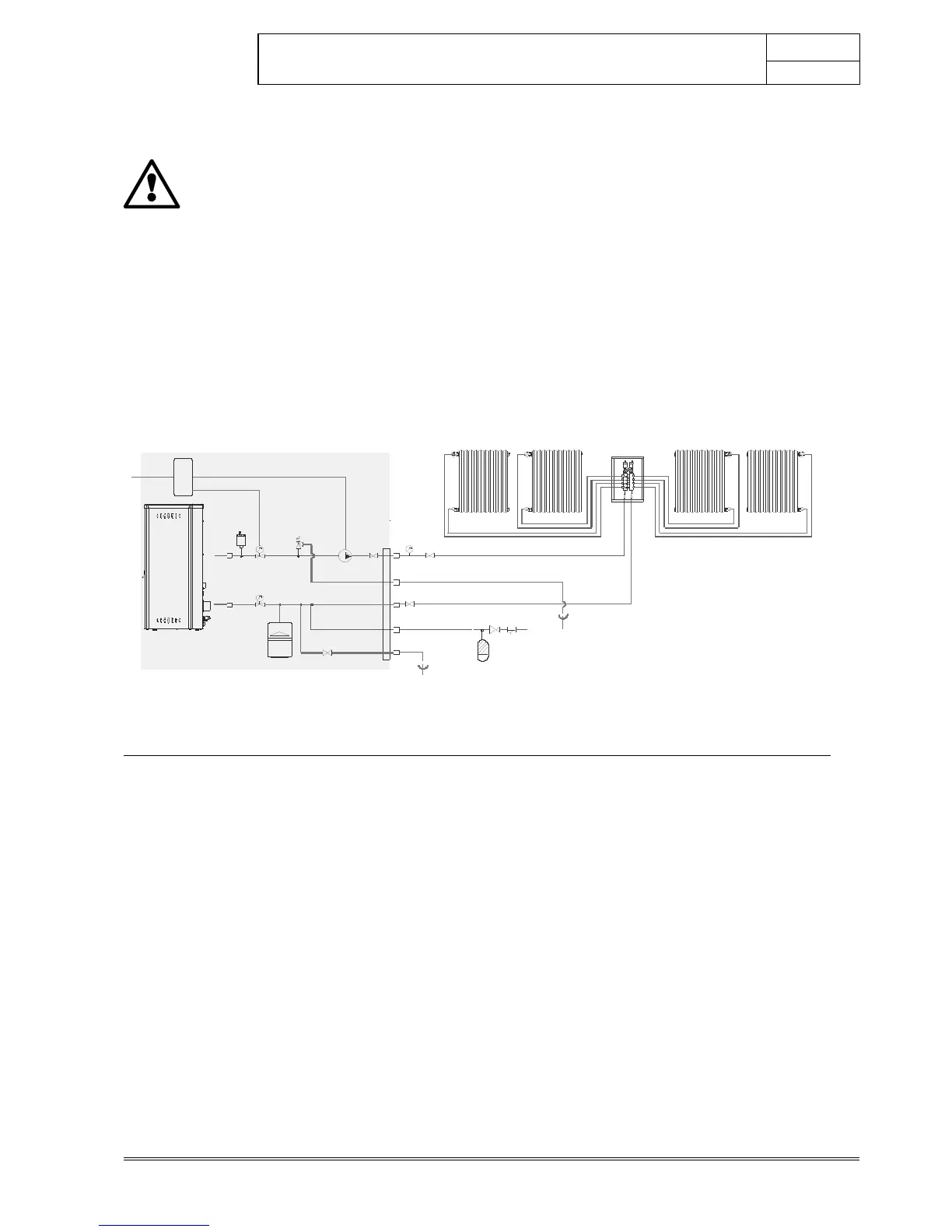

3.6.1. Installation diagram for heating system without domestic hot water kit
(PRIMULA/ORCHIDEA/GARDENIA/MARGHERITA)
PERFORMANCE:
HEATING WITH STOVE
S
T
VS
P
VE
V
M
SYSTEM DELIVERY
PRESSURE SAFETY DISCHARGE
SYSTEM RETURN
SYSTEM REFILL
CONFIGURATION: PRIMULA/ORCHIDEA – GARDENIA/MARGHERITA WITHOUT DOMESTIC HOT WATER KIT
SYSTEM OF SYSTEM WITH CLOSED TANK ONLY FOR HEATING BY MEANS OF RADIATORS
SIGNATURFORKLARING:
SE Electronic card
S Automatic vent
M Pressure gauge
VS Vent valve, 3 bar
V Valve
P Pump
VD One-way valve
T Measurement of boiler temperature
VE Expansion tank, 1.5 bar of 6 l
W 3-way motorized valve
SC Plate heat exchanger
F Flow switch
C Methane gas boiler
B Boiler
BA Storage boiler
RA Radiators
PR Radiant panels
PS Solar panels
A Pounding absorber
RP Pressure reduction valve
Vsc Boiler/system discharge valve
Flt System filter
Add Softener
