PELLET STOVES Chapter 3
red
INSTALLATION AND USE MANUAL
page 26
Installation and assembly Technical service - Rights reserved - Reproduction prohibited

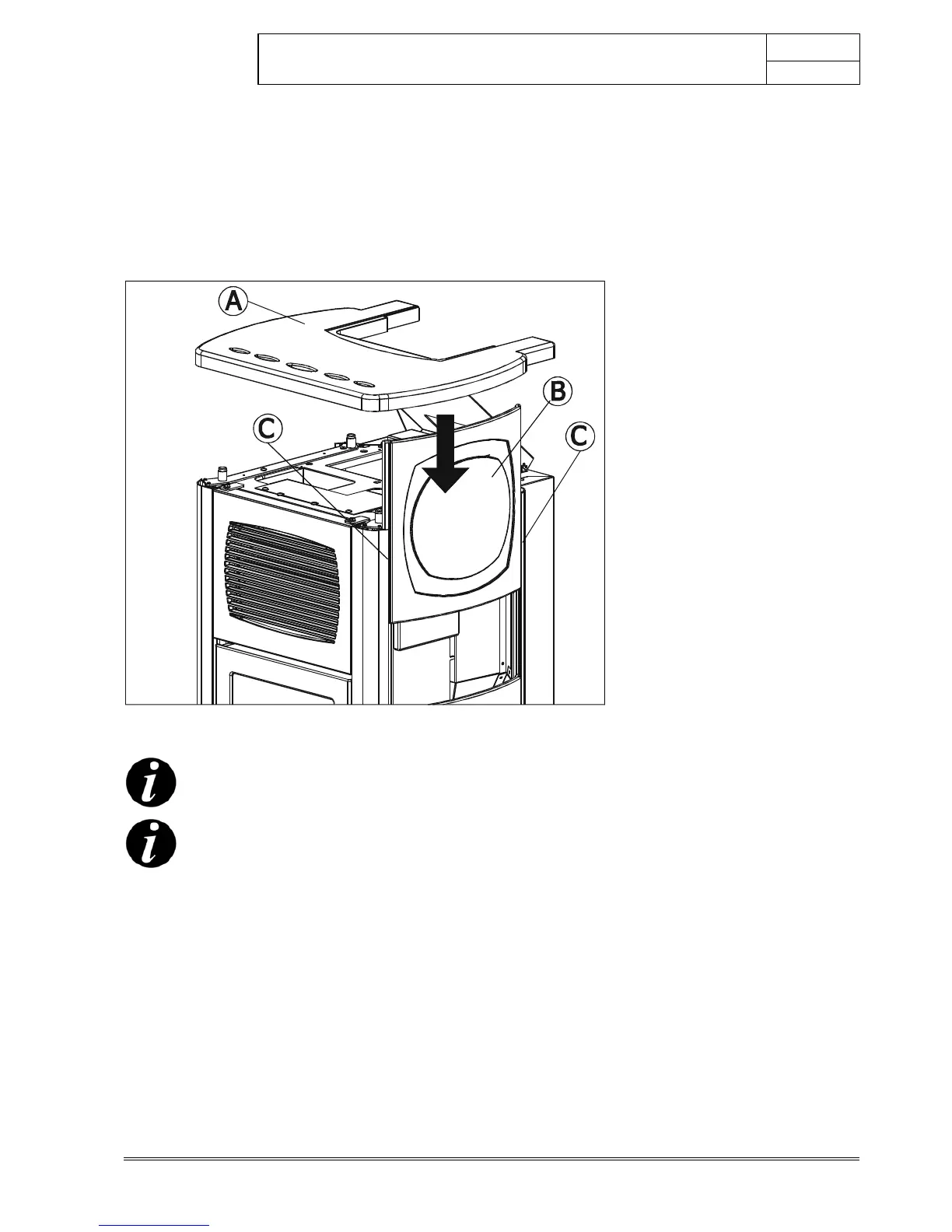

Inserting the ceramic sides (ORCHIDEA)
Remove, on the upper part, the cast iron top (A).
Take the six ceramics (B) from the box (see section 3.2) and insert
them into the profile (C) where the guide is, from the top downwards
Repeat the same operation for both sides. Reposition the cast iron top.
(fig.6)
We recommend the use of small velcro felt disks to
apply to the tips of the ceramics to avoid contact
between them.
We recommend installing the ceramics after
installation of the stove is complete.
Figure 6 – ORCHIDEA stove sides
