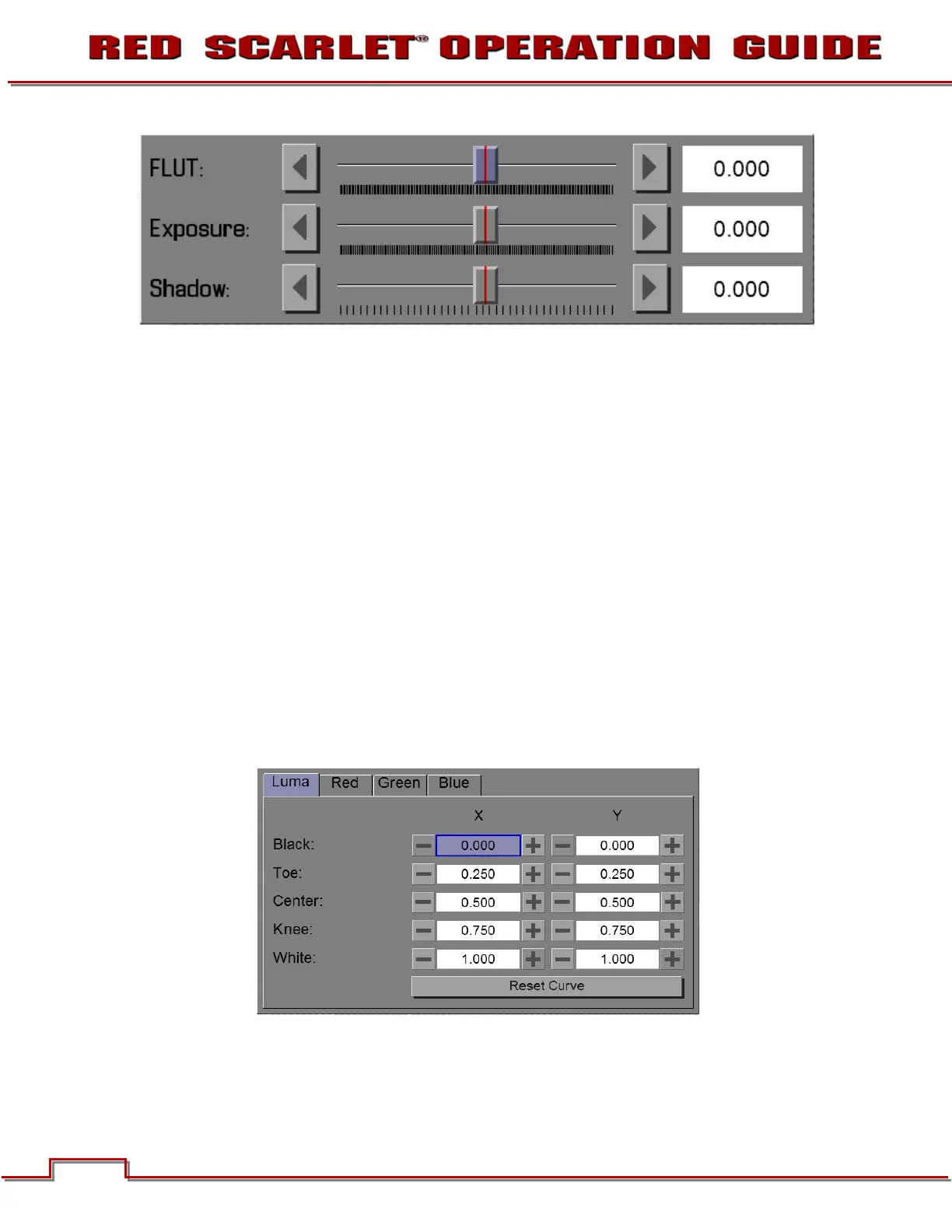

FLUT
FLUT (Floating Point Lookup Table) adjusts mid-range tone values. Range -8.0 to +8.0. Default is 0.0.
EXPOSURE
Adjusts exposure compensation. Available exposure range is –7.0 to +7.0. Default is 0.0.
SHADOW
Shadow adjusts the toe value of the FLUT or in other words, the tone near Black. Range is -2.0 to +2.0.
Default is 0.0. Increasing the Shadow value raises the video level of near Blacks. Lowering the Shadow
value crushes the video level of near Blacks.
CURVES
The curves dialog box allows the user to set define curves for Luminance, and the red, green, and blue
channels.
