Power Terminals

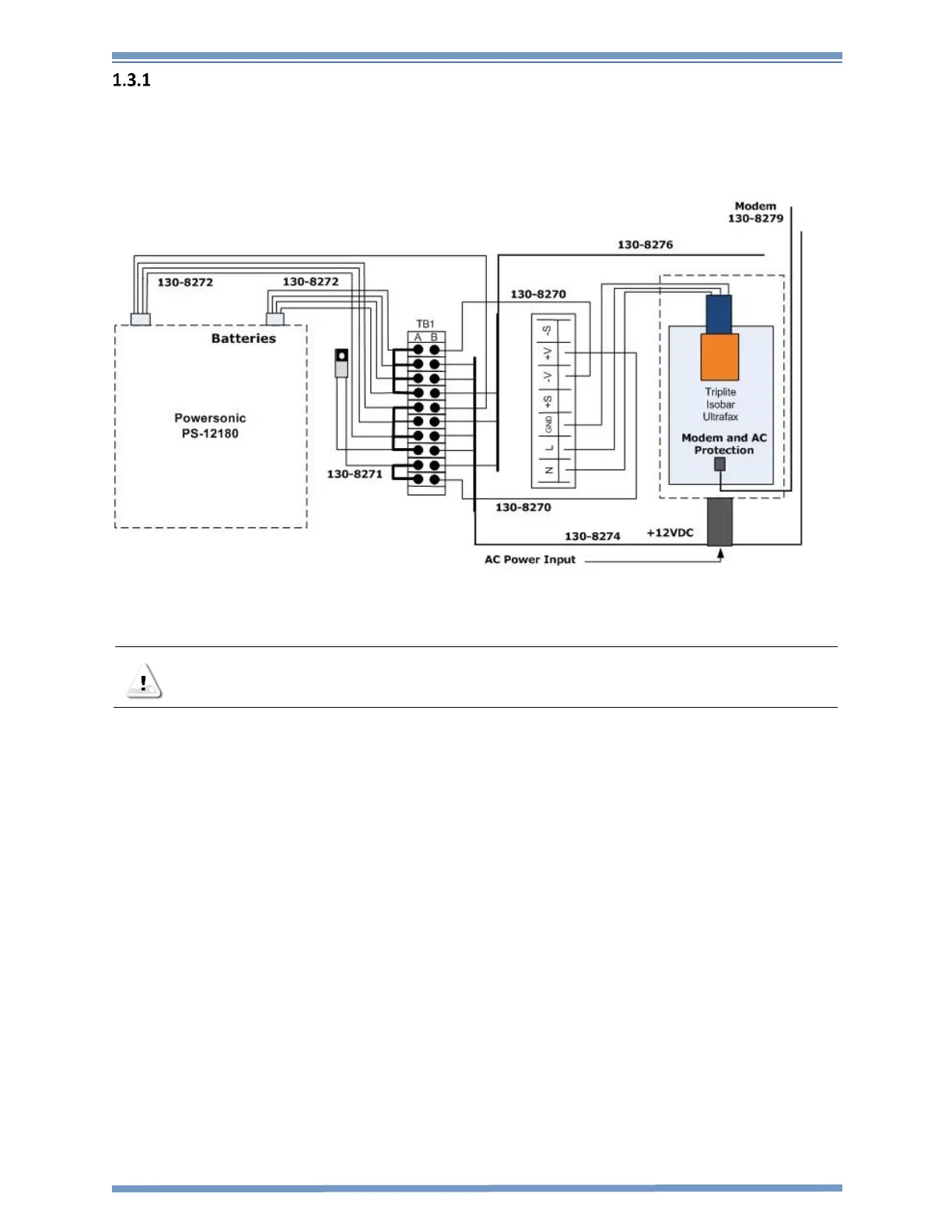

Power is supplied to the 130-MC system through one 110 AC power connector. The hardware
connection diagram on the previous page shows typical connections for the 130-MC. The
following chart details individual connection to the terminal block (TB1) and charger.
Note: The 130-8271 cable provides the input diode drop required to isolate the battery from the charger and detect
the loss of building AC.
CAUTION:. Disk operations are suspended when the input voltage drops below 9.0 Volts and
are re-enabled when the voltage goes above 10.0 Volts. (Version 2.9.6 or later) (See 3.0.0
CPU Release Notes)
Note: Firmware upgrades are not performed when the power is below 10.0 Volts. (Version 2.9.6 Release or later)
