Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021
96223-00-UG
46 Reftek Systems Inc.
Purpose of the 130-MC system
The REF TEK 130-MC combines the Third Generation Broadband Seismic Recorder (REF TEK 130-
03/12 or 130-03/18) and is housed in an instrument enclosure. The 130-MC is a rugged and
versatile data recorder. The modular design of their hardware and software allows you to
reconfigure the 130-MC for various types of applications for continuously monitoring
earthquakes and other seismic events by thoroughly measuring strong earthquake shaking at
ground sites, in buildings and critical structures, and automatically broadcasting information
when a significant earthquake occurs. This allows immediate assessment of an impact.
Some specific uses include the following:
o Free field reference station for strong motion.
o Telemetry networks
o Aftershock studies
o Building arrays
o Structural monitoring

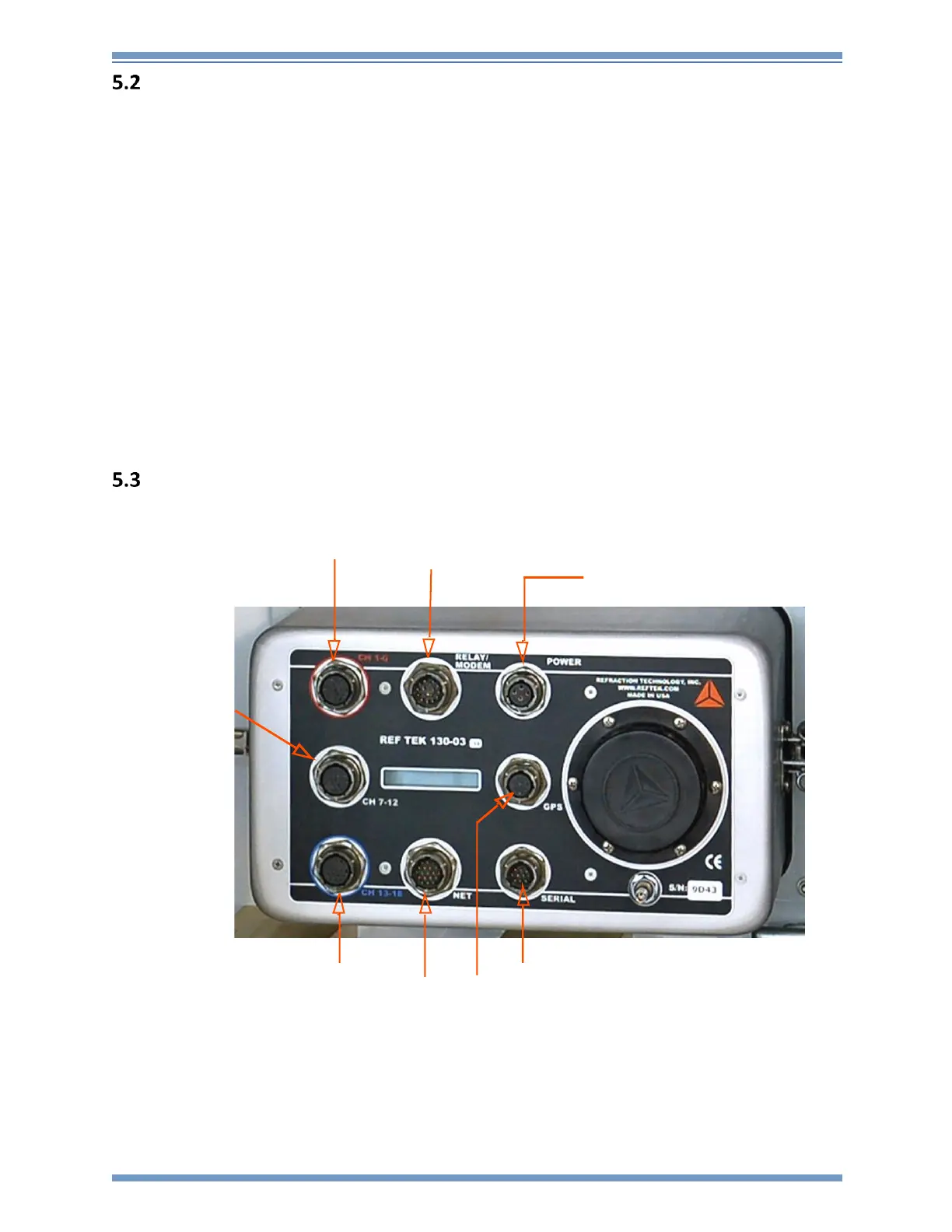

130-03 Diagram
130-GPS(130-8278)to RT590
12V Power (130-8275) to TB1
Optional Internal Modem (130-8279)
Ethernet (130-8277)
Optional External Modem
Local Serial connection
Relays (130-9279) to RT590
Channels 13-18
130-8276 Connection
for external alarm
notification
Channels 1-6
130-8276 Connection
130-8276 Connection
Channels 7-12
to RT588
to RT588
to RT588
To Next Page
