Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021
96223-00-UG
Reftek Systems Inc. 37

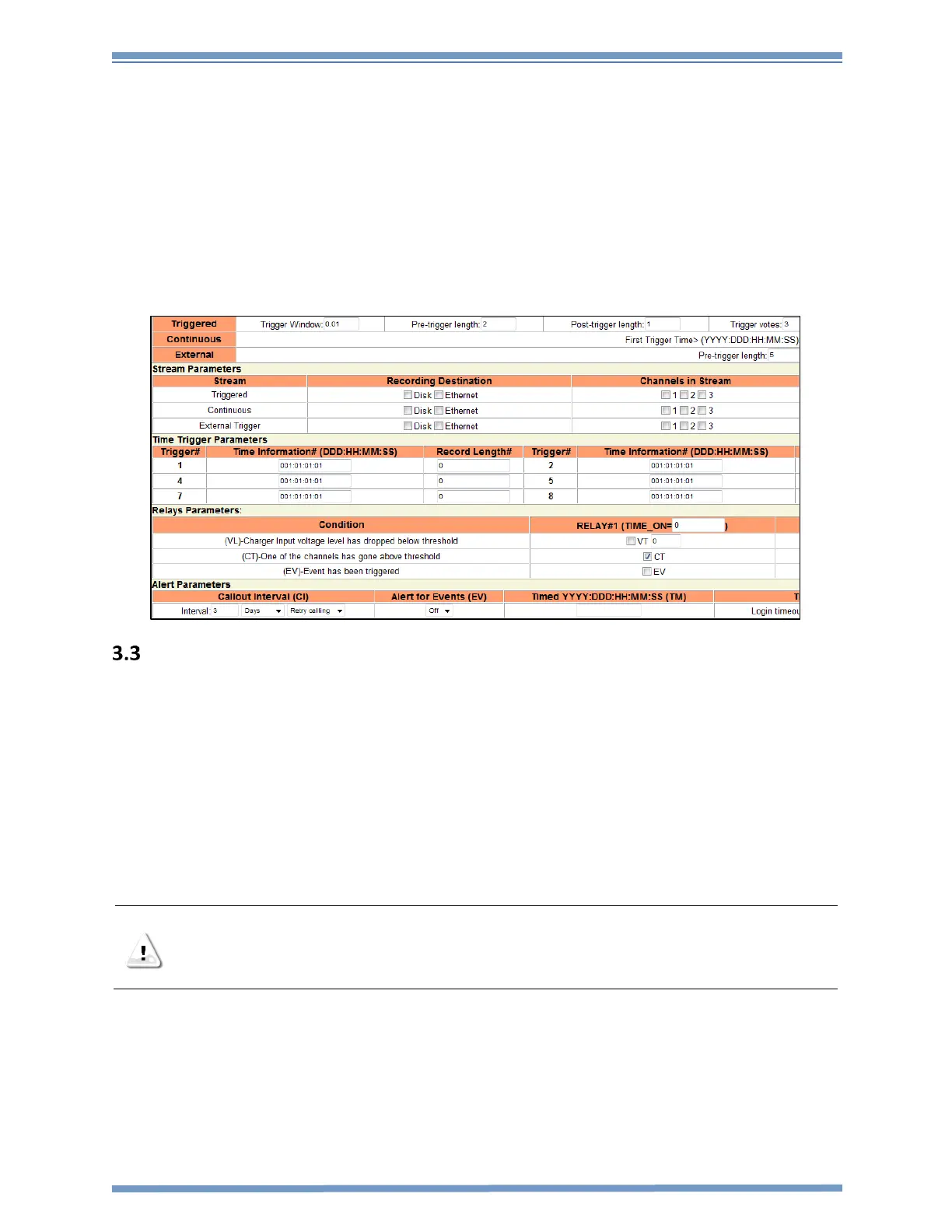

Detailed explanations and methods for using all 130-MC parameters, including data streams and
triggers, are provided in subsequent sections in the SMCC Users Guide manual and 130
Command Line Reference.
REF TEK pre-sets and tests the hardware of each 130-MC before you receive the unit to ensure
that it performs as specified. The 130-MC does not require hardware adjustments for normal
operations. You may use a 130-MC as a stand-alone system, or you may use a network of many
130-MC units deployed over a survey site. During field operations, the 130-MC can store data in
its own internal Compact Flash™ card(s). The 130-MC has two ports (Ethernet and Telemetry)
that allow connection to networks locally or remotely (by radio, telephone, or satellite relays).
Some networks include both local and remote interconnections.
Port settings and modem communications
A 130-MC provides several communications ports. This section describes the available
communications ports, and other considerations regarding the use of modems. The ports are:
o Command port (Serial) on the 130-03
o NET port (Ethernet)
o Internal modem port (for use with the optional internal modem)
o Optional external modem port (in lieu if internal modem)
To set up the configurations of the 130-MC unit's ports, follow the instructions in the SMCC Users
Guide.
CAUTION:. A 130-MC is shipped pre-configured with a default IP address. Be sure to change
this address before connecting the 130-MC to an Ethernet port.
The 130-MC uses a 10BaseT Ethernet chip. The 130-MC Ethernet port may not work when
connected to all 100BaseT and some 10/100BaseT Ethernet hubs.
