Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021
96223-00-UG
36 Reftek Systems Inc.

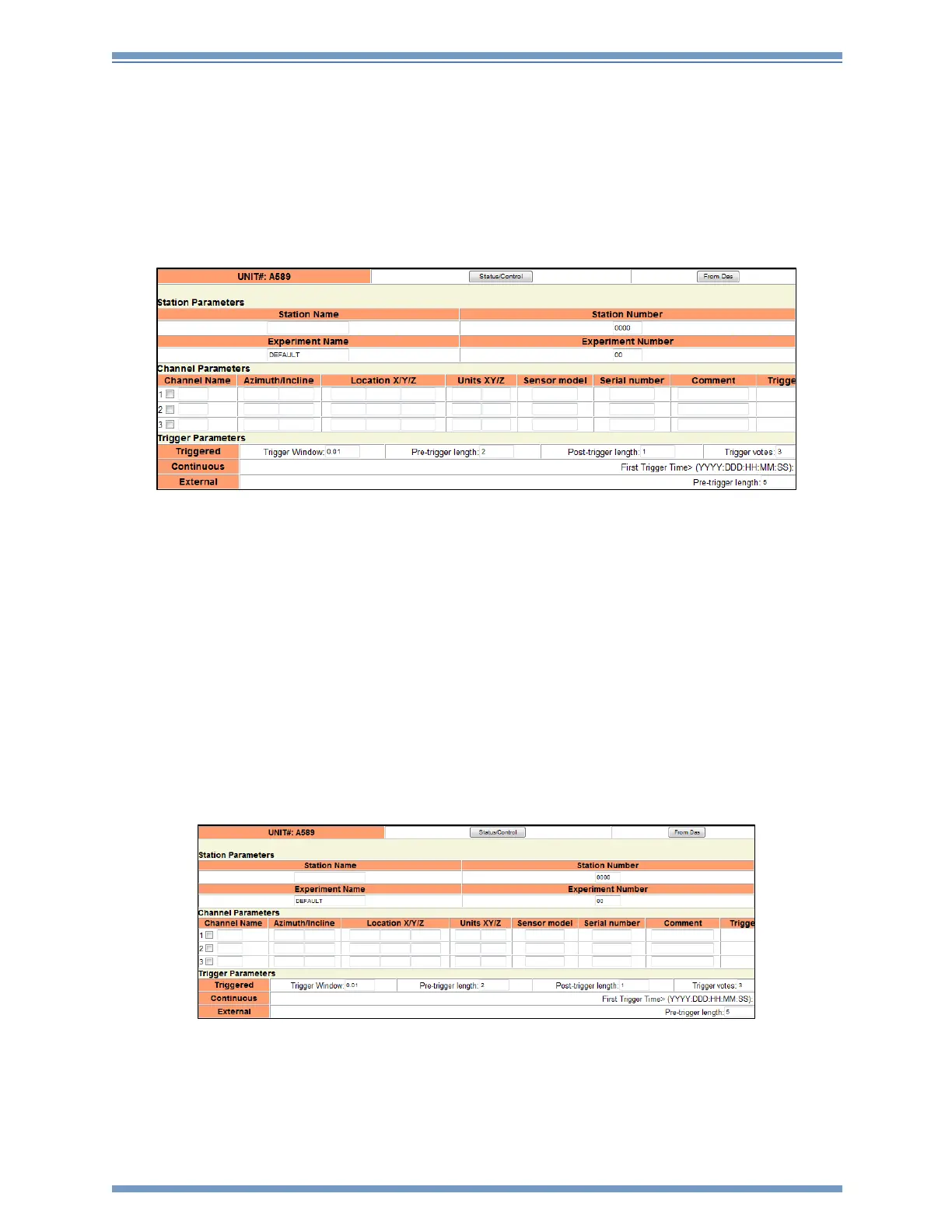

The 130-MC collects data based on the series of parameters that you select and implement. All
130-MC units have multiple datastream capability, allowing users a vast array of possible
parameter combinations. You may set the following parameters for each datastream:
o Which input channel or channels to include
o Sample rate
o Data format (recording resolution)
o Trigger type
The possible values for these parameters, as well as the possible combinations of parameters,
are different for the 130-MC with different hardware configurations, different versions of control
firmware, or both. For a comprehensive explanation of your 130-MC specific capabilities and
limitations, refer to the REF TEK 130 Command Line - Theory of Operations and Command
Reference manuals.
The trigger type selected for a datastream defines the particular mechanism that determines
when the 130-MC collects data. The trigger types available on the 130-MC are as follows:
o Continuous trigger
o Vote trigger
o External trigger
Each trigger has its own set of parameters that determines the exact conditions under which the
130-MC records data.
