Reftek 130-MC User Manual

Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021
96223-00-UG
Reftek Systems Inc. 13

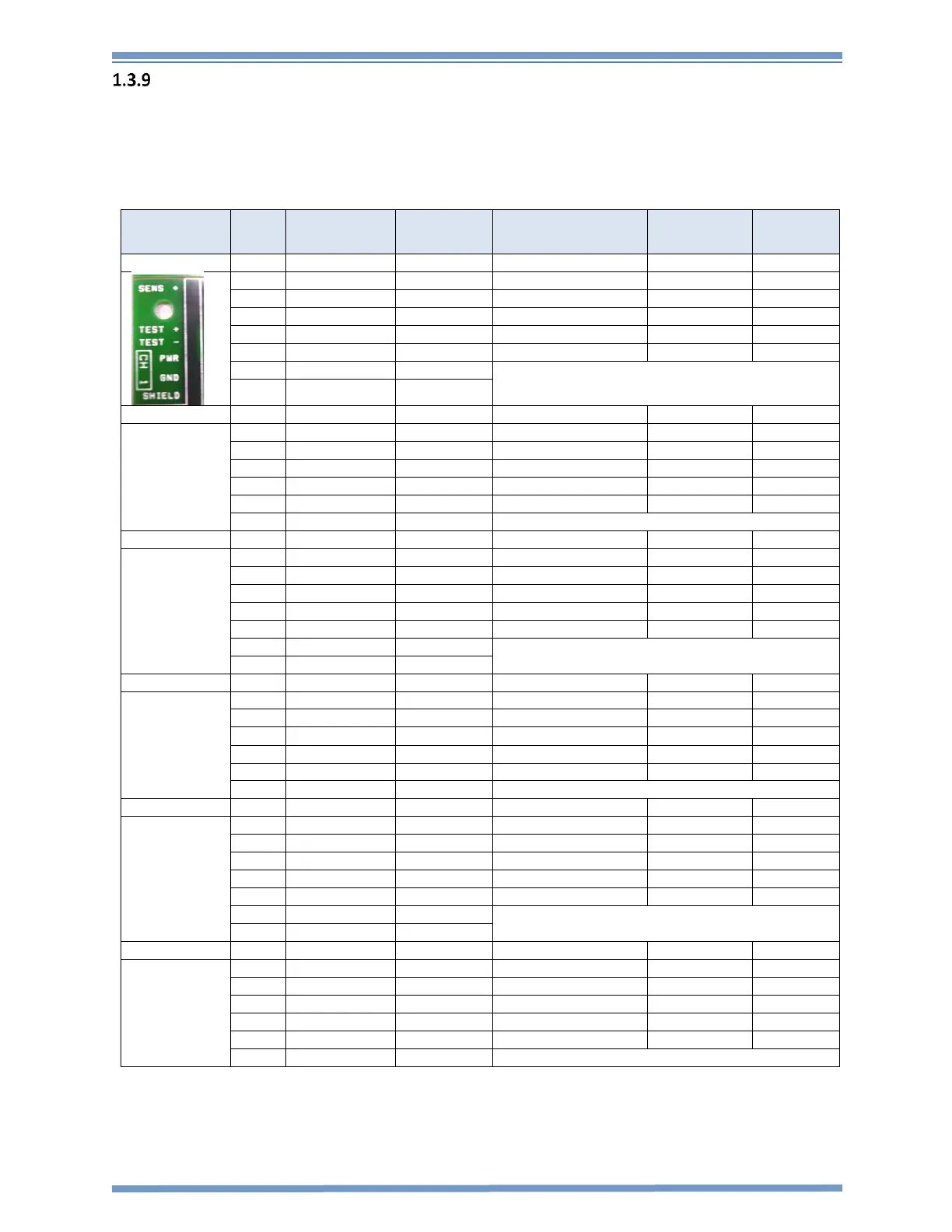

Channels 1-6 RT588 Connector
Channels 1-6 are on first of the RT588 boards of the 130-MC and provide external sensors to be
connected.
Refer to the Sensor display in the SMCC Users Guide or see the SL, ST, and SN commands in the
Command Line Reference Guide for more information on how to configure the sensors.
RT588(J10)
Connector
MC
Pin
Name
Direction
Electrical Desc
Voltage
Range
Note
Channel 1
1
SENS +
Input
CH 1 Sensor +
±10 Volts
2
SENS -
Input
CH 1 Sensor -
±10 Volts
3
TEST +
Output
CH 1 Test +
RS-485
4
TEST -
Output
CH 1 Test -
5
PWR
Output
Sensor power
18 or 24V
6
GND
-
Power ground
7
SHIELD
-
8
No Connect
Channel 2
9
SENS +
Input
CH 2 Sensor +
±10 Volts
10
SENS -
Input
CH 2 Sensor -
±10 Volts
11
TEST +
Output
CH 2 Test +
RS-485
12
TEST -
Output
CH 2 Test -
13
PWR
Output
Sensor power
18 or 24V
14
GND
-
Power ground
15
SHIELD
-
Channel 3
16
SENS +
Input
CH 3 Sensor +
±10 Volts
17
SENS -
Input
CH 3 Sensor -
±10 Volts
18
TEST +
Output
CH 3 Test +
RS-485
19
TEST -
Output
CH 3 Test -
20
PWR
Output
Sensor power
18 or 24V
21
GND
-
Power ground
22
SHIELD
-
23
No Connect
Channel 4
24
SENS +
Input
CH 4 Sensor +
±10 Volts
25
SENS -
Input
CH 4 Sensor -
±10 Volts
26
TEST +
Output
CH 4 Test +
RS-485
27
TEST -
Output
CH 4 Test -
28
PWR
Output
Sensor power
18 or 24V
29
GND
-
Power ground
30
SHIELD
-
Channel 5
31
SENS +
Input
CH 5 Sensor +
±10 Volts
32
SENS -
Input
CH 5 Sensor -
±10 Volts
33
TEST +
Output
CH 5 Test +
RS-485
34
TEST -
Output
CH 5 Test -
35
PWR
Output
Sensor power
18 or 24V
36
GND
-
Power ground
37
SHIELD
-
38
No Connect
Channel 6
39
SENS +
Input
CH 5 Sensor +
±10 Volts
40
SENS -
Input
CH 5 Sensor -
±10 Volts
41
TEST +
Output
CH 5 Test +
RS-485
42
TEST -
Output
CH 5 Test -
43
PWR
Output
Sensor power
18 or 24V
44
GND
-
Power ground
45
SHIELD
-
