Reftek 130-MC User Manual

Rev G REF TEK 130 Multi-Channel Users Guide 5/14/2021
96223-00-UG
38 Reftek Systems Inc.

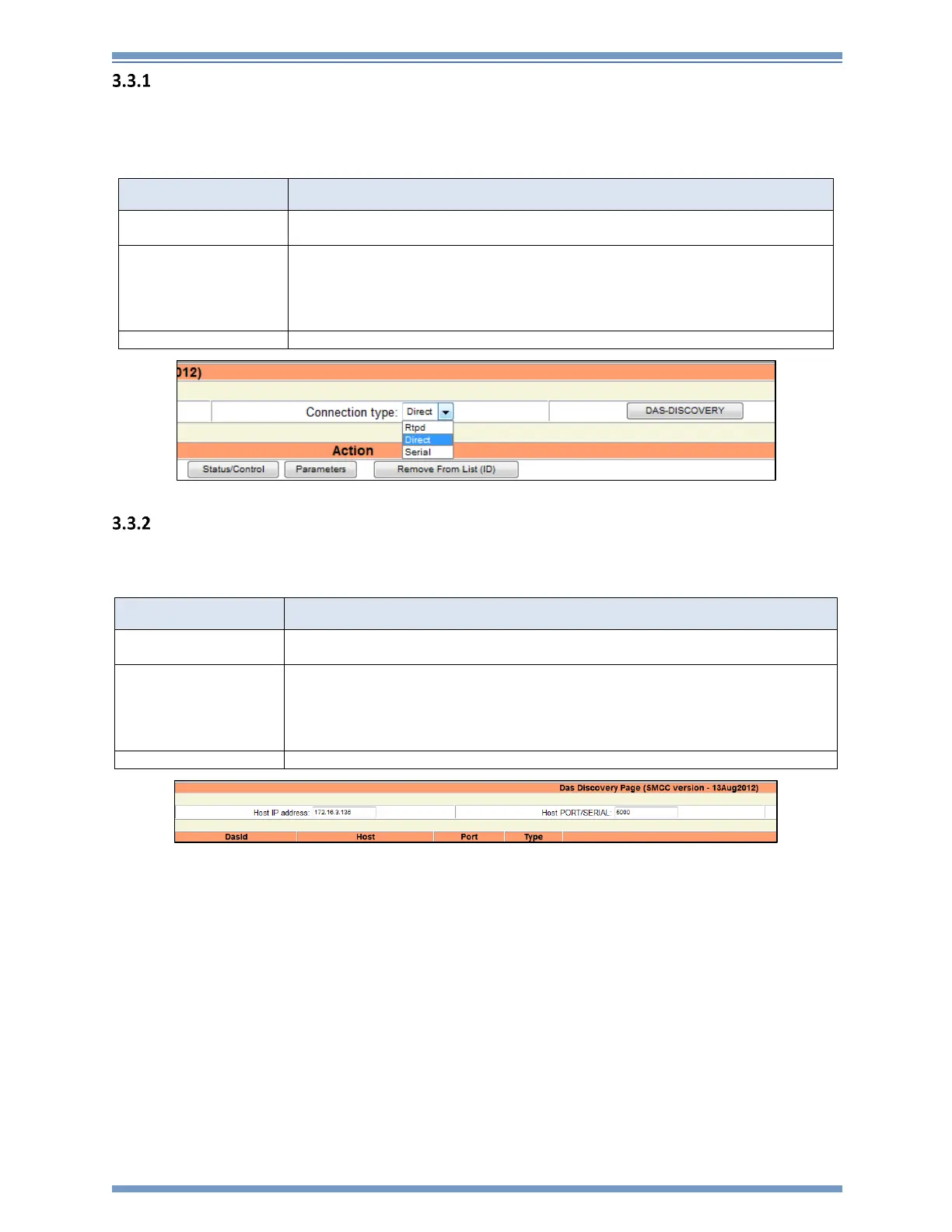

130-03 Command Port (Serial)
Each 130-MC unit provides two bidirectional, asynchronous serial ports. The first of these ports
is accessible at the Serial connector on the 130-03 unit's faceplate. This port has the following
primary functions and characteristics:
Function
Characteristics
Primary Function
Allows local command and control input through a serial connection to a terminal mode
program.
Configuration
This port cannot be user-configured. Recorder software always sets this port to 57,600 baud,
no parity, 8 data bits, and 1 stop bit.
Note: The SMCC software can be used to setup a serial port. The settings can be changed
using the provided menus.
Hardware Location
This port is accessible at the serial connector on the 130-MC faceplate.
Ethernet Port
Each 130-MC provides one Ethernet port. This port, accessible at the communications NET
connector on the RT590, has the following primary functions and characteristics:
Function
Characteristics
Primary Function
This port performs high-speed transfer of data and status information. It can be used to
configure the 130-MC for real-time data connection (RTPD) and file transfer (FTP).
Configuration
The 130-MC Ethernet port address and mask can be configured using a terminal and
command line options.
Note: The SMCC program can be used to setup a Ethernet Port. The settings can be changed
using the provided displays.
Hardware Location
This port is accessible at the NET connector on the faceplate.
When the Ethernet Link is down and acquisition is turned on, data loss could occur if Ethernet
settings are not verified.
Note: To setup and check Ethernet Settings refer to the particular GUI program users guide you are using.
