IN-7900
23
P/N 3029099
Note: See the Installer’s Guide that came with your IR Receiver.
REMARQUE : Consultez le guide de l’installateur fourni avec votre récepteur IR.
NOTES:
DESCRIPTION: RECEIVER, I.R., THREE-ZONE 120V-127V, 220-240V (NON CE)
MANUFACTURER: LUTRON ELECTRONICS CO., INC.
MODEL NO.: QSGRJ-3P-TWH
NO. OF ZONES: 3
UNIT CAPACITY: 1600 WATTS/VA TOTAL (120V)
2400 WATTS/VA TOTAL (220-240V)
ENVIRONMENTAL: 32-104°F (0-40°C)
POWER: INPUT POWER: 120V, 220-240VAC
ZONE CAPACITY: STANDARD: 800 WATTS/VA PER ZONE (120V)
1200 WATTS/VA PER ZONE (220-240V)
LOAD TYPES: INCANDESCENT
FLUORESCENT (DIM OR NON-DIM)
REQUIRES RELIANCE P/N 29737 FLUOR.
DIMMING BALLAST INTERFACE, 220-240V
FLUORESCENT POWER MODULE 120-277V, 120V ONLY
RELIANCE P/N 29736
OR LED INTERFACE, 10V 100-277V
RELIANCE P/N 29738

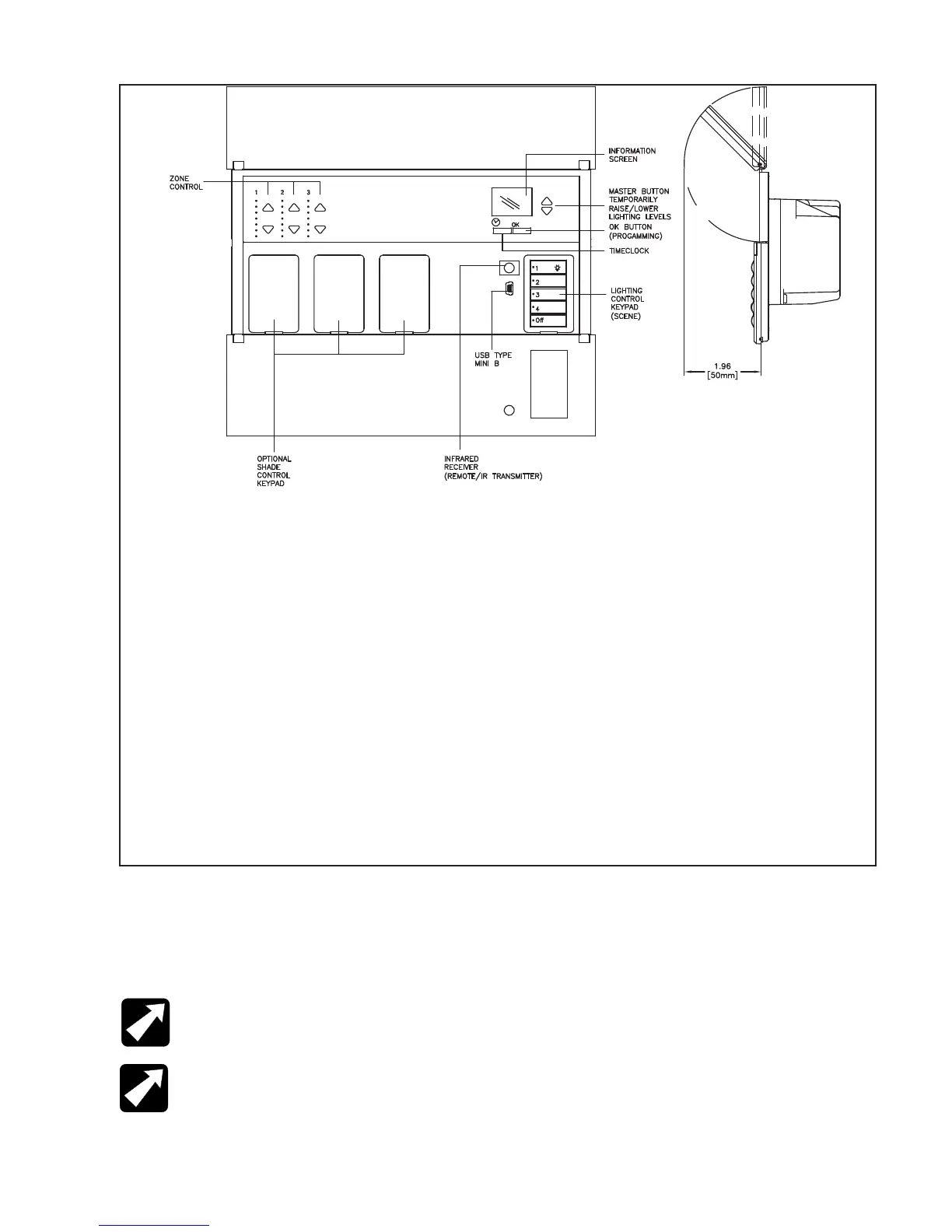

FIGURE 18
THREE-ZONE RECEIVER
