Reliance 7900 - Page 26

IN-790026
FIGURE 22

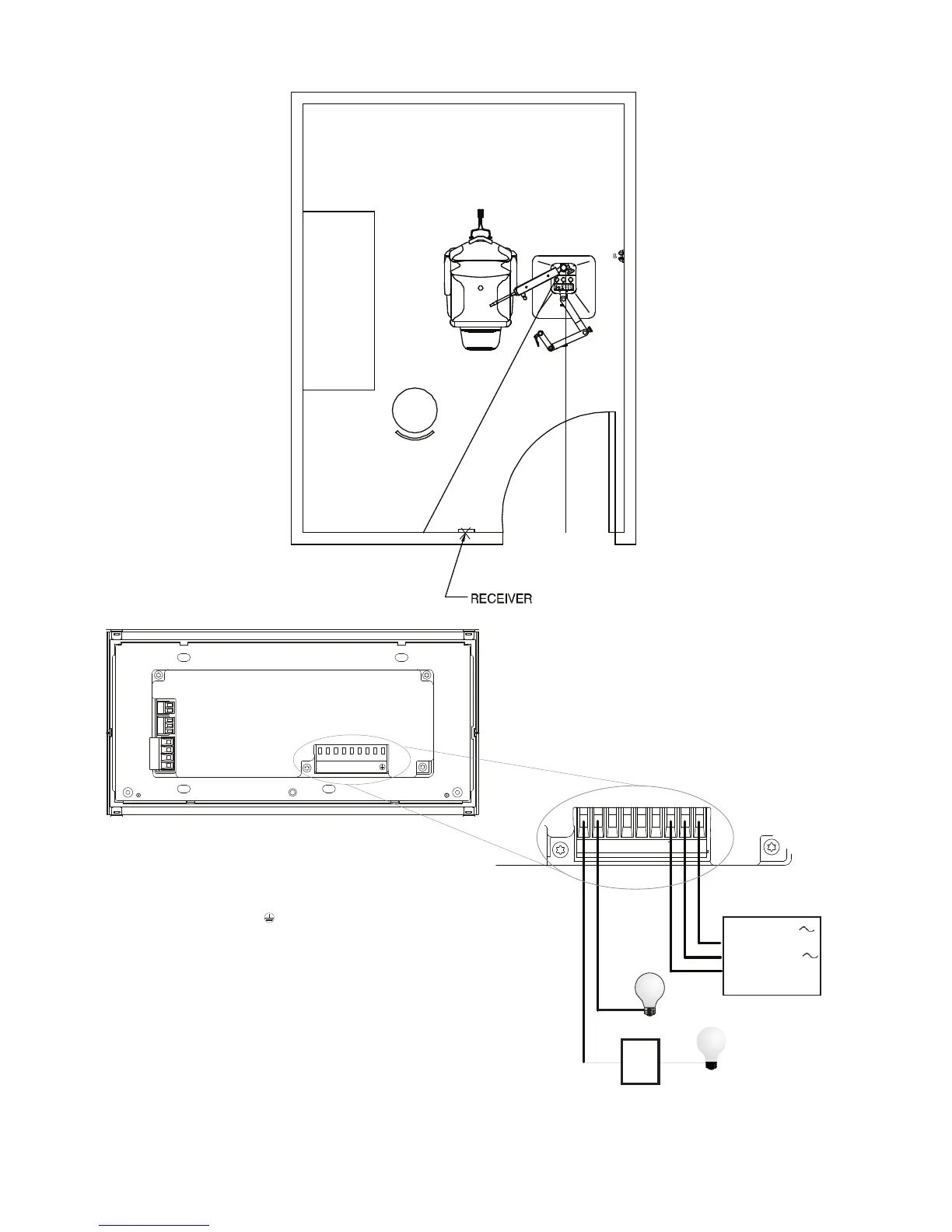

INSTALLATION DIAGRAM-THREE ZONE
1 2 3 4
1 2
A B C
1 2 345 6 L N
12 AWG (4.0 mm )
2
each terminal
120 - 127 V
or
220 - 240 V
Distribution
Panel
Line Voltage/Mains Cables and Load Wiring
Incandescent load
Load controlled
by power module
or interface
Terminal labels:
L: Hot/Live
N: Neutral
: Ground
1-6: Dimmed/Switched
line voltage outputs
Power module or
interface
