29

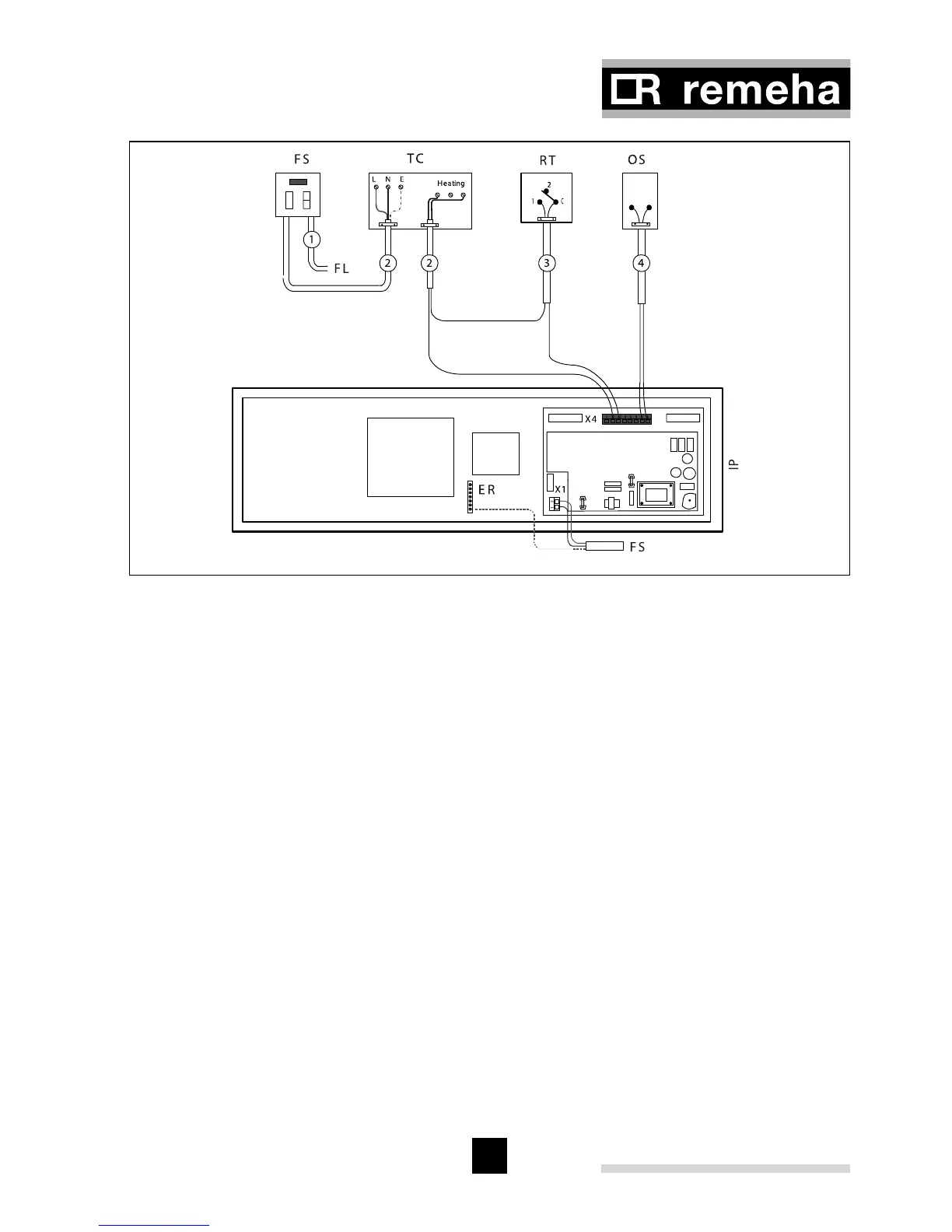

Fig. 17 Electrical drawing Selecta combi boiler (use in conjunction with hydraulical
drawing Fig. 14)
pdf
Legend
OS = outside sensor (optional)
FS = 3 amp permanent fused supply via boiler 3 core cable fly lead (not supplied)
FL = to boiler fly lead
TC = external time clock with volt free switching (not supplied)
RT = room thermostat (not supplied)
ER = boiler earth terminal
SC = stop cock
IP = rear view of boiler instrument panel
