Machine
Machine Volume
(W x D x H)
(mm)
Weight
(kg)
Working Volume
(W x H)
(mm)
Fixture Plate
(W x D)
(mm)
WV height from
base*
(mm)
Equator 300
570 × 500 × 700 25 300 × 150 305 × 305 1
Equator 300
Extended Height
570 × 500 × 850 27 300 × 150 305 × 305 151
Equator 500
1245 × 1165 × 1545 74 500 × 250 510 × 510 0
Equator 500
Extended Height
1245 × 1165 × 1695 75 500 × 250 510 × 510 150
*When using a 75 mm × Ø8 mm stylus.
When shorter styli are used, the ‘clearance' below the working volume is intended to allow for the use of
component holding fixtures, i.e. fixturing can be used without consuming any of the Equator's working volume.

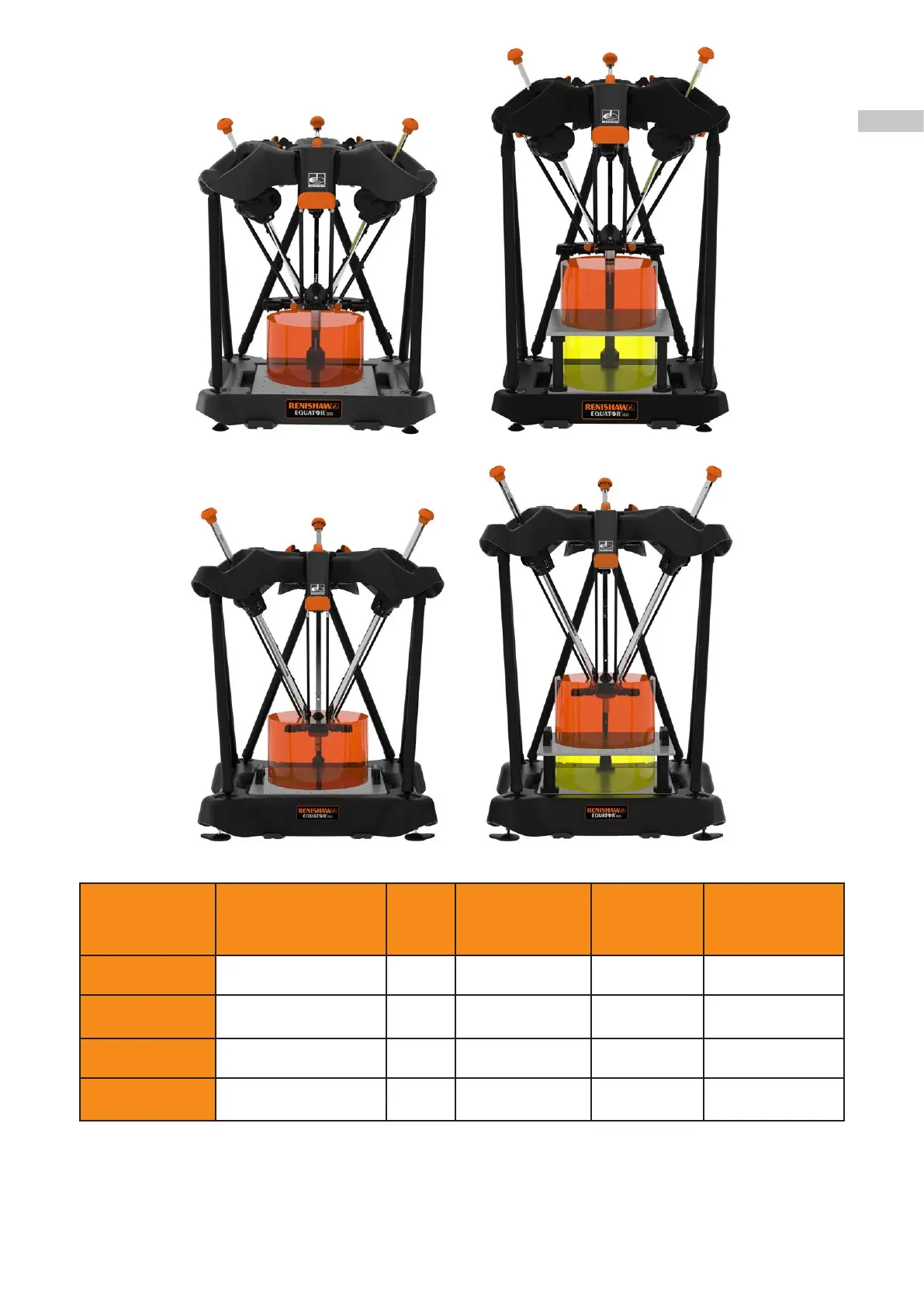

Equator™ 300 Equator™ 300 Extended Height
Equator™ 500 Equator™ 500 Extended Height
