User Manual
27

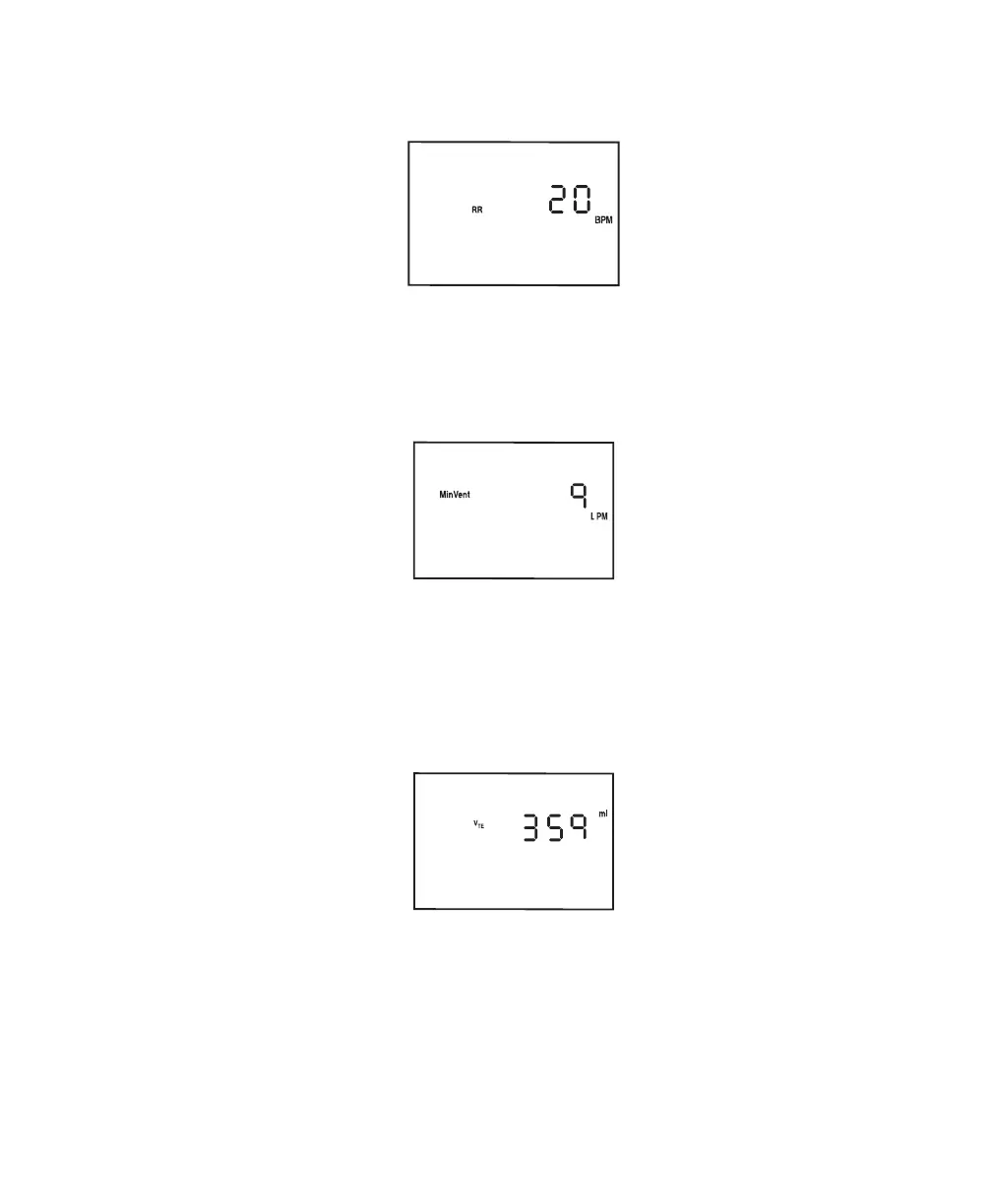

2. Respiratory Rate Screen
is screen, shown in Figure 6–14, shows the average rate of respiration for the previous six breaths.
Figure 6–14 Respiratory Rate Screen
3. Minute Ventilation Screen
is screen, shown in Figure 6–15, shows the estimated Exhaled Minute Ventilation (the volume of air
received on a per minute basis) based on the average of the previous six breaths.
Figure 6–15 Minute Ventilation Screen
NOTE: e value shown for Exhaled Minute Ventilation is an estimate.
4. Exhaled Tidal Volume Screen
is screen, shown in Figure 6–16, shows the estimated Exhaled Tidal Volume, which is the volume of
each breath.
Figure 6–16 Exhaled Tidal Volume Screen
NOTE: e value shown for Exhaled Tidal Volume is an estimate.
