5.10 Balancing the device with additional weight – only for PM100 and PM100CM

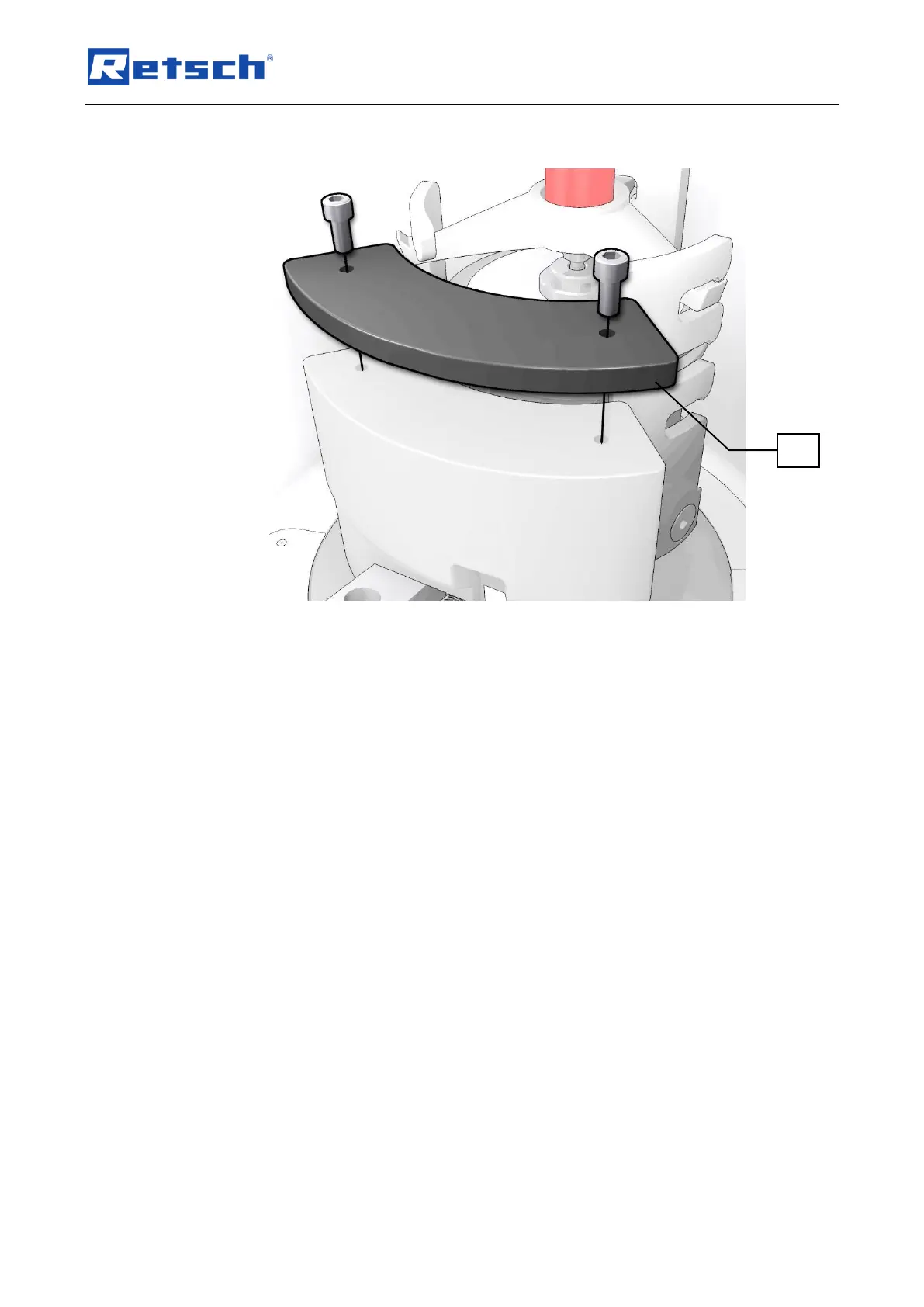

Fig. 19: Balancing the device
NOTICE
An additional 1 kg weight (EZ) is necessary when using the following grinding jars with safety
closing mechanism!
5.10.1 Combination 1:
- Grinding jar 250ml tungsten carbide 01.462.0222
- Safety closing mechanism 22.867.0004
- Grinding jar aeration cover 22.107.0006
5.10.2 Combination 2:
- Grinding jar 500ml zirconium oxide 01.462.0227
- Safety closing mechanism 22.867.0005
NOTICE
Under some circumstances (filling), it may be necessary to use the additional weight when
using the 500ml zirconium oxide 01.462.0227 grinding jar!
• If the additional weight is used (EZ), it is necessary to note that the scale no longer displays
the correct weight (see below).
– Order number additional weight: 22.221.0002
– To secure the additional weight it is necessary to remove the two protective caps on the top
of the counterweight.
• Screw the additional weight to the counterweight using
the two cylinder head bolts (EZ).
– Tightening torque for the cylinder head bolts = 20Nm.
• After fitting the additional weight, the additional mass of 1.0 kg must be taken into
consideration when reading off the scale!
Example:
If the grinding jar weighs 8.2 kg, the counterweight on the scale must be set to 7.2 kg.
