Operating the Device
36

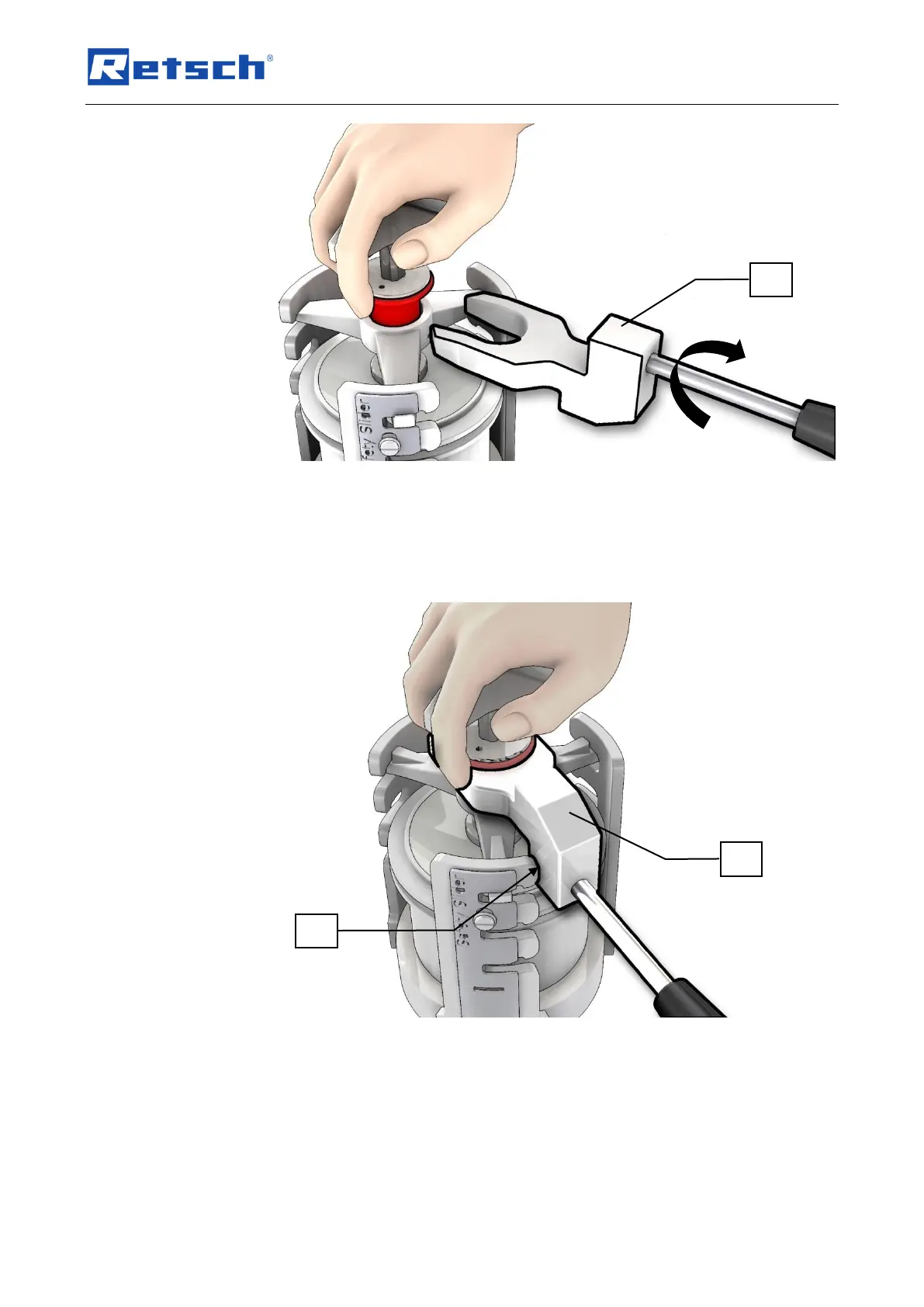

Fig. 22: Top latching position PM 200 – inserting the opening aid for the clamping unit
– With the PM 200, the opening aid for the clamping unit (KS) must be twisted 180° and
pushed in when the grinding jar clamping mechanism is in the top latching position.
– When inserting the opening aid for the clamping unit (KS), the locking sleeve (CA) is pushed
upwards and released.
Fig.
2
3: Loosening the clamping unit
• Rest the opening aid for the clamping unit (KS) on the latching bracket (P) when closing and
loosening.
KS
P
KS
