Accessories
49

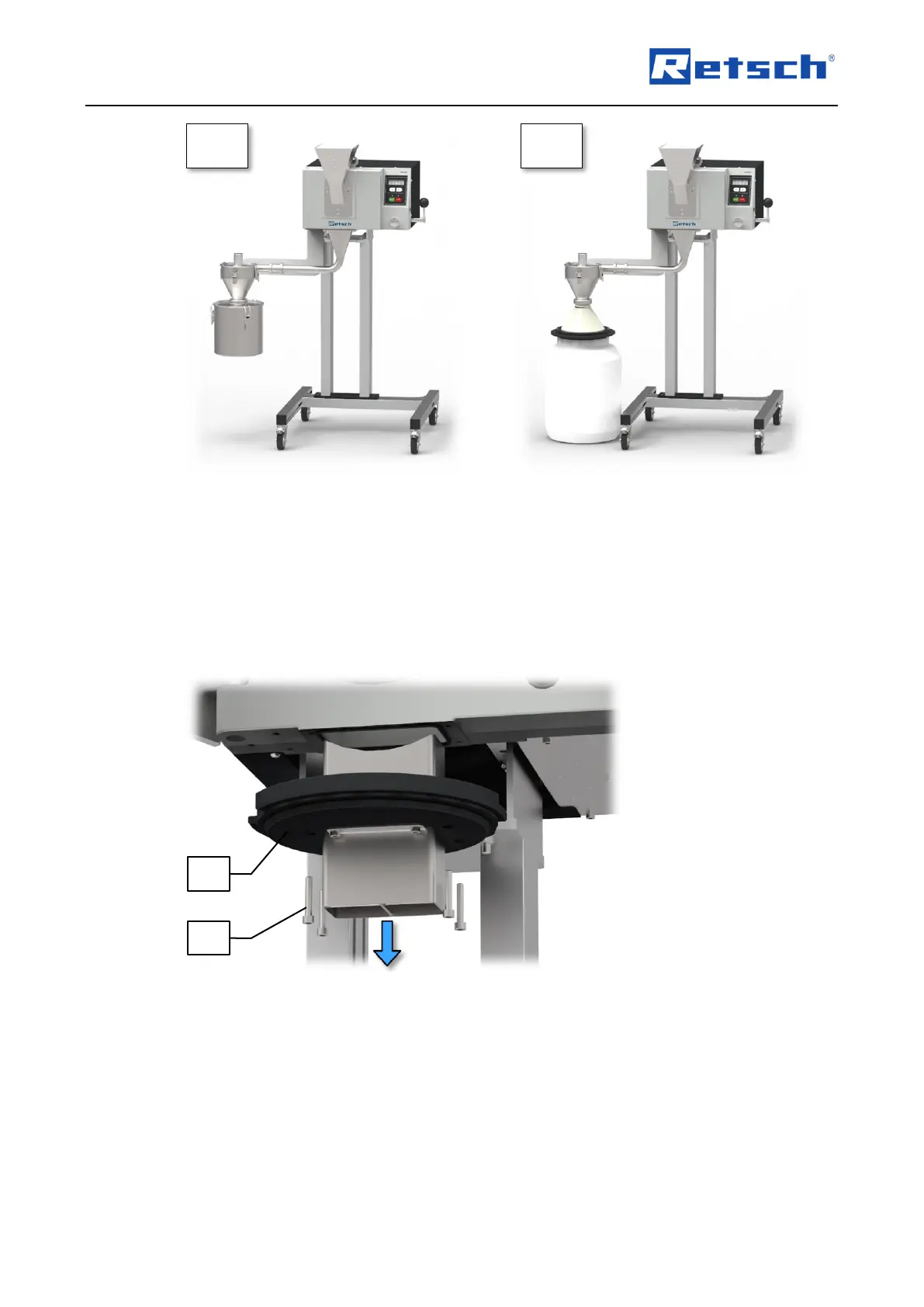

Fig. 38: SR 300 and cyclone separator with 5 l collecting receptacle (left) and 30 l collecting
receptacle (right)
When grinding light sample material, the SR 300 can be operated with a cyclone separator, so
that even light feed material or small quantities can be easily processed.
Depending on the amount of sample to be processed, the cyclone separator can be fitted with a
5 l or 30 l collecting receptacle.
Fig. 39: Removing the discharge flange
 Disconnect the device from the mains.
 Loosen the four M6x35 hexagon socket head screws (AF1).
 Remove the discharge flange (AF).
AF
AF1
5 l
30 l
