Accessories
50

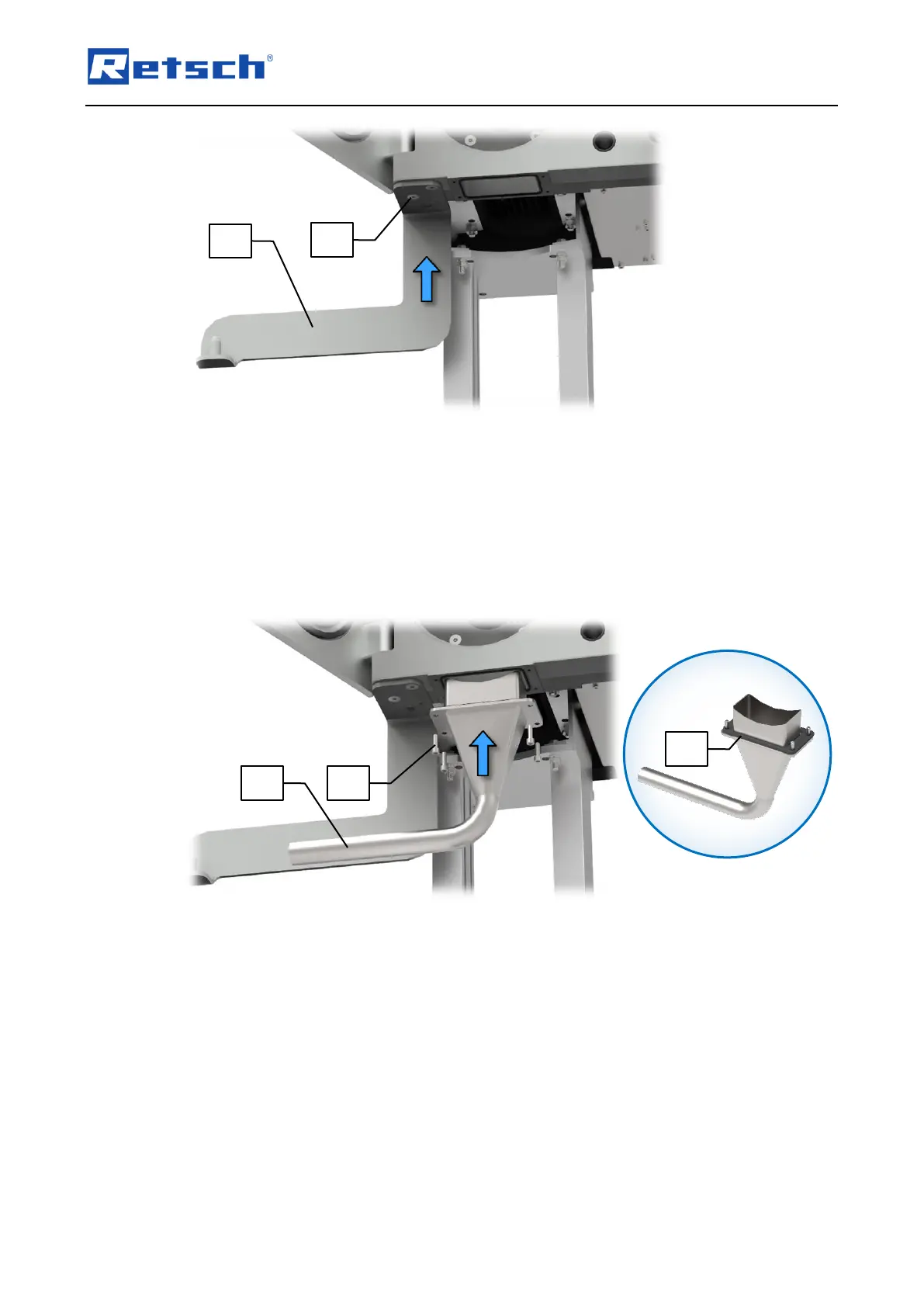

Fig. 40: Installing the mounting bracket
 Use the three supplied M8 hexagon socket countersunk head screws (ZY2) to bolt the
mounting bracket (ZY1) of the cyclone separator to the housing of the SR 300.
 Once installed, the mounting bracket (ZY1) does not need to be removed again for the
operation without cyclone separator. The discharge flange (AF) can also be reassembled
safely with the mounting bracket installed.
Fig. 41: Installing the cyclone adapter
 Fasten the cyclone adapter (ZY3) to the housing of the SR 300 with the four supplied M6x20
hexagon socket head screws (ZY4).
 Make sure that the sealing gasket (ZY5) rests correctly on the cyclone adapter.
ZY2
ZY1
ZY4
ZY3
ZY5
