Accessories
51

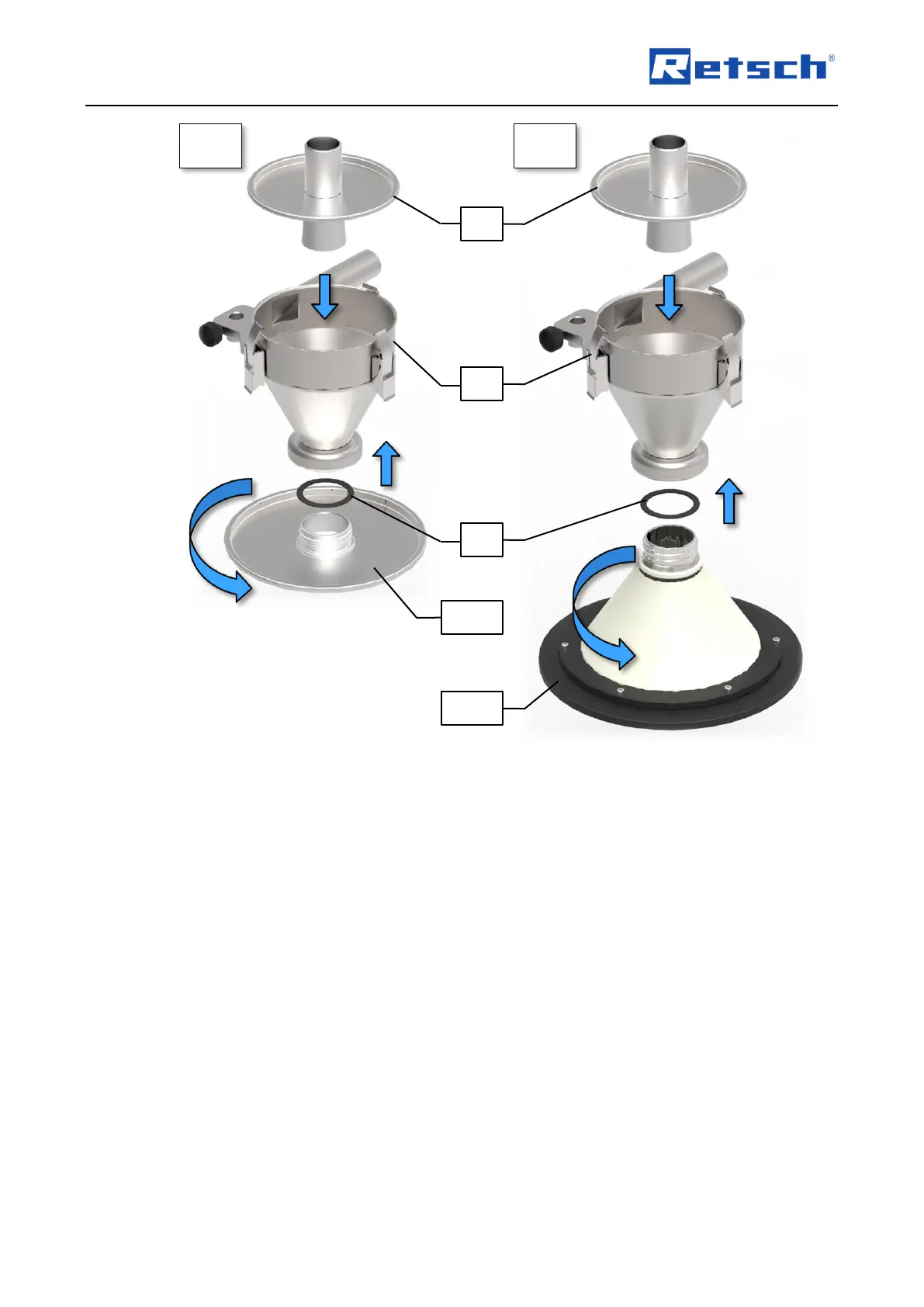

Fig. 42: Assembly of the cyclone funnel for the 5 l collecting receptacle (left) and the 30 l collecting
receptacle (right)
 Depending on the type of the cyclone separator, either screw the cover (ZY9.1) of the 5 l
collecting receptacle together with the sealing gasket (ZY8) into the socket of the cyclone
funnel (ZY7), or, in case of the 30 l collecting receptacle, screw the filter hose (ZY9.2)
together with the sealing gasket (ZY8) into the socket of the cyclone funnel (ZY7).
 Open the three snap locks on the cyclone funnel (ZY7), place the funnel cover (ZY6) onto
the cyclone funnel and close the three snap locks again.
ZY7
ZY6
ZY8
ZY9.1
ZY9.2
5 l
30 l
