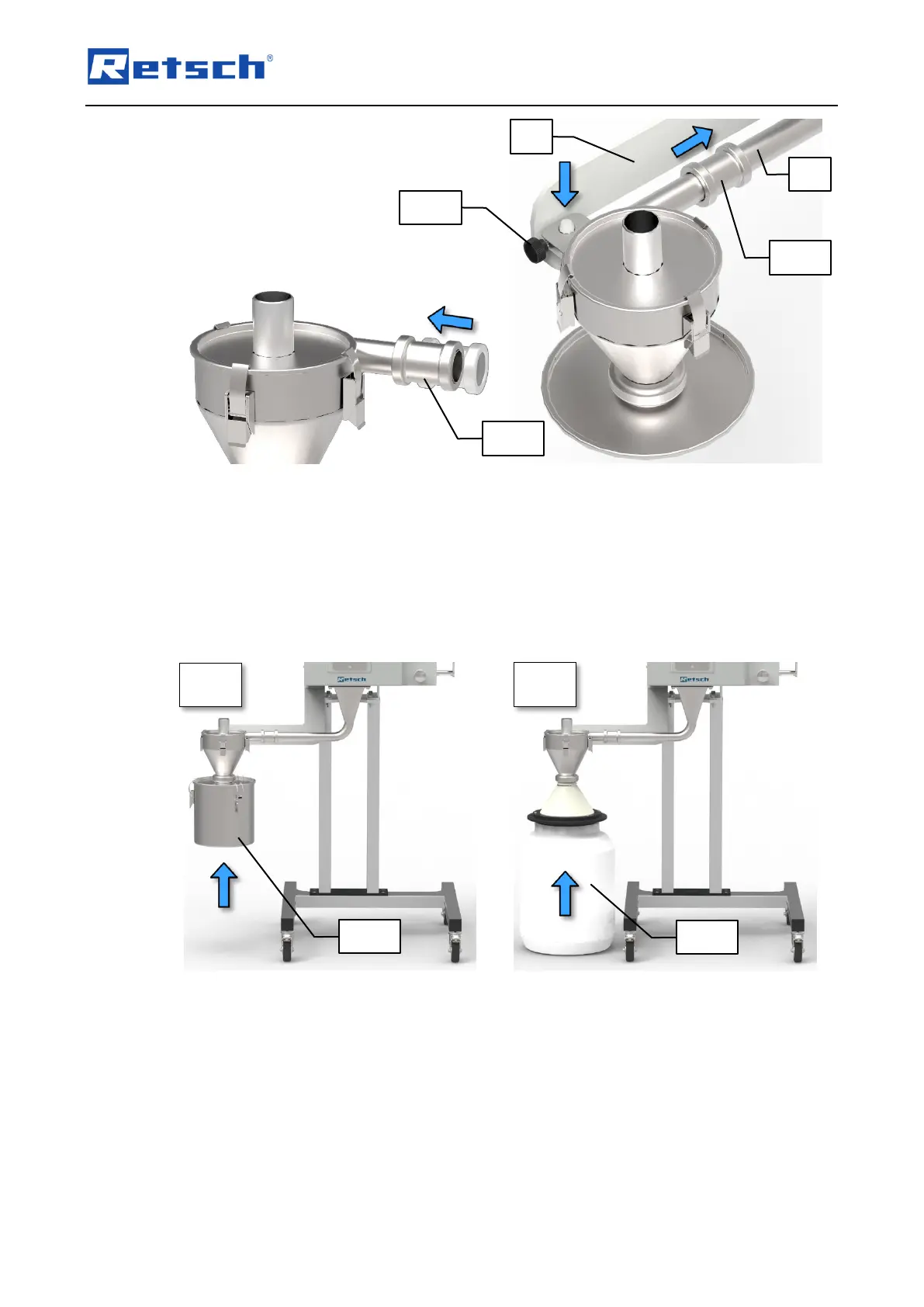

Fig. 43: Placing the coupling (left) and mounting the cyclone funnel (right)
Slide the coupling (ZY10) completely over the tube of the cyclone funnel.
Mount the assembled cyclone funnel into the mounting bracket (ZY1) and align it to the
cyclone adapter (ZY3).
Slide the coupling (ZY10) over the cyclone adapter (ZY3) until it is situated half on the tube
of the cyclone funnel and half on the cyclone adapter.
Secure the assembled cyclone funnel by means of the knurled head screw (ZY11).
Fig. 44: Inserting the 5 l (left) and 30 l collecting receptacle (right)
Depending on the type of the cyclone separator, clamp the 5 l collecting receptacle (ZY12.1)
to the cover (ZY9.1) by means of the three snap locks, or place the 30 l collecting receptacle
(ZY12.2) underneath the filter hose (ZY9.2) so that its flange rests on the opening of the
collecting receptacle.
