REYMSA COOLING TOWERS, INC.
www.reymsa.com
6
K. Remove fan guard.
L. Then cradle/straddle the fan support with the straps (as shown in figure A-11) so you can lift the fan
duct with a crane and assemble it.
M. Now place the fan duct on the receiving flange of the upper section; make sure the bolt holes and the
marks inside the fan duct and the distribution manifold (located inside of body section) are aligned (see
Figure A-11 and A-12). Secure it with the stainless steel nut and bolt sets supplied by REYMSA.

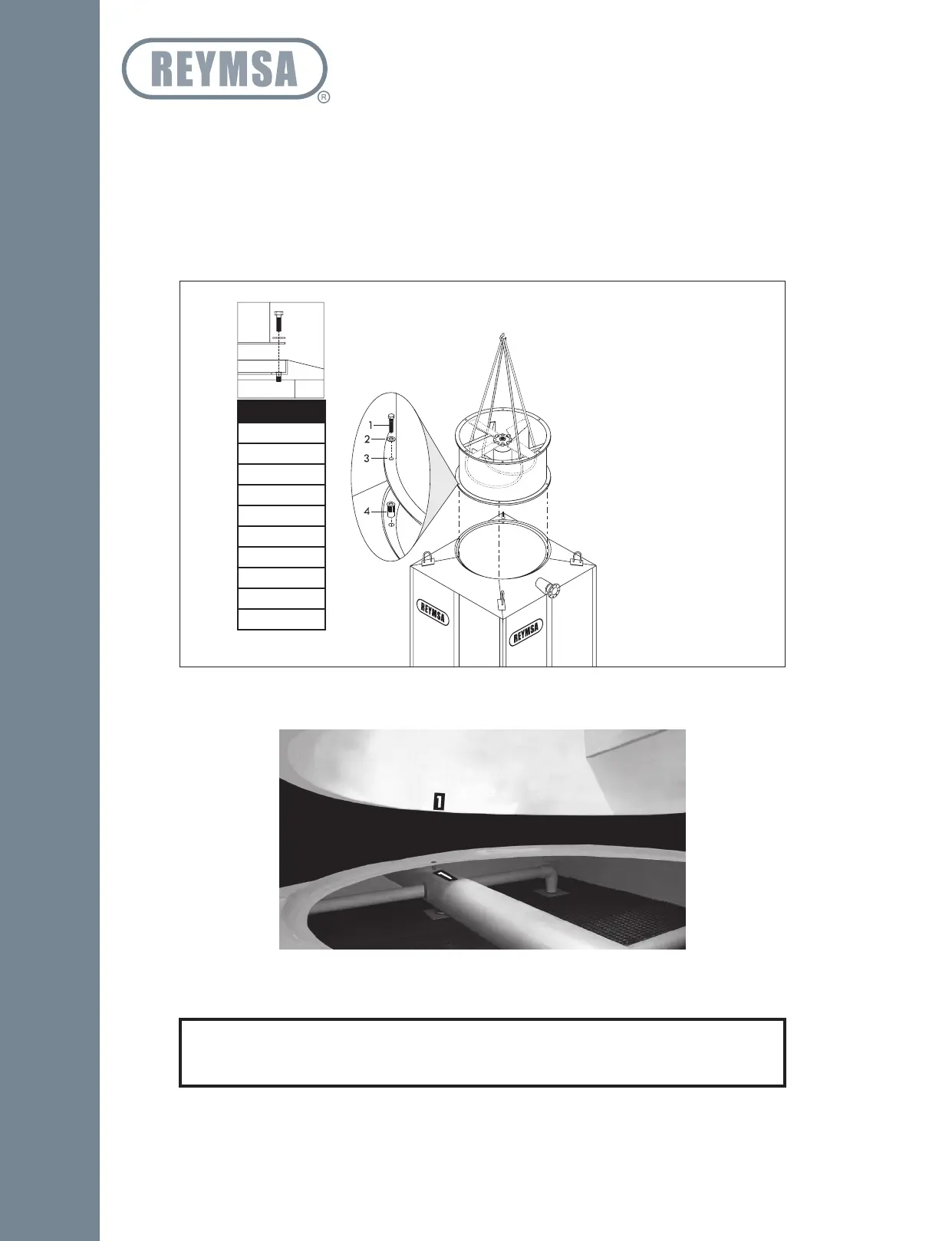

Figure A-12: Fan Duct alignment for a Single Fan Tower
RECESSED FLANGE
Figure A-11: Fan Duct assembly for a Single Fan Tower
ASSEMBLY HOLES
1. 1/2” X 2.5” Bolt
2. 1/2” Flat Washer
3. 5/8 Hole
4. 1/2” Screw Insert (factory assembled)
MODELS
RT-303
RT-404
RT-505
RT-606
RT-707
RT-708
RT-709
RT-808
RT-810
RT-812
NOTE
If your Tower is for a low sound application and it includes a fan adaptor please see
Section “A.7 LOW SOUND FAN COOLING TOWERS: FAN ADAPTORS”.
Installation
