A.6.2 LARGE SIDE ARRANGEMENT FOR A MODULAR TOWER (RTGM-L)
The following steps are a procedure to install an RTGM Modular Tower with arrangement by the large side.
Follow the same instructions from section “A.6.1 GENERAL PROCEDURE” to assemble the modules.

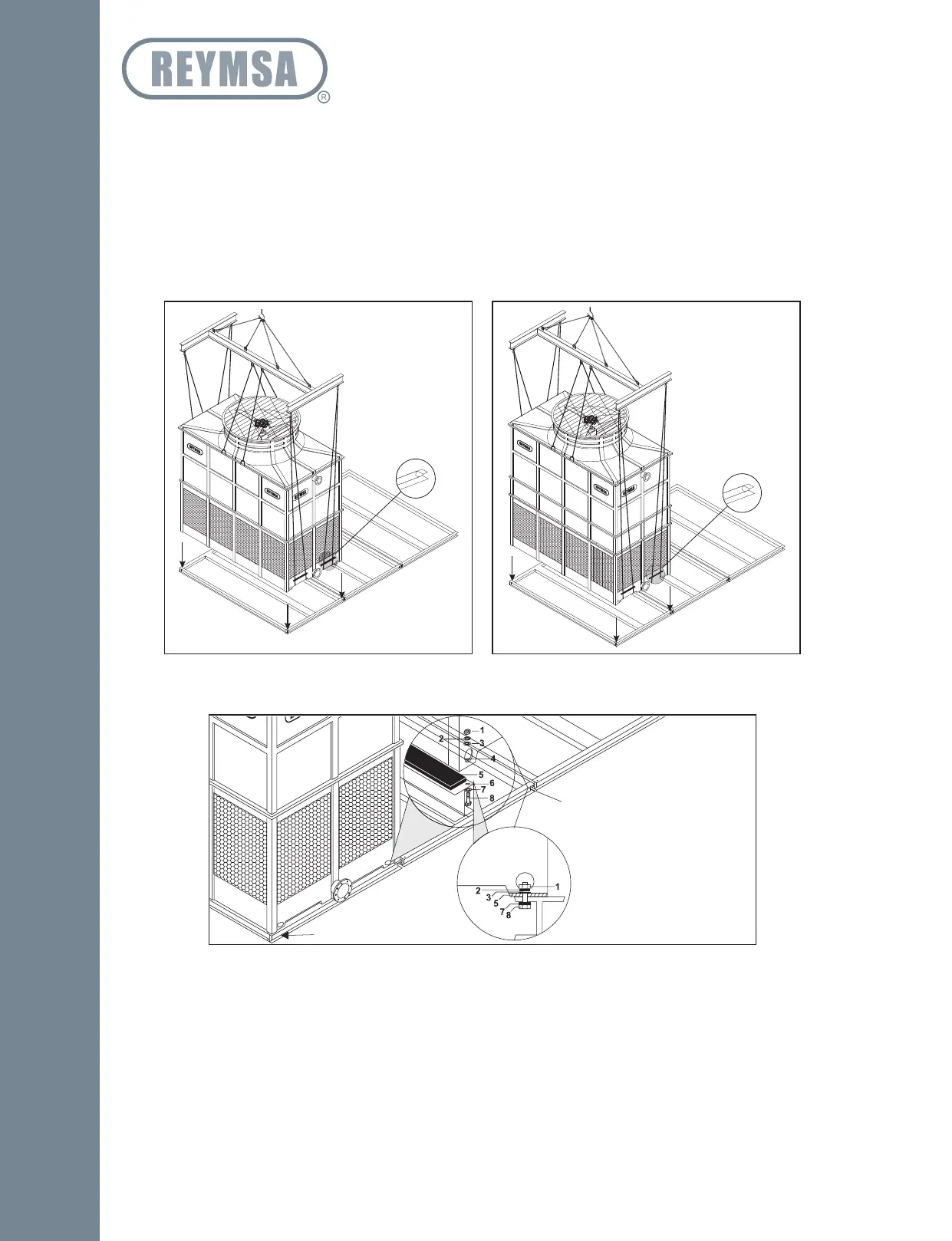

A. Once the basin and body sections have been assembled, lift the Tower using a crane and a spreader
bar and place it on top of the isolation pad and the steel base structure (see Figure A-82 and Figure
A-83). Secure it with the stainless steel nut and bolts sets (supplied by others) as shown on Figure A-84.
RTGM-B-L
Figure A-82: T1 module lifting and installation
(RTGM-B-L)
RTGM-D-L
RTGM-E-L
Figure A-83: T1 module lifting and installation
(RTGM-D-L & RTGM-E-L)
Steel base support
(supplied by others)
4 ANCHORAGE HOLES
(ONE ON EACH CORNER)
1. 3/4” Nut
2. 3/4” Lock Washer
3. 3/4” Flat Washer
4. 3/4” Anchorage Holes
5. Isolation Pad
6. ≈1” Hole
7. 3/4” Flat Washer
8. 3/4” X 3” Bolt
(Supplied by others)
Figure A-84: Typical anchorage for a modular tower (RTGM)
Installation
