I. Assemble body section #1 (for RTM-B) with the basin section #1, making sure that the bolt holes on
body section #1 are aligned with the perforations on basin section #1, then bolt down and secure the
horizontal flanges with the stainless steel nut and bolt sets supplied by REYMSA (see Figure A-55 for
reference).
J. Only for RTM-D models: Assemble Lower Body section #1 on top of basin section #1, make sure that
the bolt holes on Lower Body section #1 are aligned with the perforations on basin section #1, then bolt
down and secure the horizontal flanges with the stainless steel nut and bolt sets supplied by REYMSA
(see Figure A-56).
K. Only for RTM-D models: Remove U-bolts from Lower Body section before installing the next section (see
Figure A-57). Place Upper Body section #1 on top of Lower Body section #1, making sure that the bolt
holes are aligned (see Figure A-58). Bolt down and secure the horizontal flanges with the stainless steel
nut and bolt sets supplied by REYMSA.

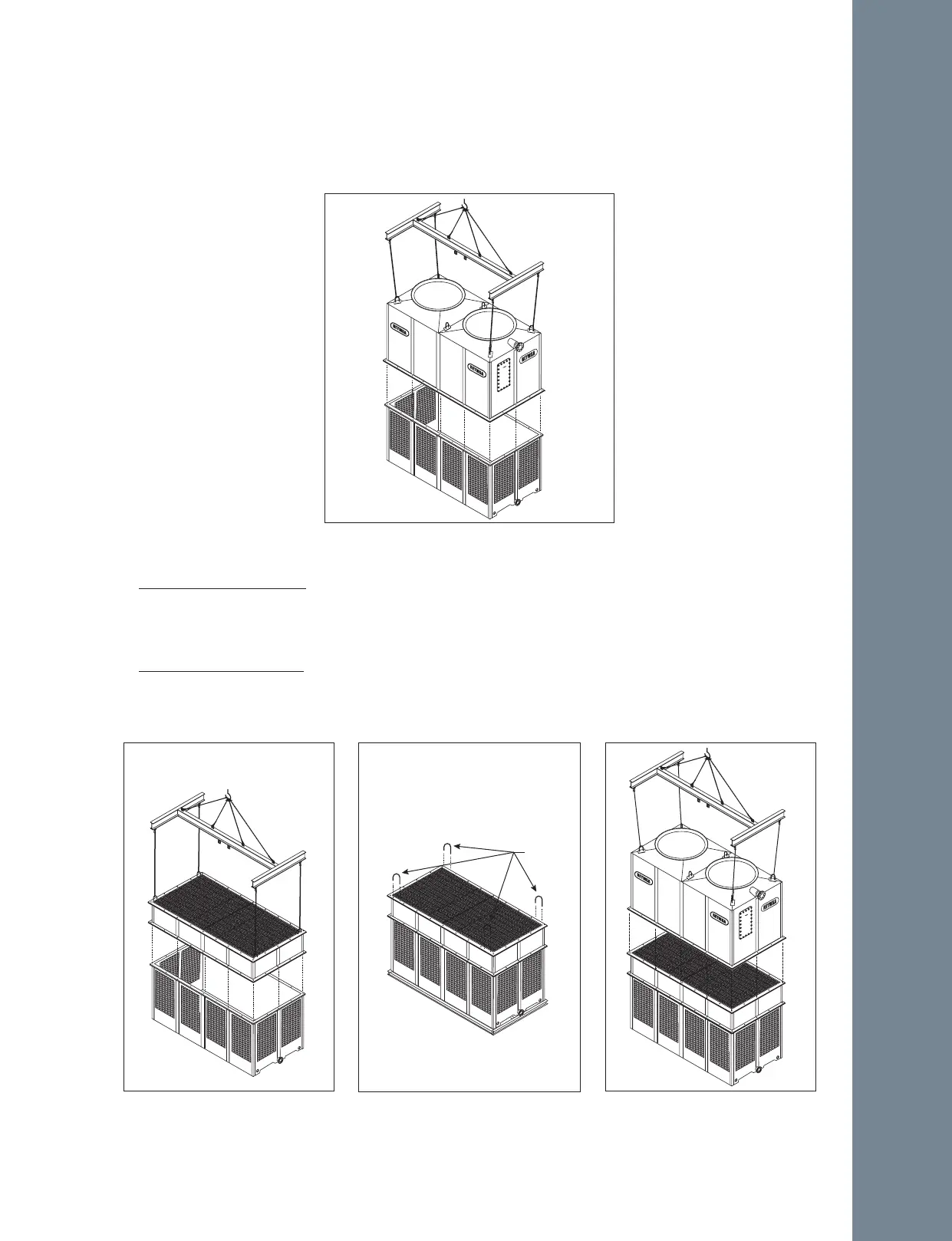

Figure A-55: Body section assemble for a Modular
Tower (RTM-B)
Figure A-56: Lower body section
assemble for a Modular Tower
(RTM-D)
Figure A-58: Upper body section
assemble for a Modular Tower
(RTM-D)
Figure A-57: Removing U-bolts from
Lower Body section of a Modular
Tower (RTM-D)
Remove
