REYMSA COOLING TOWERS, INC.
www.reymsa.com
22
F. Place the basin section of the Tower on top of the isolation pad and the base structure; Secure it with the
stainless steel nut and bolt sets (supplied by others) as shown on Figure A-47.
G. After the basin has been set in place, remove the U-bolts located on the flange before installing the next
section (see Figure A-48).
H. Only if your Tower is an RTG-D or RTG-E model: It includes an additional part of body section (Lower
Body section). Place Lower Body section on top of basin section, then bolt down and secure the horizontal
flanges with the stainless steel nut and bolt sets supplied by REYMSA (see figure A-49).
I. After the Lower Body section has been set in place, remove the U-bolts located on the flange before
installing the Upper Body section (see Figure A-49).
J. Assemble the body section (Upper Body section for RTG-D or RTG-E) with the basin section (Lower Body
section for RTG-D or RTG-E). The body section comes assembled with u-bolts for lifting; then using a crane
assemble both parts, use a drift pin to align bolt holes as the sections are being set (See figure A-50).
Make sure that the hot water inlet, and the cold water outlet are on the same side of the Tower when
assembled.
K. After installing the body, remove the U-bolts before installing the Fan Deck (see Figure A-50).

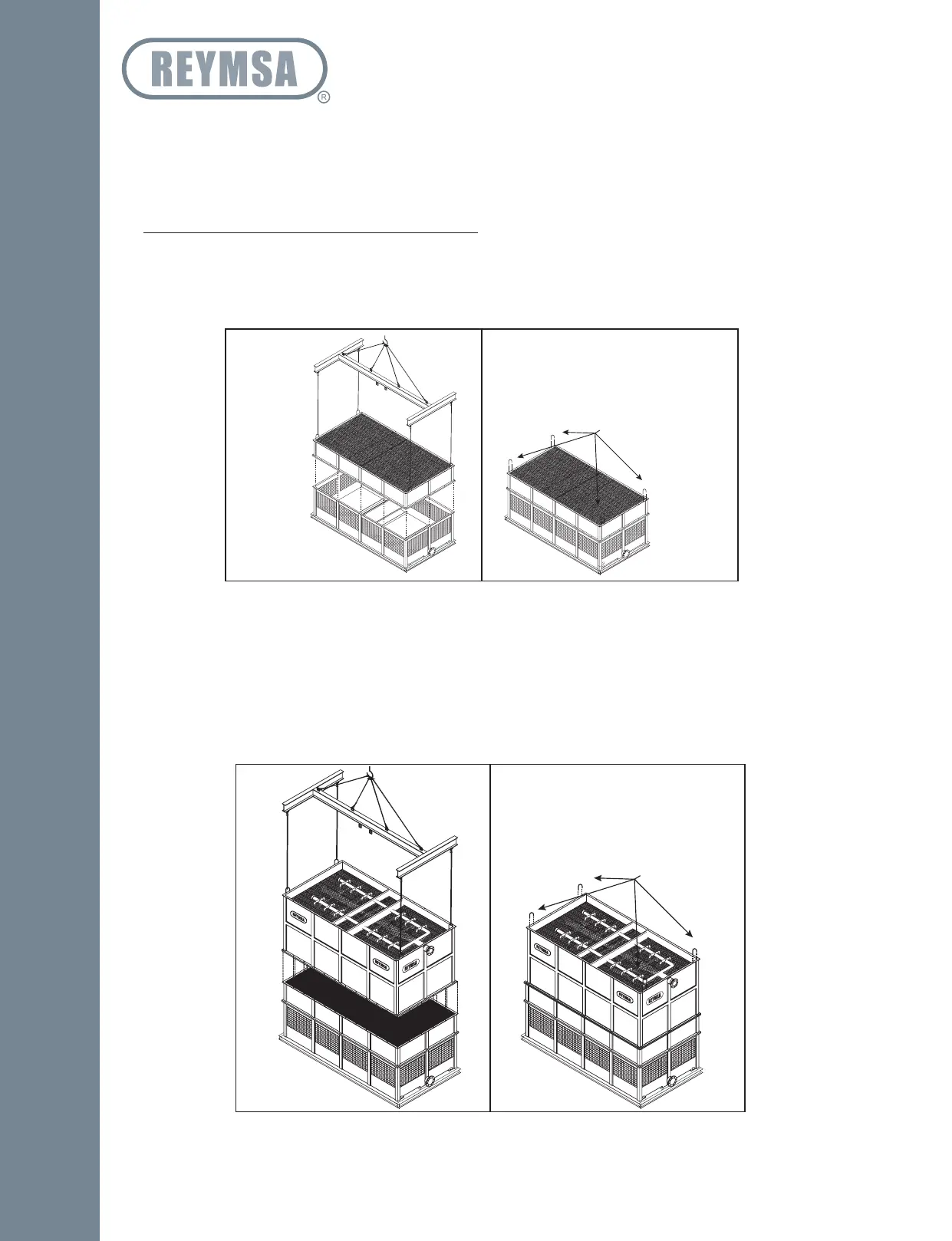

Figure A-49: Lower body section installation for an RTG-D & RTG-E models.
Remove
Figure A-50: Upper Body section installation for an RTG-D or RTG-E models.
Remove
