REYMSA COOLING TOWERS, INC.
www.reymsa.com
16
H. Remove fan guard.
I. Then cradle/straddle the fan support with the straps (as shown in figure A-36) so you can lift the fan
duct with a crane and assemble it.
J. Now place the fan duct on the receiving flange of the upper section; make sure the bolt holes and the
marks inside the fan duct and the distribution manifold (located inside of body section) are aligned (see
Figure A-36 and A-37). Secure it with the stainless steel nut and bolt sets supplied by REYMSA.

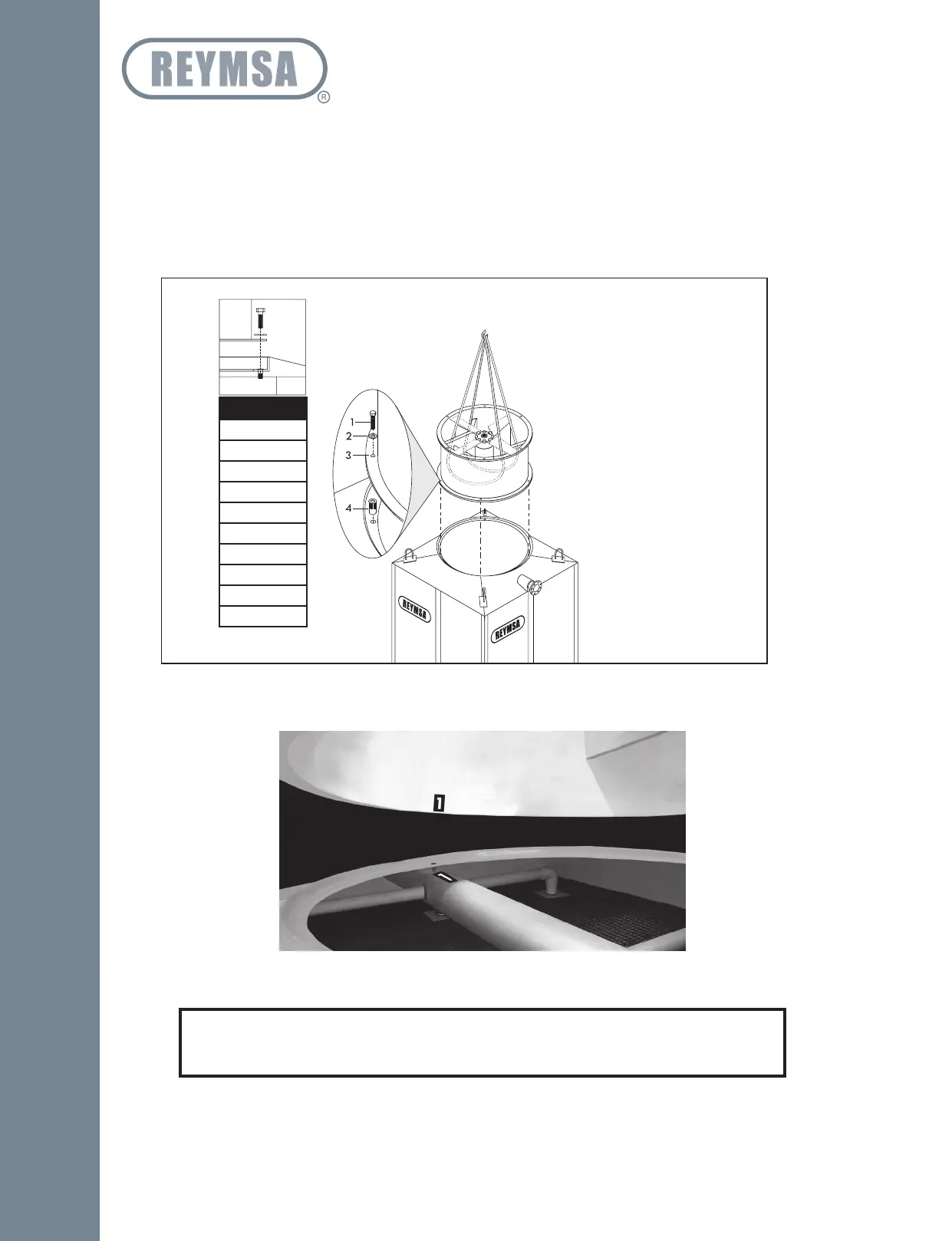

Figure A-37: Fan Duct alignment for a Single Fan Tower
RECESSED FLANGE
Figure A-36: Fan Duct assembly for a Single Fan Tower
ASSEMBLY HOLES
1. 1/2” X 2.5” Bolt
2. 1/2” Flat Washer
3. 5/8 Hole
4. 1/2” Screw Insert (factory assembled)
MODELS
RTU-303
RTU-404
RTU-505
RTU-606
RTU-707
RTU-708
RTU-709
RTU-808
RTU-810
RTU-812
NOTE
If your Tower is for a low sound application and it includes a fan adaptor please see
Section “A.7 LOW SOUND FAN COOLING TOWERS: FAN ADAPTORS”.
Installation
