APPENDIX A: EXAMPLE OF UNLOADING A COOLING TOWER FROM A
CONTAINER.
A. The body and duct sections are attached to the container. Make sure to unpin the Cooling Tower parts
before unloading it. See Figure AP-1.
B. Make sure to remove the wooden blocks that keep the duct’s boxes in place. Proceed to unload the duct,
pulling the wooden skid to the edge of the container. If you don’t have special equipment, use a steel
cable to grab the wooden skid. Make sure to secure the steel cable on the strong support of the wooden
skid. REYMSA recommends to use a forklift to unload the duct.

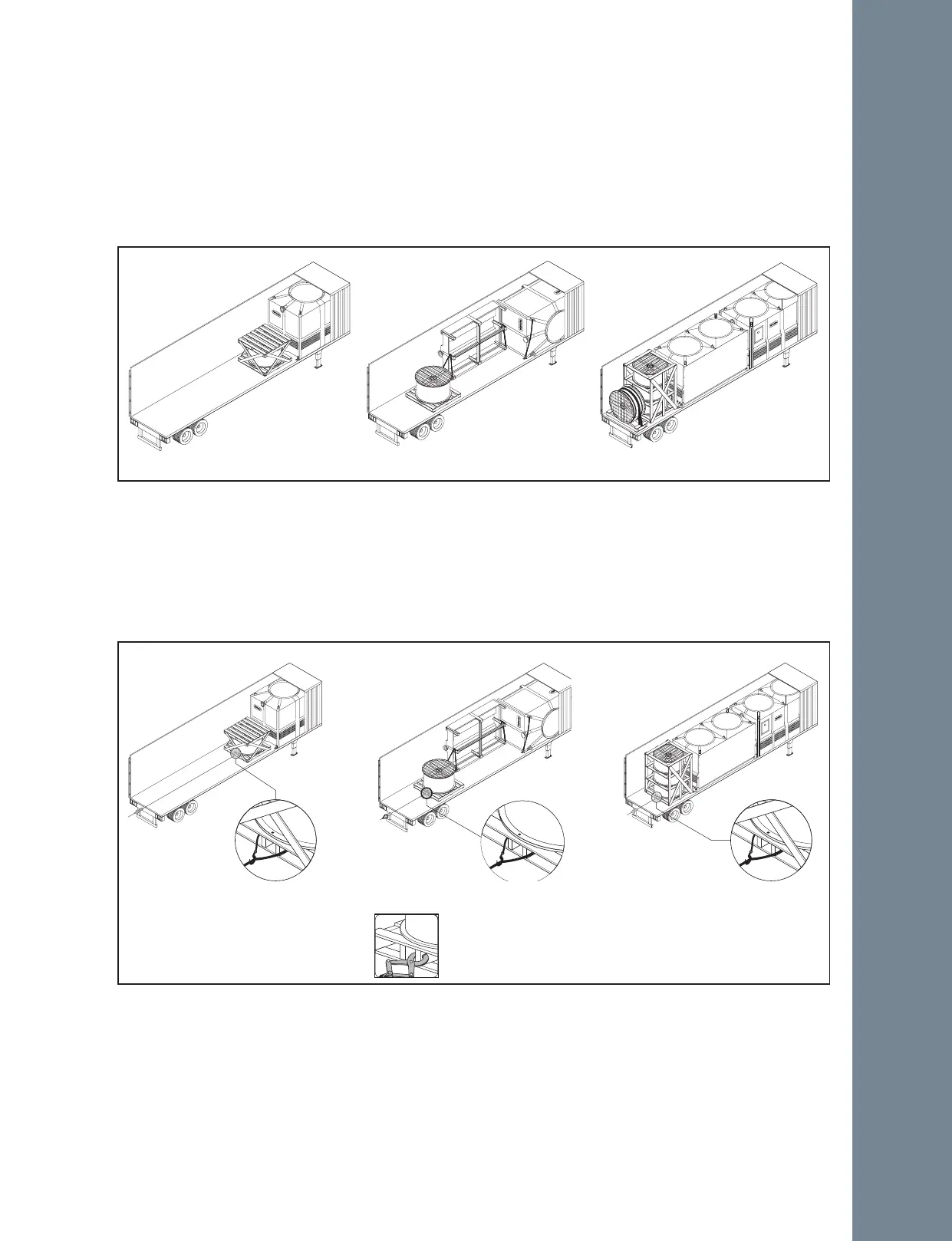

Figure AP-1: Unloading a Cooling Tower from a container
Single Fan model
Quadruple Fan model
Single Fan, 3 pieces model
Figure AP-2: Unloading the fan duct from a container
Use a clamp at the end to
grip the wooden skid.
Single Fan model Single Fan, 3 pieces model Quadruple Fan model
