REYMSA COOLING TOWERS, INC.
www.reymsa.com
78
C. Once the wooden skid is on the edge, proceed to lift and take out the fan duct. See Figure AP-3.
D. Some models are shipped in a two-piece body. Basin section is mounted metal skids to protect and
facilitate unloading. Use a steel cable to grab the metal skids and drag it to the edge of the container
and leave half of basin section inside the container. See Figure AP-4.
E. Use a forklift to support the basin section from one end while a second forklift will support it from the
large side and then place it on the floor. See figure AP5. Remove metal skids only if the Tower will be
assembled.
F. Repeat step “E” to unload the Body section. Remove metal skids only if the Tower will be assembled.
G. Secure the body section from the U-bolts and lift it slowly to set it in position for installation (see Figure
AP-6). Maintain a minimum of 60° between the strap and the horizontal. Then assemble the Tower using
a crane. Secure the sections with stainless steel bolt and nuts supplied by REYMSA.

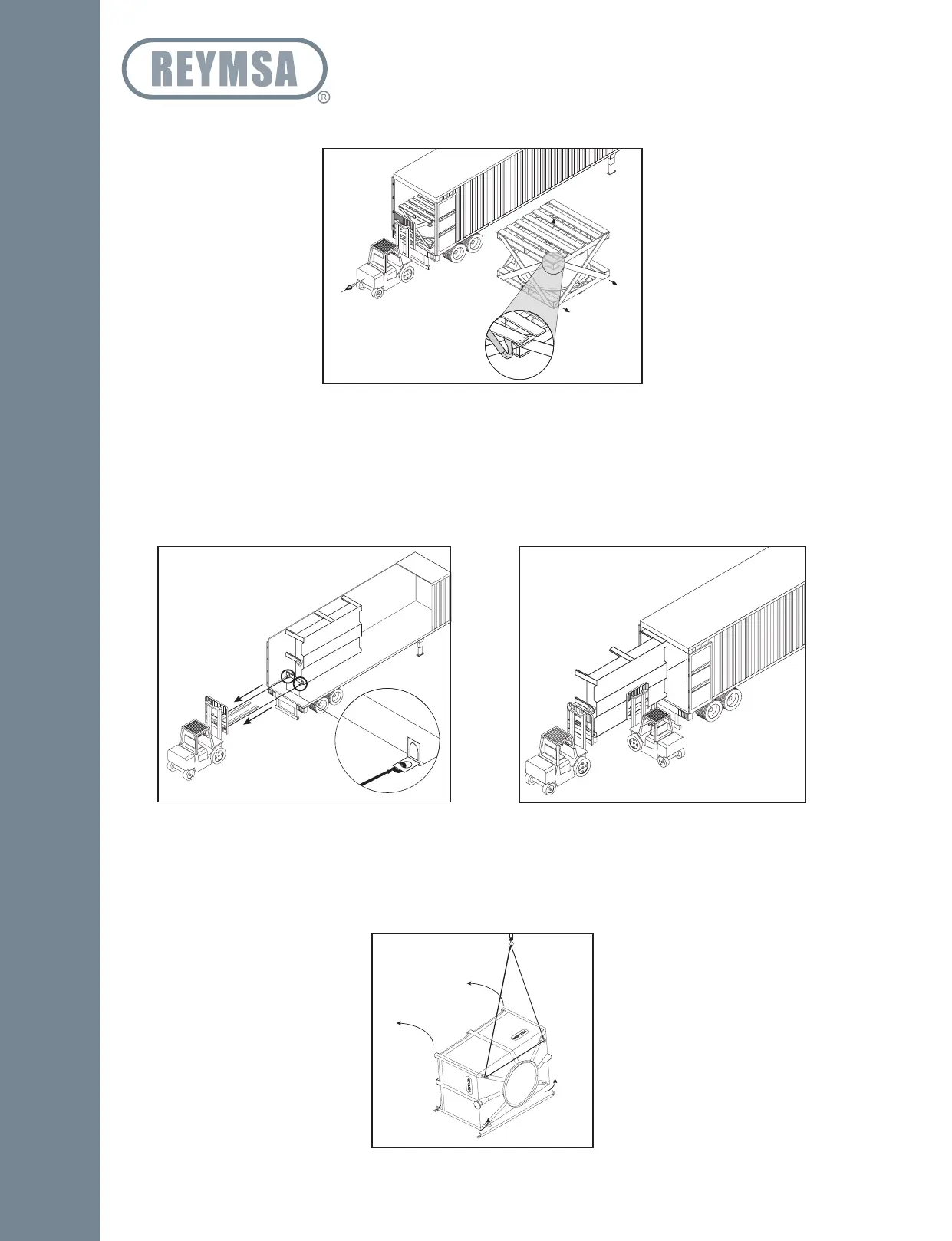

Figure AP-3: Lifting the fan duct with a forklift
Use a bar to take
out the tables
Figure AP-4: Pulling the basin out from a container Figure AP-5: Unloading the basin with two forklifts
Figure AP-6: Positioning the body section with a crane
Appendix
