REYMSA COOLING TOWERS, INC.
www.reymsa.com
8

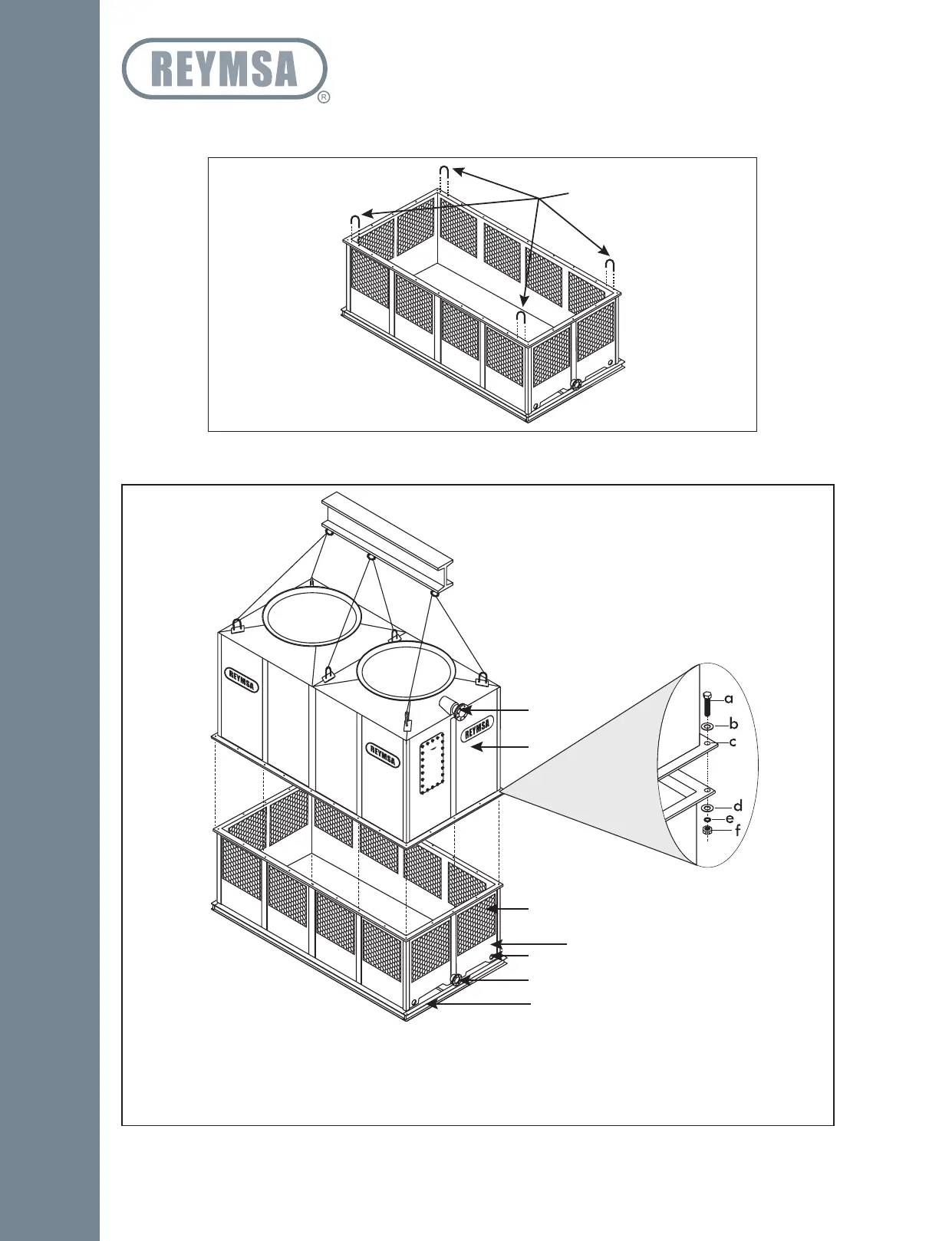

G. After the basin has been set in place, remove the U-bolts located on the flange before installing the next
section (see Figure A-16).
Remove
Figure A-16: Removing U-bolts from basin for a Double Fan Tower
Figure A-17: Body and basin sections installation for a Double Fan Tower (RT-A, RT-B, RT-C)
1. Hot Water Inlet
2. Body Section
3. 4 Anchorage Holes (one on each corner):
d. 1/2” X 2.5” Bolt
a. 1/2” Flat Washer
b. 5/8” Hole
c. 1/2” Flat Washer
d. 1/2” Lock Washer
e. 1/2” Nut
4. Louvers
5. Basin Section
6. Anchorage Holes
7. Cold Water Outlet
8. Steel Base Support (supplied by others).
1
2
3
4
5
6
7
8
RT-A, RT-B & RT-C
Installation
