A.5.2 LARGE SIDE ARRANGEMENT FOR A MODULAR TOWER (RTM-L)
The following steps are a procedure to install an RTM-B or RTM-D Modular Tower with arrangement by the
large side.
Follow the same instructions from section “A.5.1 GENERAL PROCEDURE” to assemble the modules.
A. Once the basin and body sections have been assembled, lift the Tower using a crane and a spreader bar
and place it on top of the isolation pad and the steel base structure. Secure it with the stainless steel nut
and bolts sets (supplied by others) as shown on Figure A-59 and Figure A-60.
B. Repeat the previous steps to install the remaining modules. Pay attention to the correct module
arrangement; Each module is labeled alphabetically (module 1: A; module 2: B, etc.) for a proper
installation (see Figure A-61 and Figure A-62).
▪ First module assembled should be T1 module, with 3 air inlet sides (2 short sides, 1 large side).
▪ Next module(s) must be T2 module, with 2 air inlet sides (short sides).
▪ The final module must be T1 type module, with 3 air inlet sides (2 short sides, 1 large side).

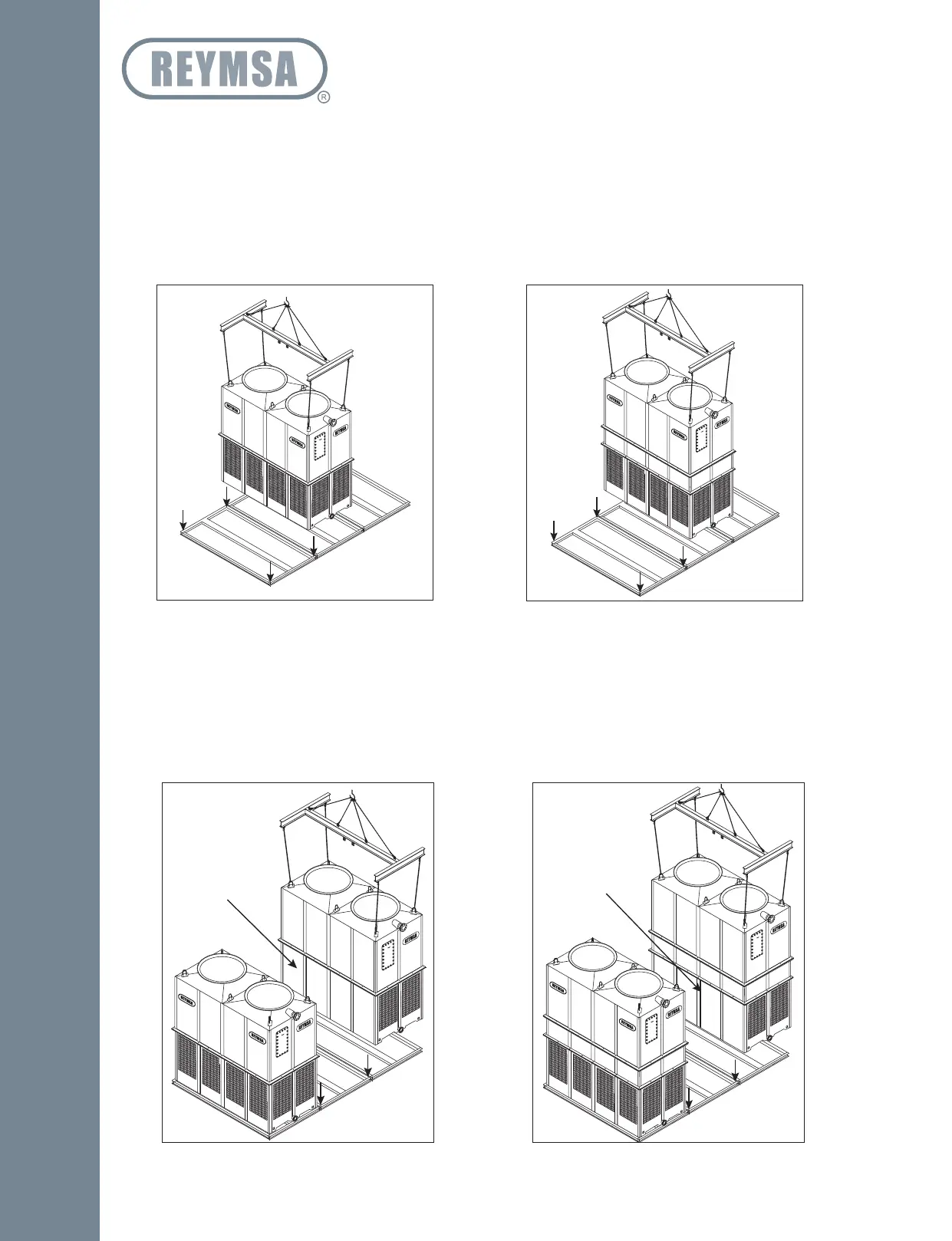

Figure A-59: T1 module lifting and installation (RTM-B-L)
Figure A-60: T1 module lifting and installation (RTM-D-L)
Figure A-61: T2 module lifting and installation (RTM-B-L)
No air inlet
(T2 module)
Figure A-62: T2 module lifting and installation (RTM-D-L)
No air inlet
(T2 module)
