A.6.3 SHORT SIDE ARRANGEMENT FOR A MODULAR TOWER (RTGM-S)
The following steps are a procedure to install an RTGM Modular Tower with arrangement by the short side.
Follow the same instructions from section “A.6.1 GENERAL PROCEDURE” to assemble the modules.
A. Lift the first module using a crane and a spreader bar and place it on top of the isolation pad and the
steel base structure. Secure it with the stainless steel nut and bolts sets (supplied by others) as shown on
Figure A-89.
B. Follow the same procedure to install the next module. This module should have only two air inlets (on the
large sides). See Figure A-90 for reference.
C. Lift and install the last module. This module should have 3 air inlet sides (two large sides and one short
side). See Figure A-91 for reference.
T1 Module

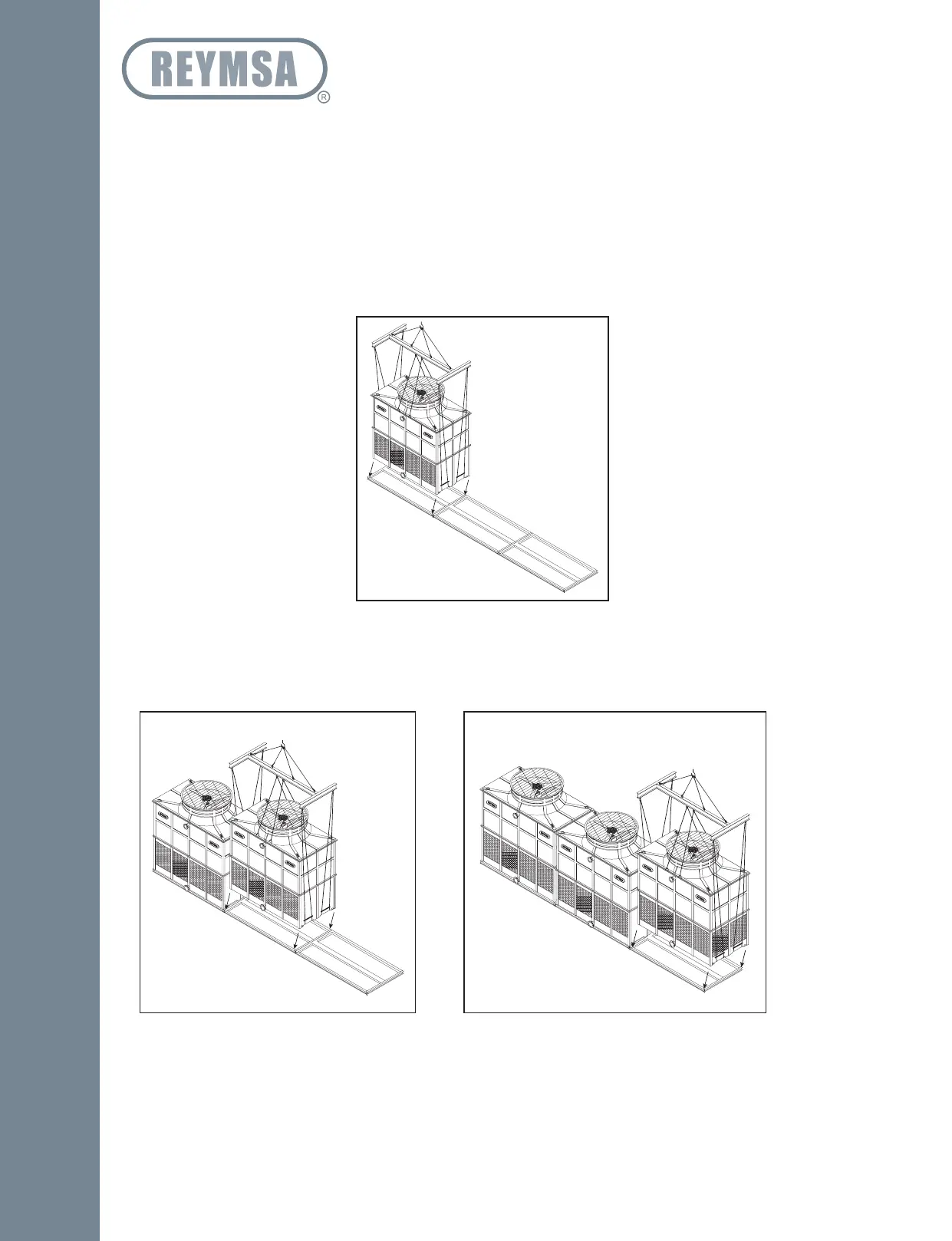

Figure A-89: First T1 Module lifting and installation for a modular tower (RTGM-B-S)
T1 Module
T1 Module
Figure A-90: Second T1 Module lifting and
installation for a modular tower (RTGM-B-S)
T1 Module
T1 Module
T1 Module
Figure A-91: Last T1 Module lifting and installation
for a modular tower (RTGM-B-S)
