2. Hardware Orientation

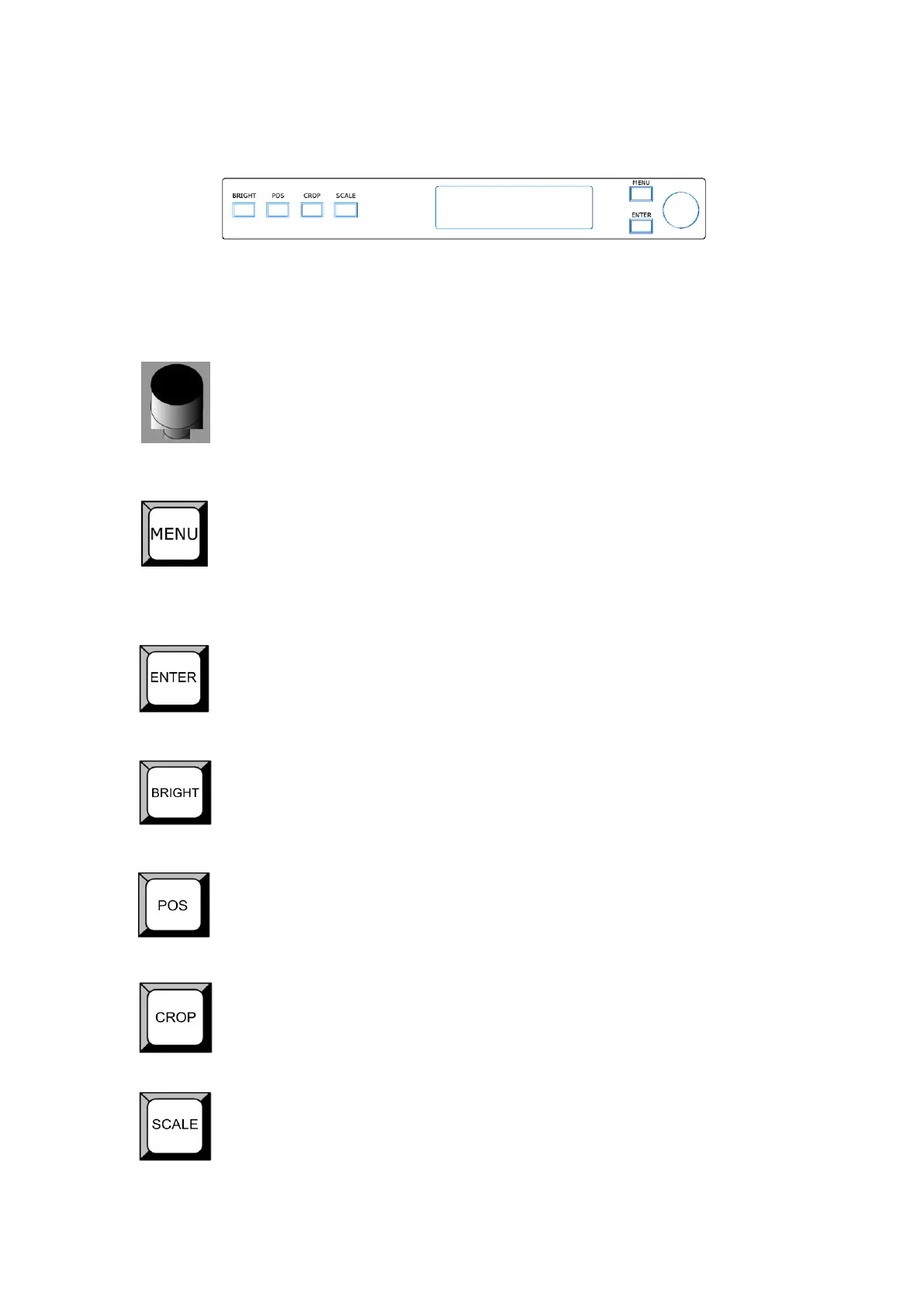

CP 3072 Front Panel
CP 3072 User Manual 30
Function Edit Area
OLED Panel, used for show button menu and menus for interactive
communication.
Knob, used to adjust OLED menu and information interaction and with the
same function with enter to confirm current options.
Menu button, push the button to enter the menu items. Turn the knob to
to select the relevant submenu.
For details, please refer to MENU in menu orientation.
Confirm button.
Push the button and turn the knob to adjust the brightness, the adjustment
range is 0~100.
Position adjustment button, push the button, the button light is on, turn the
knob to adjust the position of the image.
Crop button, push the button, the button light is on, turn the knob to crop the
size and position of the image.
Scale button. Push the button for scale control. Turn the knob, user can
change the size of the image. It is mainly used for LED display.
To Next Page
