2. Hardware Orientation

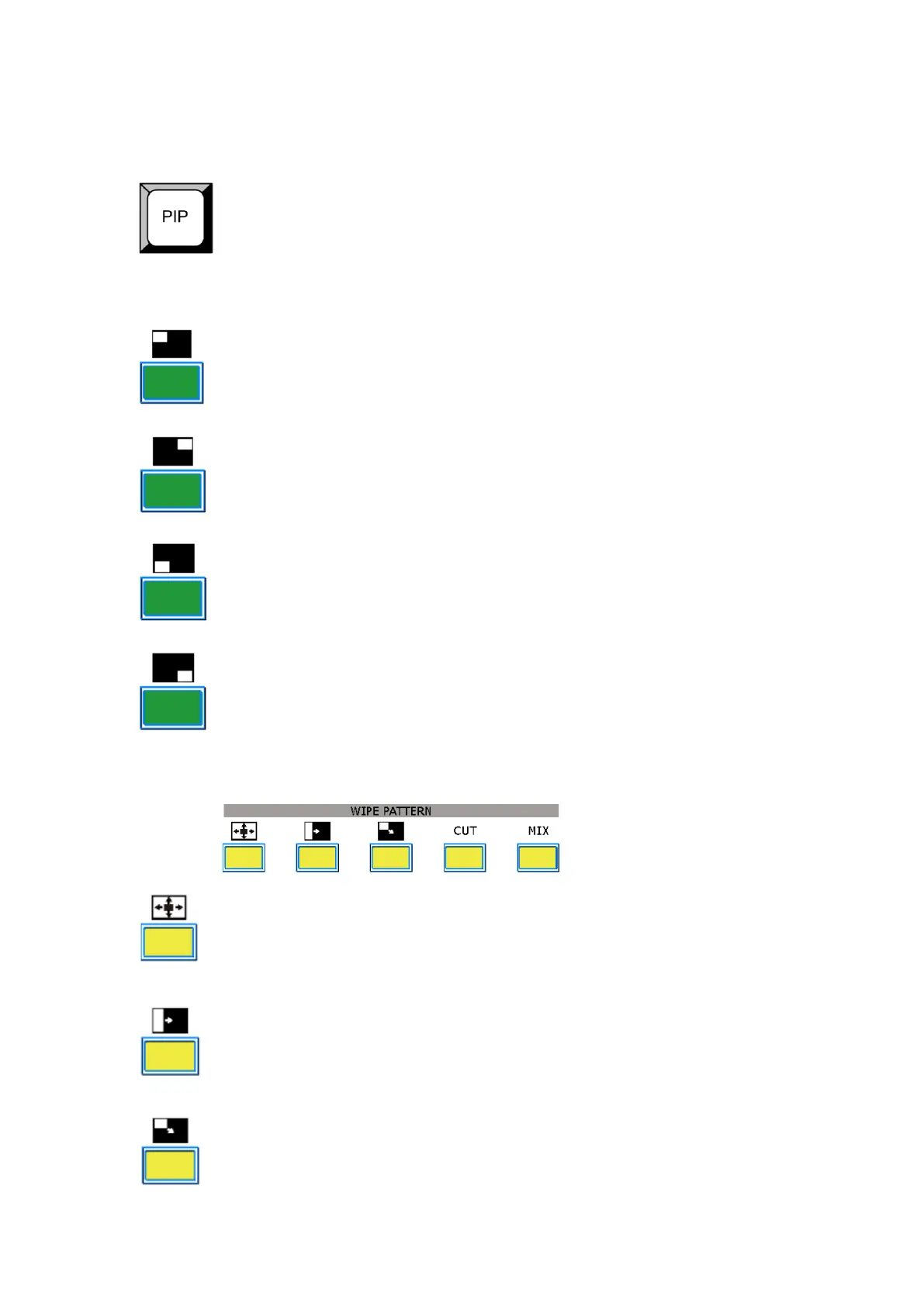

CP 3072 Front Panel
CP 3072 User Manual 34
PIP function button: Single or dual image selection button, push the button, its
LED light turns on, PIP function is open. Push the button again, its LED light
turns off, PIP function is close, and return to single image.
PIP layout shortcut button: PIP L+T.
PIP layout shortcut button: PIP R+T.
PIP layout shortcut button: PIP L+B.
PIP layout shortcut button: PIP R+B.
Effects Operation Area
Wipe pattern shortcut button, there are 5 kinds of mode: ←□→, →□←,
←＋→, →＋←, ←0→.
Wipe pattern shortcut button, there are 5 kinds of mode: L→R, L←R, T→B,
B→T, III→.
Wipe pattern shortcut button, there are 3 kinds of mode: LT→RB, L←M→R,
T←M→B.
